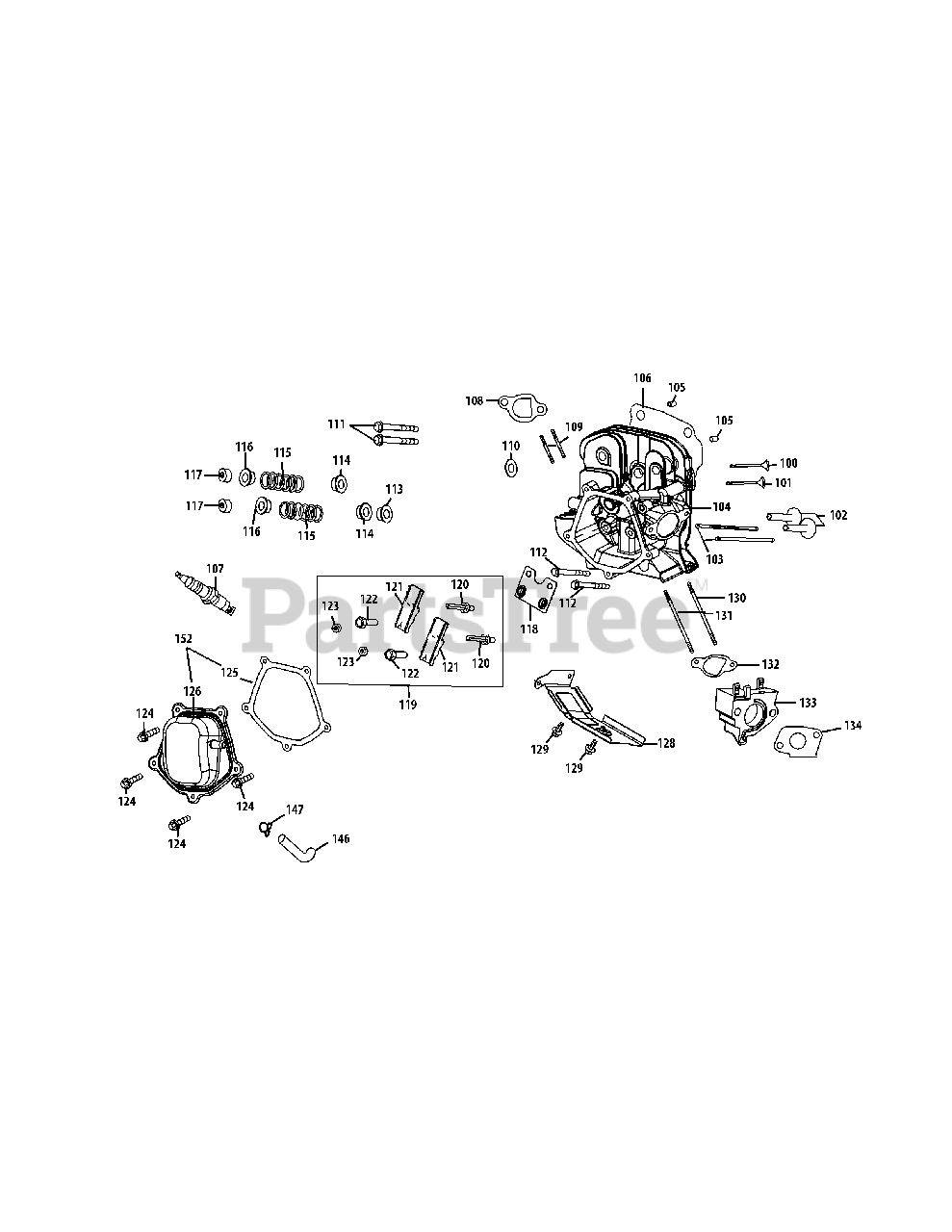

490-SU-10 Cylinder Head Parts Diagram

  • Title

100

MTD 951-11337

Exhaust Valve

$50.99

$

Usually ships in 3-6 days

0

101

MTD 951-11337

Intake Valve

$50.99

$

Usually ships in 3-6 days

0

102

MTD 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

Usually ships in 3-6 days

0

103

MTD 951-11335

Push Rod Kit

$24.99

$

In Stock, Qty 9

0

104

MTD 951-11361

Cylinder Head Ass'y

Note: (Incl. Ref No. 110,101,104,106,108,109,111-118,120-123,125,130-133)

$322.99

$

Usually ships in 3-6 days

0

105

MTD 715-04097

Dowel Pin 12×20

$6.49

$

Usually ships in 3-6 days

0

106

MTD 751-12094

Gasket, Cylinder Head
(Superseded to 951-12094)

$12.99

$

Usually ships in 3-6 days

0

107

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

108

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

109

MTD 710-04964

Muffler Stud M8×48.5

$6.49

$

In Stock, only 1 left!

0

110

MTD 951-11207

Muffler Stud Assembly

$8.49

$

Usually ships in 3-6 days

0

110

MTD 736-04550

Cupped Washer

$

$

Not available

111

MTD 710-05039

Head Bolt

$

$

Not available

112

MTD 710-05053

Bolt M10×1.25×87

$

$

Not available

113

MTD 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

In Stock, only 2 left!

0

114

MTD 751-12077

Valve Spring Retainer
(Superseded to 951-12077A)

$3.99

$

In Stock, only 2 left!

0

115

MTD 751-12078

Valve Spring
(Superseded to 951-12078)

$3.99

$

Usually ships in 3-6 days

0

116

MTD 751-12080

Retainer, Ex.Valve Spring
(Superseded to 951-12080)

$4.49

$

In Stock, Qty 20+

0

117

MTD 751-12081

Adjuster, Exh Valve
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

118

MTD 951-11965

Push Rod Guide
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

119

MTD 951-11981

Rocker Arm Assembly
(Superseded to 951-11981A)

$40.99

$

In Stock, only 1 left!

0

120

MTD 710-04962

Bolt, Pivot

$6.49

$

In Stock, only 1 left!

0

121

MTD 951-11966

Rocker Arm

$8.49

$

In Stock, only 2 left!

0

122

MTD 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

123

MTD 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

124

MTD 710-05054

Valve Cover Bolt

$6.49

$

In Stock, only 2 left!

0

125

MTD 951-11967

Valve Cover Gasket

$16.99

$

Usually ships in 3-6 days

0

126

MTD 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

128

MTD 951-11317

Cylinder Baffle

$27.99

$

Usually ships in 3-6 days

0

129

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

130

MTD 710-05055

Carb Stud M6-8×98

$5.99

$

Usually ships in 3-6 days

0

131

MTD 710-05056

Carb Stud M6-8×118

$6.99

$

Usually ships in 3-6 days

0

132

MTD 951-11315

Carburetor Insulator Gasket

$4.49

$

In Stock, only 3 left!

0

133

MTD 951-11353

Carburetor Insulator

$9.49

$

Usually ships in 3-6 days

0

134

MTD 951-11354

Carburetor Gasket

$5.49

$

In Stock, only 1 left!

0

146

MTD 951-11221

Breather Hose

$6.99

$

In Stock, only 1 left!

0

147

MTD 726-04101

Clamp

$4.49

$

Usually ships in 3-6 days

0

152

MTD 951-11333

Valve Cover Kit

$40.99

$

Usually ships in 3-6 days

0

MTD 951-11357

Cylinder Head Kit

Note: (Incl. Ref No. 106,111-113 & 125) Not shown

$

$

Not available

MTD 951-11363

Gasket Kit - External

Note: (Incl. Ref No. 79,108,125,132-134) Not shown

$34.99

$

Usually ships in 3-6 days

0

MTD 951-11362

Gasket Kit - Complete

Note: (Incl. Ref No. 53,60,65,79,81,106,108,125,132-134) Not shown

$63.99

$

Usually ships in 3-6 days

0

MTD 951-11360

Short Block Assembly

Note: (Incl. Ref No. 41-45,49-61,64-68,77-81,102,105,106,108,111,112,125,132 & 133) Not shown

$

$

Not available

MTD 952Z490-SU-10

Complete Engine
(Superseded to 952Z490-SUC)

Note: Not shown

$

$

Not available
