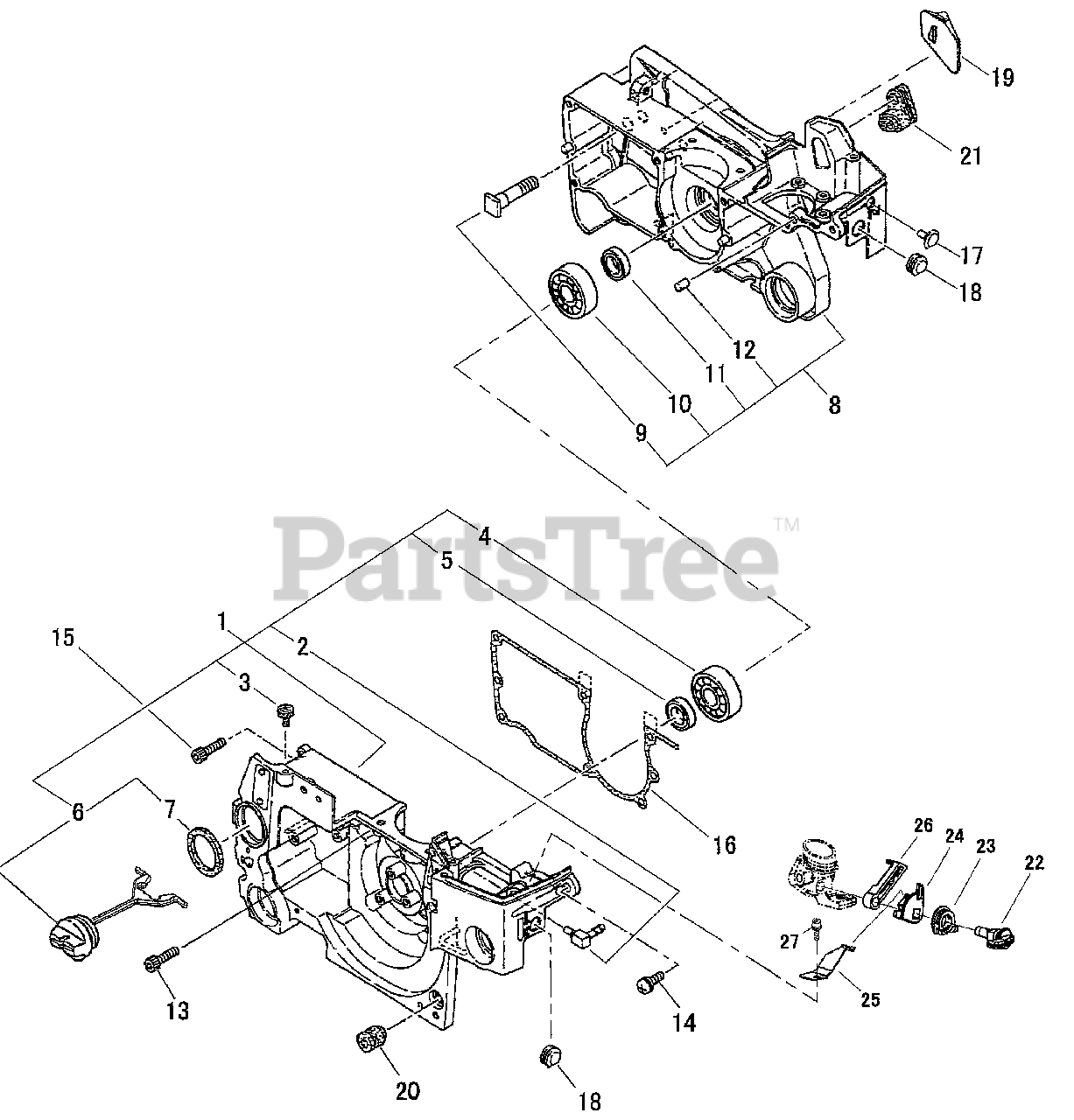

490 - Shindaiwa Chainsaw (EPA2 Version) Crankcase Parts Diagram

Chainsaw (EPA2 Version)

Crankcase Parts Diagram

  • Title
1

Echo 39309-21010

CRANKCASE ASSY - LEFT

$84.99

$

Usually ships in 2-4 days

0

2

Echo 22150-21220

CONNECTOR, PIPE
(Superseded to V185000000)

$6.49

$

Usually ships in 2-4 days

0

3

Echo 22115-57120

VALVE, OIL
(Superseded to A356000130)

$4.49

$

Usually ships in 2-4 days

0

4

Echo 1290062010

BEARING, BALL - 6201C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

5

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 7

0

6

Echo 39309-21030

CAP ASSY
(Superseded to C020000050)

$11.99

$

Usually ships in 2-4 days

0

7

Echo 39309-21250

GASKET
(Superseded to V107000060)

$5.99

$

In Stock, Qty 7

0

8

Echo 39309-21021

CRANKCASE ASSY - RIGHT

$76.99

$

Usually ships in 2-4 days

0

9

Echo 22160-21520

STUD, GUIDE BAR
(Superseded to V225000150)

$2.99

$

In Stock, only 2 left!

0

10

Echo 1290062010

BEARING, BALL - 6201C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

11

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 7

0

12

Echo 12492-50100

PIN - LOCATING

$2.49

$

Usually ships in 2-4 days

0

13

Echo 22157-21750

BOLT - 5X30

$1.49

$

Usually ships in 2-4 days

0

14

Echo 22157-21760

SCREW
(Superseded to V253000650)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 22157-12130

BOLT - 5X18
(Superseded to V203001600)

$0.99

$

In Stock, Qty 20+

0

16

Echo 22160-21720

GASKET, CRANKCASE
(Superseded to V102000170)

$2.49

$

Usually ships in 2-4 days

0

17

Echo 15270-02004

CLAMP - A

$

$

Not available

18

Echo 22160-22220

PLUG
(Superseded to V141000110)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 22160-22250

STOPPER
(Superseded to V420002820)

$4.99

$

Usually ships in 2-4 days

0

20

Echo 22160-33730

SUPPORT
(Superseded to V420002840)

$2.49

$

Usually ships in 2-4 days

0

21

$3.49

$

Usually ships in 2-4 days

0

22

Echo 69020-21311

SWITCH, IGNITION
(Superseded to C830000020)

$

$

Not available

23

$3.49

$

Usually ships in 2-4 days

0

24

$3.49

$

Usually ships in 2-4 days

0

25

Echo 69020-21341

PLATE, SPRING

$4.49

$

Usually ships in 2-4 days

0

26

Echo 69020-21351

CHOKE
(Superseded to A242000190)

$2.99

$

Usually ships in 2-4 days

0

27

Echo 11022-04100

SCREW - 4X10
(Superseded to V202000260)

$3.49

$

In Stock, only 2 left!

0
