490 - Shindaiwa Chainsaw (EPA2 Version) Clutch Parts Diagram

Chainsaw (EPA2 Version)

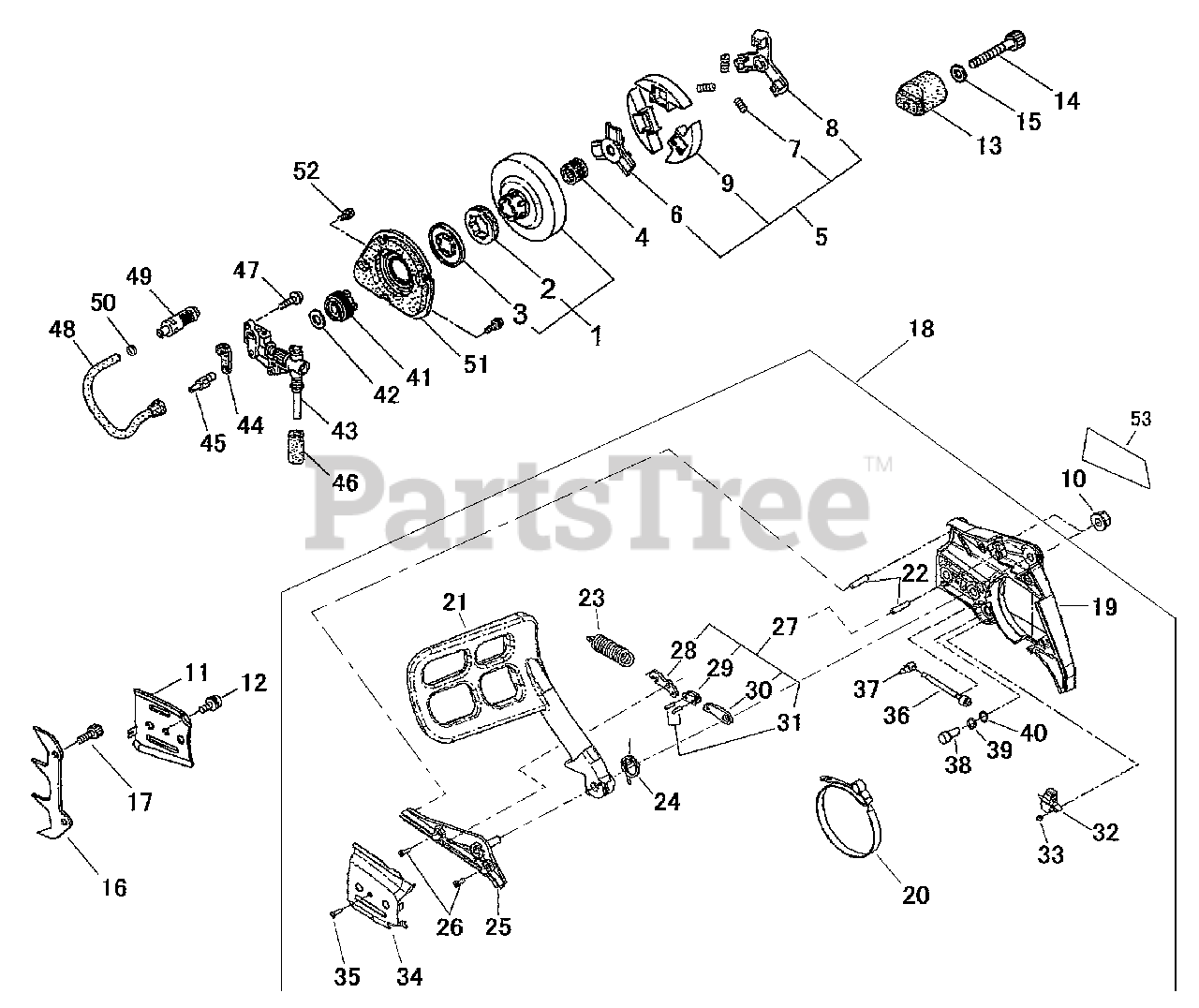

Clutch Parts Diagram

  • Title

1

Echo 22160-51501

CLUTCH ASSY
(Superseded to A055000100)

$63.99

$

In Stock, only 1 left!

0

2

Echo 22131-98120

SPROCKET, RIM
(Superseded to 17511412530)

$18.99

$

In Stock, Qty 8

0

3

Echo 22160-51530

COVER
(Superseded to V312000030)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 22100-51310

BEARING, NEEDLE
(Superseded to V555000150)

$13.99

$

In Stock, Qty 20+

0

5

Echo 22160-51200

CLUTCH ASSY
(Superseded to A056000620)

$25.99

$

In Stock, Qty 6

0

6

Echo 22160-51210

HUB, CLUTCH - INNER
(Superseded to A552000250)

$3.49

$

In Stock, only 1 left!

0

7

Echo 22160-51230

SPRING, CLUTCH
(Superseded to V451000940)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 22160-51240

HUB, CLUTCH - OUTER
(Superseded to A552000260)

$6.49

$

Usually ships in 2-4 days

0

9

Echo 22160-51220

SHOE, CLUTCH
(Superseded to A555000220)

$5.99

$

Usually ships in 2-4 days

0

10

Echo 22182-52411

NUT, GUIDE BAR
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

11

Echo 22160-97630

PLATE, GUIDE
(Superseded to C305000290)

$4.99

$

In Stock, only 1 left!

0

12

Echo 22173-56150

SCREW - 4X7
(Superseded to V252000470)

$0.99

$

In Stock, Qty 8

0

13

Echo 22160-52511

CATCHER, CHAIN
(Superseded to C310000080)

$2.49

$

In Stock, only 2 left!

0

14

Echo 22155-12190

BOLT - 5X25
(Superseded to V203001460)

$1.99

$

In Stock, only 3 left!

0

15

Echo 01611-05100

WASHER - 5
(Superseded to 9220305000)

$0.99

$

In Stock, Qty 6

0

16

Echo 22160-52530

SPIKE
(Superseded to C304000140)

$6.99

$

Usually ships in 2-4 days

0

17

Echo 22157-15330

BOLT
(Superseded to V203001500)

$0.99

$

In Stock, only 2 left!

0

18

Echo 69020-53010

CLUTCH COVER ASSY
(Superseded to P021029780)

$166.99

$

Usually ships in 2-4 days

0

19

Echo 69020-53111

COVER, CLUTCH
(Superseded to C300000710)

$20.99

$

Usually ships in 2-4 days

0

20

Echo 69020-53211

BAND, BRAKE
(Superseded to C328000240)

$36.99

$

Usually ships in 2-4 days

0

21

Echo 69020-53221

LEVER
(Superseded to C320000330)

$19.99

$

Usually ships in 2-4 days

0

22

Echo 12492-50210

PIN - LOCATING

$

$

Not available

23

Echo 17510-16000

SPRING, CLUTCH

$5.99

$

Usually ships in 2-4 days

0

24

Echo 17520-20000

SPRING

$2.49

$

Usually ships in 2-4 days

0

25

Echo 69020-53351

COVER

$11.99

$

Usually ships in 2-4 days

0

26

Echo 01280-05142

SCREW - 5X14 -- TAPPING
(Superseded to 9144905014)

$2.99

$

Usually ships in 2-4 days

0

27

Echo 69020-53360

LEVEL ASSY

$36.99

$

Usually ships in 2-4 days

0

28

Echo 69020-53311

LEVER - INNER

$

$

Not available

29

Echo 69020-53321

TIE, CABLE

$

$

Not available

30

Echo 69020-53331

LEVER

$

$

Not available

31

Echo 12492-30110

TIE, CABLE - 3X11.8
(Superseded to V629000010)

$0.99

$

Usually ships in 2-4 days

0

32

Echo 69020-52321

COVER
(Superseded to C233000070)

$20.99

$

Usually ships in 2-4 days

0

33

Echo 01270-03122

SCREW - 3X12 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

34

Echo 69020-53121

PLATE, GUIDE
(Superseded to C305000300)

$20.99

$

Usually ships in 2-4 days

0

35

Echo 22188-54120

SCREW -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

36

Echo 69020-52111

SCREW
(Superseded to V253000670)

$28.99

$

Usually ships in 2-4 days

0

37

Echo 69020-52121

SLIDE PIN
(Superseded to C309000120)

$3.99

$

Usually ships in 2-4 days

0

38

Echo 69020-52311

GEAR
(Superseded to V654000040)

$20.99

$

Usually ships in 2-4 days

0

39

Echo 02304-00702

O-RING
(Superseded to 9250800702)

$0.99

$

Usually ships in 2-4 days

0

40

Echo 11620-10002

WASHER
(Superseded to V305000030)

$0.99

$

Usually ships in 2-4 days

0

41

Echo 22154-55110

GEAR
(Superseded to V652000170)

$1.99

$

In Stock, only 3 left!

0

42

Echo 22154-55120

WASHER, THRUST
(Superseded to V307000330)

$1.99

$

In Stock, only 4 left!

0

43

Echo 22160-55200

AUTO-OILER ASSY
(Superseded to C022000130)

$66.99

$

In Stock, only 1 left!

0

44

Echo 22150-55411

GASKET, PUMP
(Superseded to V112000000)

$2.49

$

In Stock, only 2 left!

0

45

Echo 22160-55420

CONNECTOR
(Superseded to V186000350)

$2.49

$

In Stock, only 1 left!

0

46

Echo 22155-55430

FILTER
(Superseded to V418000010)

$1.99

$

In Stock, only 2 left!

0

47

Echo 11205-04160

SCREW - 4X16
(Superseded to 9157304016)

$0.99

$

Usually ships in 2-4 days

0

48

Echo 22160-55310

PIPE - OIL
(Superseded to V470001550)

$6.99

$

In Stock, only 1 left!

0

49

Echo 22169-57360

FILTER, OIL
(Superseded to C209000080)

$9.99

$

Usually ships in 2-4 days

0

50

Echo 22100-57370

CLIP
(Superseded to V490000740)

$0.99

$

Usually ships in 2-4 days

0

51

Echo 72317-56100

COVER
(Superseded to C236000090)

$25.99

$

Usually ships in 2-4 days

0

52

Echo 22160-56150

SCREW
(Superseded to V252000460)

$0.99

$

In Stock, only 3 left!

0

53

Echo 69020-91330

LABEL - MODEL 490

$2.99

$

Usually ships in 2-4 days

0
