490-241-0032 - Troy-Bilt Snow Cab General Assembly Parts Diagram

Snow Cab

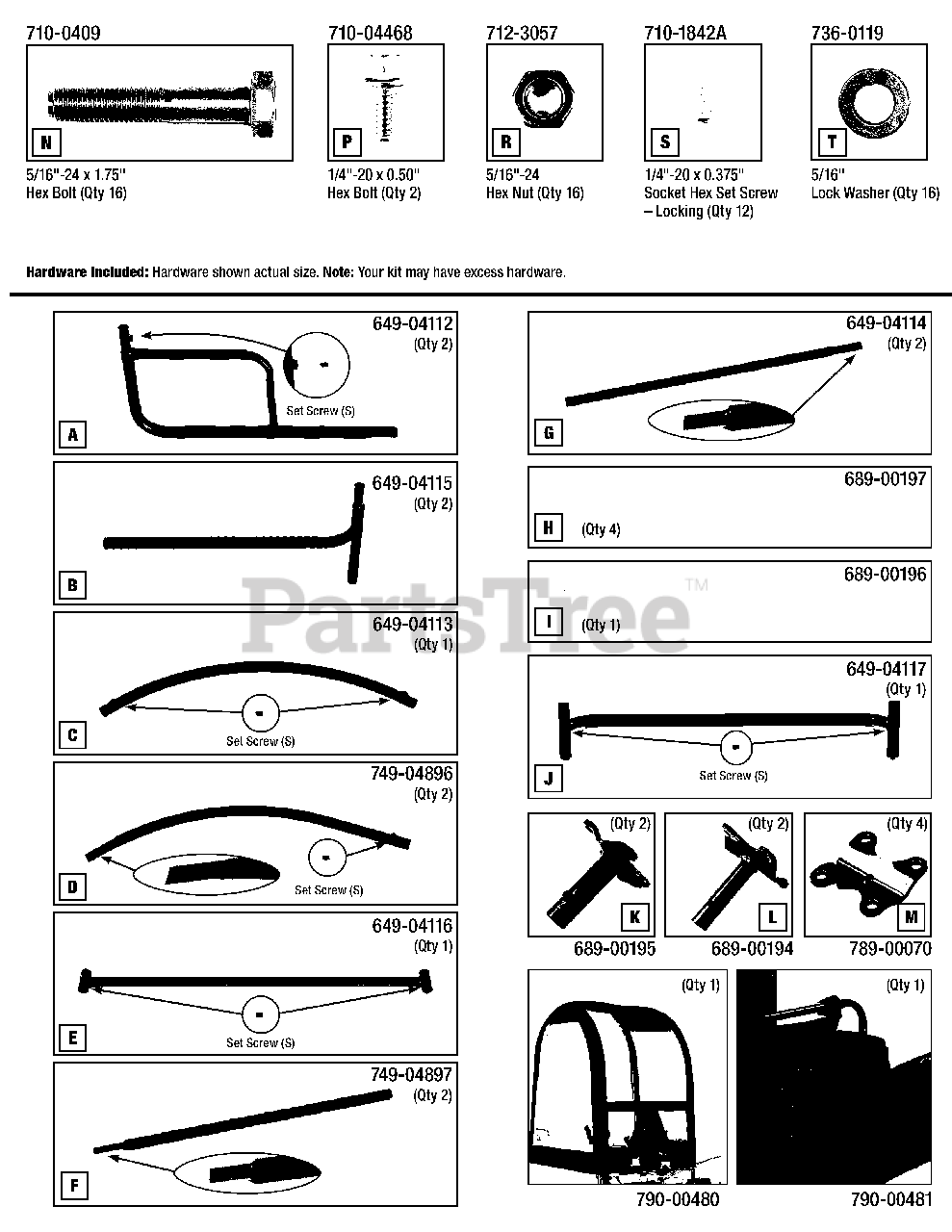

General Assembly Parts Diagram

  • Title

A

Troy-Bilt 649-04112

REAR CORNER BAR

$17.99

$

Usually ships in 3-6 days

0

B

Troy-Bilt 649-04115

BAR-FRONT CORNER

$18.99

$

Usually ships in 3-6 days

0

C

Troy-Bilt 649-04113

ARC CENTER BAR

$8.49

$

Usually ships in 3-6 days

0

D

Troy-Bilt 749-04896

ARC END BAR LH & RH

$15.99

$

Usually ships in 3-6 days

0

E

MTD 649-04116

CROSSBAR POLE

$

$

Not available

F

Troy-Bilt 749-04897

POLE-UPRIGHT FRONT

$6.99

$

Usually ships in 3-6 days

0

G

Troy-Bilt 649-04114

POLE-UPRIGHT REAR

$6.99

$

Usually ships in 3-6 days

0

H

Troy-Bilt 689-00197

FEXIBLE ROD

$11.99

$

In Stock, only 2 left!

0

I

Troy-Bilt 689-00196

FLEXIBLE ROD-CENTE

$4.49

$

In Stock, only 2 left!

0

J

Troy-Bilt 649-04117

MOUNTING BAR

Variations

Troy-Bilt 649-04117-0637

MOUNTING BAR - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

K

Troy-Bilt 689-00195

TUBE/CLAMP ASM-FEM

$8.99

$

Usually ships in 3-6 days

0

L

Troy-Bilt 689-00194

TUBE/CLAMP ASM-MAL

$8.99

$

Usually ships in 3-6 days

0

M

Troy-Bilt 789-00070

CLAMP PLATE
(Superseded to 789-00070-0637)

Variations

Troy-Bilt 789-00070-0637

CLAMP PLATE - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

N

Troy-Bilt 710-0409

SCREW-HEX 5/16-24

$4.99

$

Usually ships in 3-6 days

0

P

Troy-Bilt 710-04468

SCREW-HEX FLANGE

$4.49

$

Usually ships in 3-6 days

0

R

Troy-Bilt 912-3057

NUT-5/16X 24

$6.99

$

In Stock, only 2 left!

0

S

Troy-Bilt 710-1842A

SCREW-SET PATCH LOC 1/4-20 X .38

$5.49

$

In Stock, only 1 left!

0

T

Troy-Bilt 936-0119

WASHER-LOCK 5/16

$4.99

$

In Stock, Qty 20+

0

Troy-Bilt 790-00480

COVER, SNOW CAB

$116.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00481

POUCH, SNOW CAB

$

$

Not available
