490-241-0009 - Troy-Bilt Snow Thrower Light Service Parts Parts Diagram

Snow Thrower Light

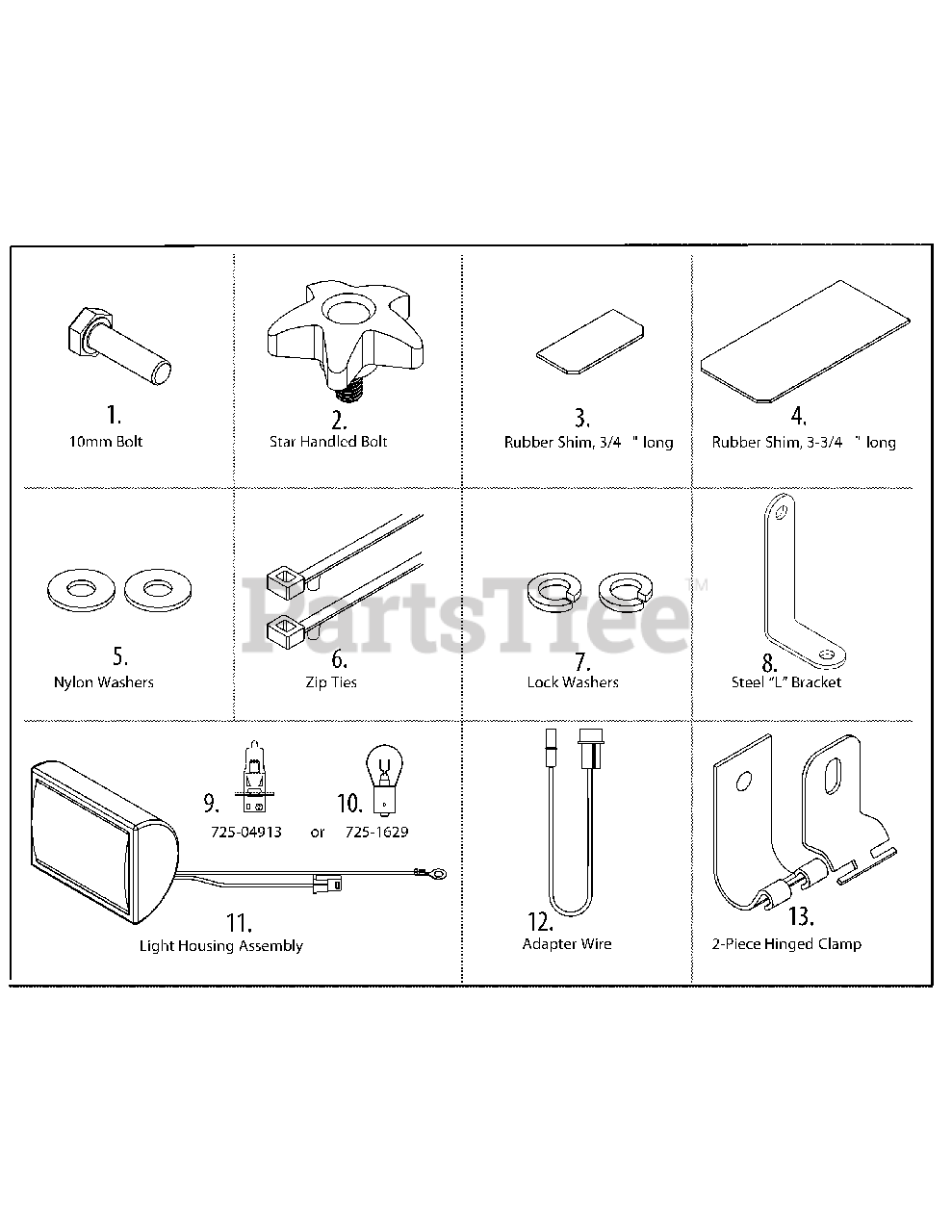

Service Parts Parts Diagram

  • Title

1

MTD 710-1313

Bolt

$3.99

$

Usually ships in 3-6 days

0

2

N/A

Star Handled Bolt

Note: Not Available Separately, order 753-05959

$

$

Not available

3

N/A

Rubber Shim 3/4" Long

Note: Not Available Separately, order 753-05959

$

$

Not available

4

N/A

Rubber Shim 3-3/4" Long

Note: Not Available Separately, order 753-05959

$

$

Not available

5

N/A

Nylon Washers

Note: Not Available Separately, order 753-05959

$

$

Not available

6

Troy-Bilt 926-0240

Zip Ties
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 936-0171

Lock Washers
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

8

N/A

Steel "L" Bracket

Note: Not Available Separately, order 753-05959

$

$

Not available

9

Troy-Bilt 725-04913

Light Bulb 15w
(Superseded to 925-04913B)

$10.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 725-1629

Light Bulb 12Volt
(Superseded to 925-1629)

$11.99

$

In Stock, Qty 13

0

11

Troy-Bilt 925-04848

Light Housing Assembly

$62.99

$

Usually ships in 3-6 days

0

12

MTD 925-04872

Adapter Wire

Note: For use on Tecumseh & Briggs Engines

$

$

Not available

13

N/A

2-Piece Hinged Clamp

Note: Not Available Separately, order 753-05959

$

$

Not available

13

N/A

2-Piece Hinged Clamp

Note: Not Available Separately, order 753-05959

$

$

Not available
