48875 - Gravely 60" Deck for Pro-Master 400 Mower MOWER DRIVE Parts Diagram

60" Deck for Pro-Master 400 Mower

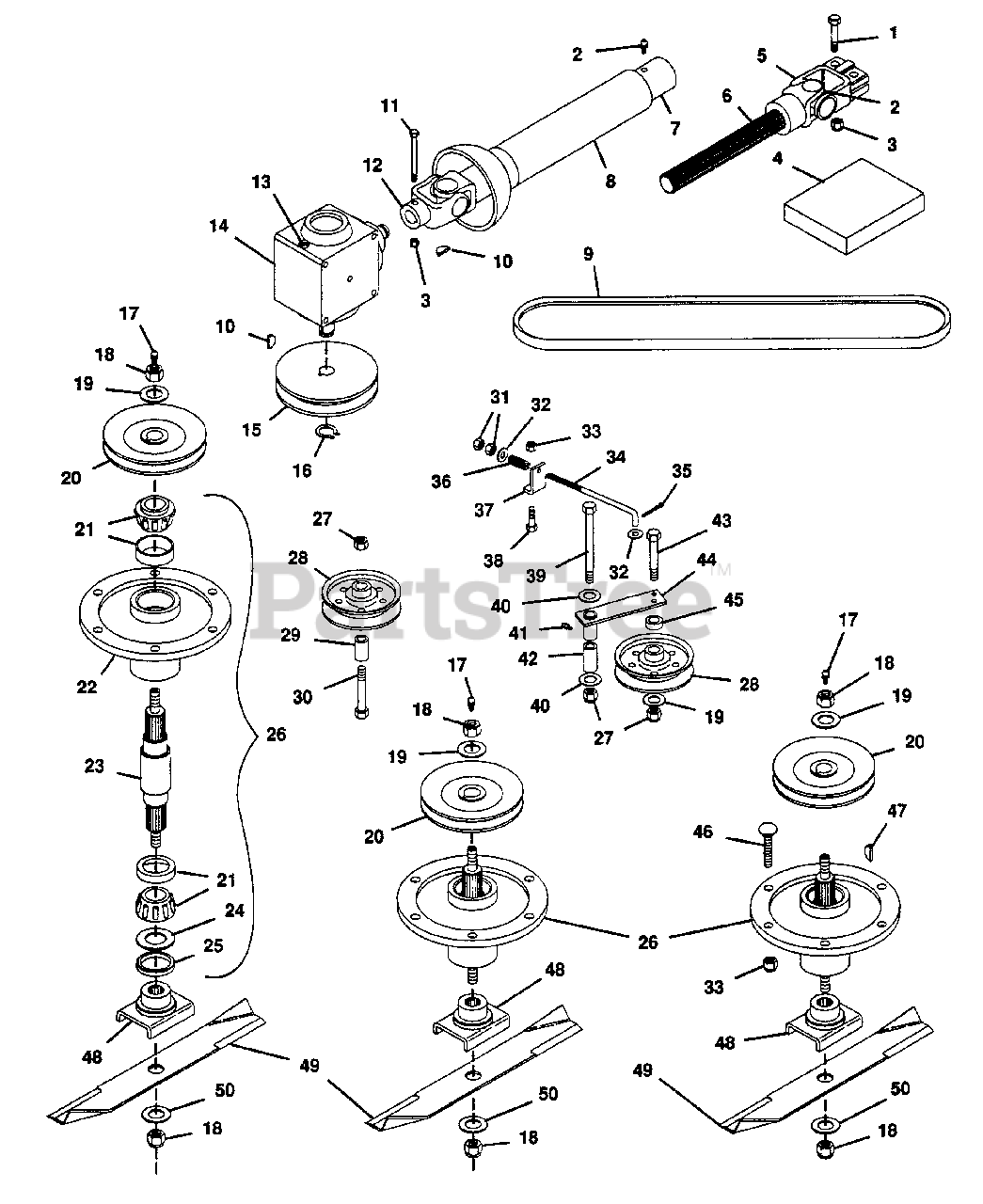

MOWER DRIVE Parts Diagram

  • Title
1

Gravely 180085

Bolt, Hex 5/16-18x1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

2

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

3

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 024560

Kit, Repair U-Joint
(Superseded to 03155800)

$

$

Not available

5

Gravely 051526

Yoke
(Superseded to 09005300)

$362.99

$

Usually ships in 4-12 days

0

6

Gravely 049982

Assembly, U-Joint Male
(Superseded to 08993000)

$242.38

$

Usually ships in 4-12 days

0

7

Gravely 049981

Assembly, U-Joint Female
(Superseded to 08992900)

$183.86

$

Usually ships in 4-12 days

0

8

Gravely 048655

Cover, U-Joint

$

$

Not available

9

Gravely 049066

Belt, Vee 60" Mower
(Superseded to 07222500)

$

$

Not available

10

Gravely 124551

Key, Woodruff .25x.875 Hard #A
(Superseded to 06608800)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 180089

Bolt, Hex 5/16-18x2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 045955

Yoke
(Superseded to 20823300)

$

$

Not available

13

Gravely 048596

Plug, 1/8 Vent
(Superseded to 08984600)

$

$

Not available

14

Gravely 044800

Gearbox, Right Angle 1:1
(Superseded to 08956151)

$

$

Not available

15

Gravely 044896

Sheave, Gear Box
(Superseded to 08957500)

$

$

Not available

16

Gravely 022080

Ring, Retaining .875 Shaft
(Superseded to 05713900)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

18

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 033845

Washer, Flat .687x1.312x.122
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 048874

Weldment, Spindle Sheave
(Superseded to 08781900)

$180.99

$

Usually ships in 4-12 days

0

21

Gravely 038199

Assembly, Bearing
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

22

Gravely 044898

Housing, Bearing
(Superseded to 08957700)

$

$

Not available

23

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

In Stock, only 1 left!

0

24

Gravely 020743

Washer, Flat .975x1.970x.030
(Superseded to 06426900)

$5.99

$

In Stock, Qty 11

0

25

Gravely 021211

Seal, Steel
(Superseded to 08722600)

$15.99

$

In Stock, only 1 left!

0

26

Gravely 044899

Assembly, Spindle

$

$

Not available

27

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 022063

Pulley, Flat Idler
(Superseded to 07316700)

$63.99

$

In Stock, only 2 left!

0

29

Gravely 044909

Bush., St. .562x.975x1.00 Stl.
(Superseded to 08980600)

$25.99

$

Usually ships in 4-12 days

0

30

Gravely 180188

Bolt, Hex 1/2-13x2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

31

Gravely 120369

Nut, Hex 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

32

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 046264

Rod, Idler
(Superseded to 08656800)

$64.99

$

Usually ships in 4-12 days

0

35

Gravely 121222

Pin, Cotter .094x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

36

Gravely 011779

Spring, Comp. 1x.78x338
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

37

Gravely 031346

Support, Spring ÒB"
(Superseded to 08905100)

$16.99

$

Usually ships in 4-12 days

0

38

Gravely 180123

Bolt, Hex 3/8-16x1.125

$

$

Not available

39

Gravely 180193

Bolt, Hex 1/2-13x3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

40

Gravely 120389

Washer, Flat .500x1.250x.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

41

Gravely 014406

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

42

Gravely 031363

Bush., St. .505x.855x2.50 Stl.
(Superseded to 08826500)

$51.99

$

Usually ships in 4-12 days

0

43

Gravely 180181

Bolt, Hex 1/2-13x2.00
(Superseded to 05901929)

$

$

Not available

44

Gravely 046809

Weldment, Idler Pivot
(Superseded to 08979400)

$150.99

$

In Stock, only 1 left!

0

45

Gravely 031368

Bush., St. .516x.875x.300 Stl.
(Superseded to 09036100)

$36.99

$

Usually ships in 4-12 days

0

46

Gravely 126406

Bolt, 3/8-16x1.375 Rd Hd Sq Nk
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

47

Gravely 124553

Key, Woodruff .25x1.00 Hard #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

48

Gravely 047684

Weldment, Blade Cradle
(Superseded to 08798700)

$124.99

$

Usually ships in 4-12 days

0

49

Gravely 048864

Blade
(Superseded to 08781800)

$30.99

$

In Stock, Qty 6

0

50

Gravely 131016

Washer, Flat .656x1.312x.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0
