48875 - Gravely 60" Deck for Pro-Master 400 Mower MOWER DECK Parts Diagram

60" Deck for Pro-Master 400 Mower

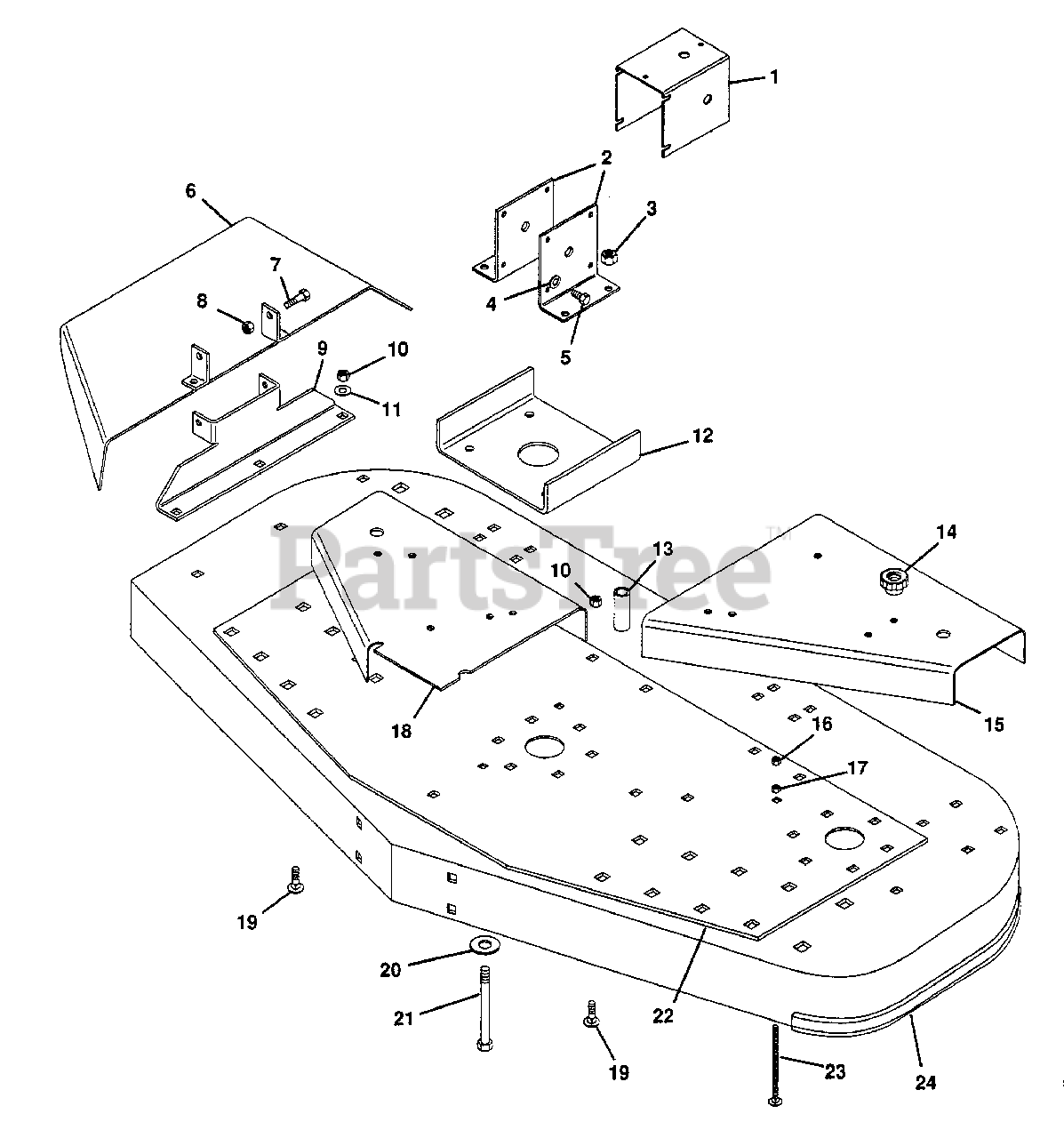

MOWER DECK Parts Diagram

  • Title

1

Gravely 047332

Shield, U-Joint
(Superseded to 08981900)

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 049079

Bracket, Gearbox Mounting
(Superseded to 08986700)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

6

Gravely 048967

Weldment, Discharge Chute
(Superseded to 08782100)

$

$

Not available

7

Gravely 180021

Bolt, Hex 1/4-20x.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 049649

Bracket, Discharge
(Superseded to 08990400)

$54.99

$

Usually ships in 4-12 days

0

10

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 049080

Plate, Support
(Superseded to 09064400)

$

$

Not available

13

Gravely 044905

Bushing, St. .532x1.0x2.00 Stl.
(Superseded to 08981000)

$27.99

$

Usually ships in 4-12 days

0

14

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 049334

Cover, Belt Silkscreen
(Superseded to 08988500)

$34.99

$

Usually ships in 4-12 days

0

16

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 124824

Nut, Jam 5/16-18 Hex
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 049331

Cover, Belt R.H.
(Superseded to 09090100)

$20.99

$

Usually ships in 4-12 days

0

19

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

20

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 180193

Bolt, Hex 1/2-13x3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 049090

Plate, Deck Support
(Superseded to 08986900)

$

$

Not available

23

Gravely 040546

Bolt, 5/16-16x4.0 Rd Hd Sq Nk
(Superseded to 06222500)

$3.99

$

In Stock, only 3 left!

0

24

Gravely 049332

Weldment, 60" Mower Deck
(Superseded to 08988700)

$

$

Not available

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

Gravely 049720

Decal, Width of Cut
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

Gravely 046263

Decal, Belt Diagram
(Superseded to 05212900)

$

$

Not available
