48875 - Gravely 60" Deck for Pro-Master 400 Mower GEARBOX Parts Diagram

60" Deck for Pro-Master 400 Mower

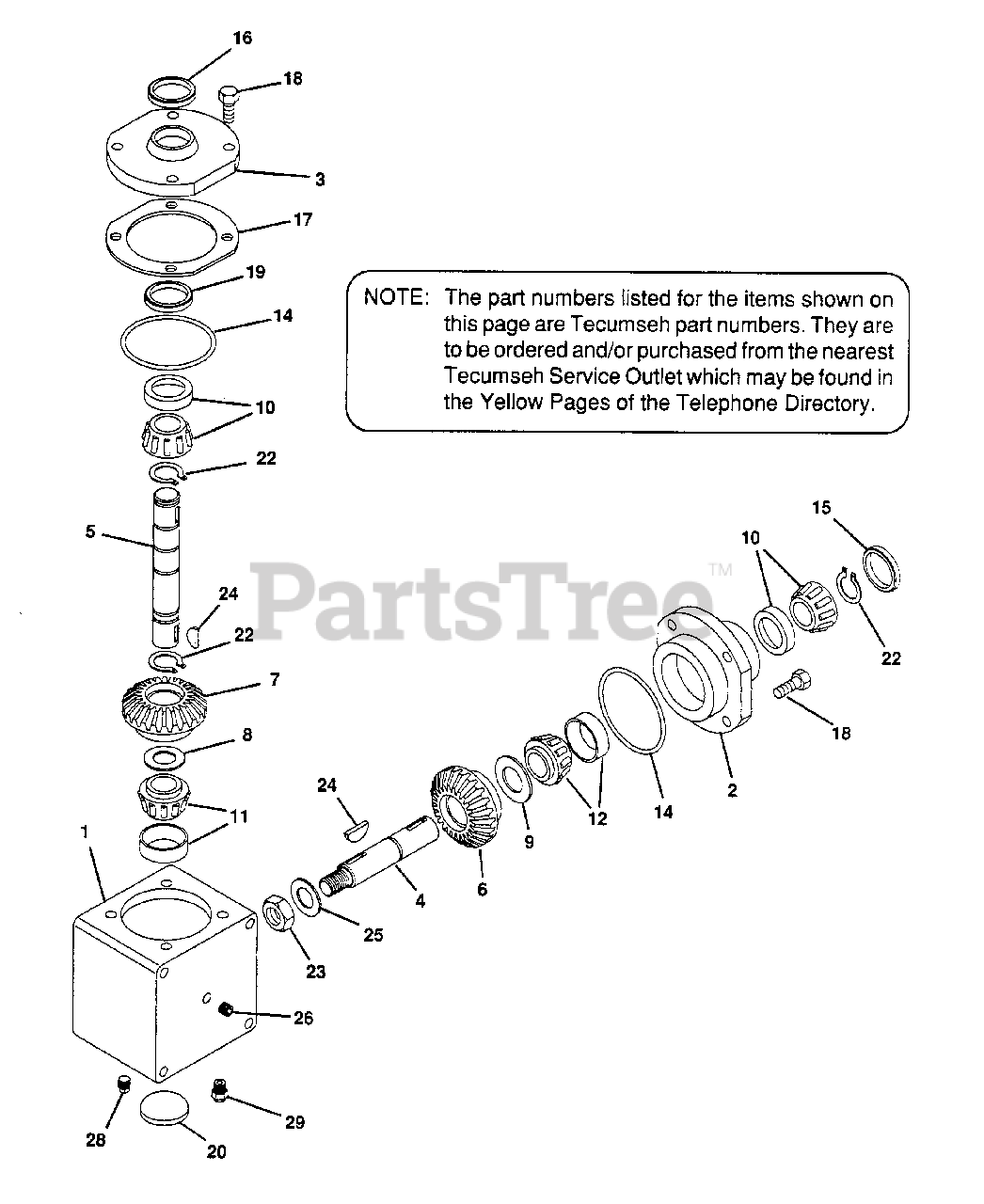

GEARBOX Parts Diagram

  • Title

1

Gravely 770076

HOUSING, RIGHT ANGLE DRIVE

$

$

Not available

2

Gravely 786104A

CAP, RETAINER

$

$

Not available

3

Gravely 786105

CAP, RETAINER

$

$

Not available

4

Gravely 776281

SHAFT, INPUT(5.38" LONG)

Note: (5.38" LONG)

$

$

Not available

5

Gravely 776292

SHAFT, OUTPUT(7.89" LONG)

Note: (7.89" LONG)

$

$

Not available

6

Gravely 778168

GEAR, SPIRAL BEVEL(25 TEETH)

Note: (25 TEETH)

$

$

Not available

7

Gravely 778172

GEAR, SPIRAL BEVEL(26 TEETH)

Note: (26 TEETH)

$

$

Not available

8

Gravely 780131

SHIM(1-1/2" O.D. X 1-1/64" I.D.X.002 THICK)(USE AS REQUIRED)

Note: (1-1/2" O.D. X 1-1/64" I.D.X.002 THICK)(USE AS REQUIRED)

$

$

Not available

9

Gravely 780138

SHIM(2.000" O.D.X1.531"I.D.X.002 THICK)(USE AS REQUIRED)

Note: (2.000" O.D.X1.531"I.D.X.002 THICK)(USE AS REQUIRED)

$

$

Not available

10

Gravely 780132

BEARING & CUP ASSY

$

$

Not available

11

Gravely 780132

BEARING & CUP ASSY

$

$

Not available

12

Gravely 780134

BEARING & CUP ASSY.

$

$

Not available

14

Gravely 788063

"O" RING

$

$

Not available

15

Gravely 788064

SEAL, OIL

$

$

Not available

16

Gravely 788065

SEAL, OIL

$

$

Not available

17

Gravely 780136

SHIM,CAP RETAINER

$

$

Not available

18

Gravely 792037

SCREW, HEX HEAD, SEMS, 5/16-18X1

$

$

Not available

19

Gravely 780137

RING, LOAD

$

$

Not available

22

Gravely 792113

RING, RETAINING

$

$

Not available

23

Gravely 792110

JAM NUT, 3/4-16

$

$

Not available

24

Gravely 792114

KEY, WOODRUFF

$

$

Not available

25

Gravely 792115

WASHER, FLAT

$

$

Not available

26

Gravely 792116

PLUG, PIPE 1/4-18

$

$

Not available

28

Gravely 792039

PLUG, PIPE 1/8-27

$

$

Not available

29

Gravely 792118

VALVE, RELIEF

$

$

Not available
