488 - Shindaiwa Chainsaw (SN: C57220001001 - C57220999999) Cylinder / Muffler Parts Diagram

Chainsaw

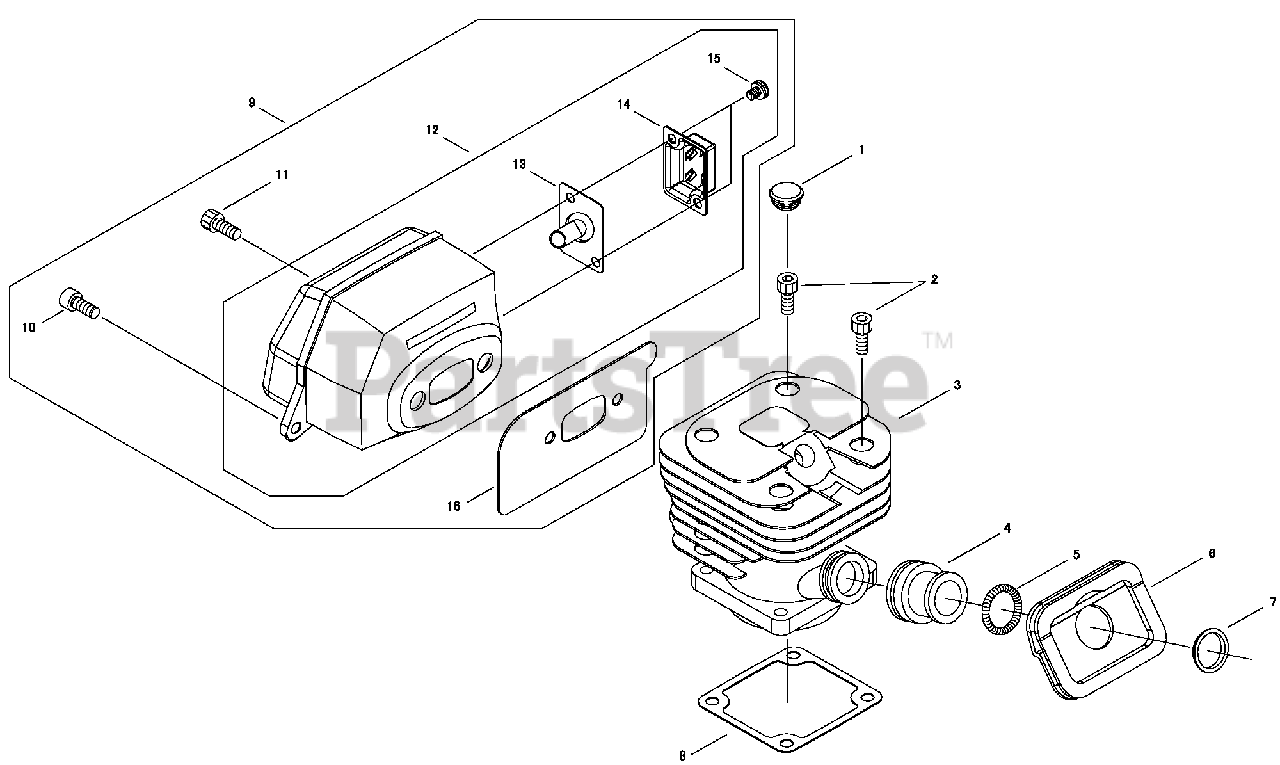

Cylinder / Muffler Parts Diagram

  • Title

1

Echo V141000110

PLUG

Note: 22160-22220

$0.99

$

Usually ships in 2-4 days

0

2

Echo V203001600

BOLT

Note: 22157-12130

$0.99

$

In Stock, Qty 20+

0

3

Echo A130001820

CYLINDER
(Superseded to A130002080)

Note: 22157-12110

$142.99

$

Usually ships in 2-4 days

0

4

Echo A202000160

SEAL

Note: 22160-12150

$15.99

$

Usually ships in 2-4 days

0

5

Echo V451000900

SPRING

Note: 22160-12160

$0.99

$

In Stock, only 1 left!

0

6

Echo V541000280

SEAL

Note: 22160-12170

$5.49

$

Usually ships in 2-4 days

0

7

Echo V359000210

SLEEVE

Note: 22115-14140

$1.99

$

Usually ships in 2-4 days

0

8

Echo V100000550

GASKET, CYLINDER

Note: 22160-12121

$1.99

$

In Stock, only 3 left!

0

9

Echo P021032170

MUFFLER ASSY

Note: 72311-15001

$69.99

$

Usually ships in 2-4 days

0

10

Echo V203001500

BOLT

Note: 22157-15330

$0.99

$

In Stock, only 2 left!

0

11

Echo V203001600

BOLT

Note: 22157-12130

$0.99

$

In Stock, Qty 20+

0

12

Echo A030000550

MUFFLER SUB ASSY

Note: 72311-15101

$59.99

$

Usually ships in 2-4 days

0

13

Echo A310000300

SCREEN, SPARK ARRESTOR

Note: 72311-15190

$2.99

$

In Stock, only 2 left!

0

14

Echo A313001570

GUIDE, EXHAUST

Note: 72311-15210

$4.99

$

Usually ships in 2-4 days

0

15

Echo 9157804006

SCREW - 4X6

Note: 11203-04060

$0.99

$

In Stock, Qty 16

0

16

Echo V104001590

GASKET, EXHAUST

Note: 22160-15311

$2.99

$

Usually ships in 2-4 days

0
