488 - Shindaiwa Chainsaw (SN: C57220001001 - C57220999999) Cover / Handle Parts Diagram

Chainsaw

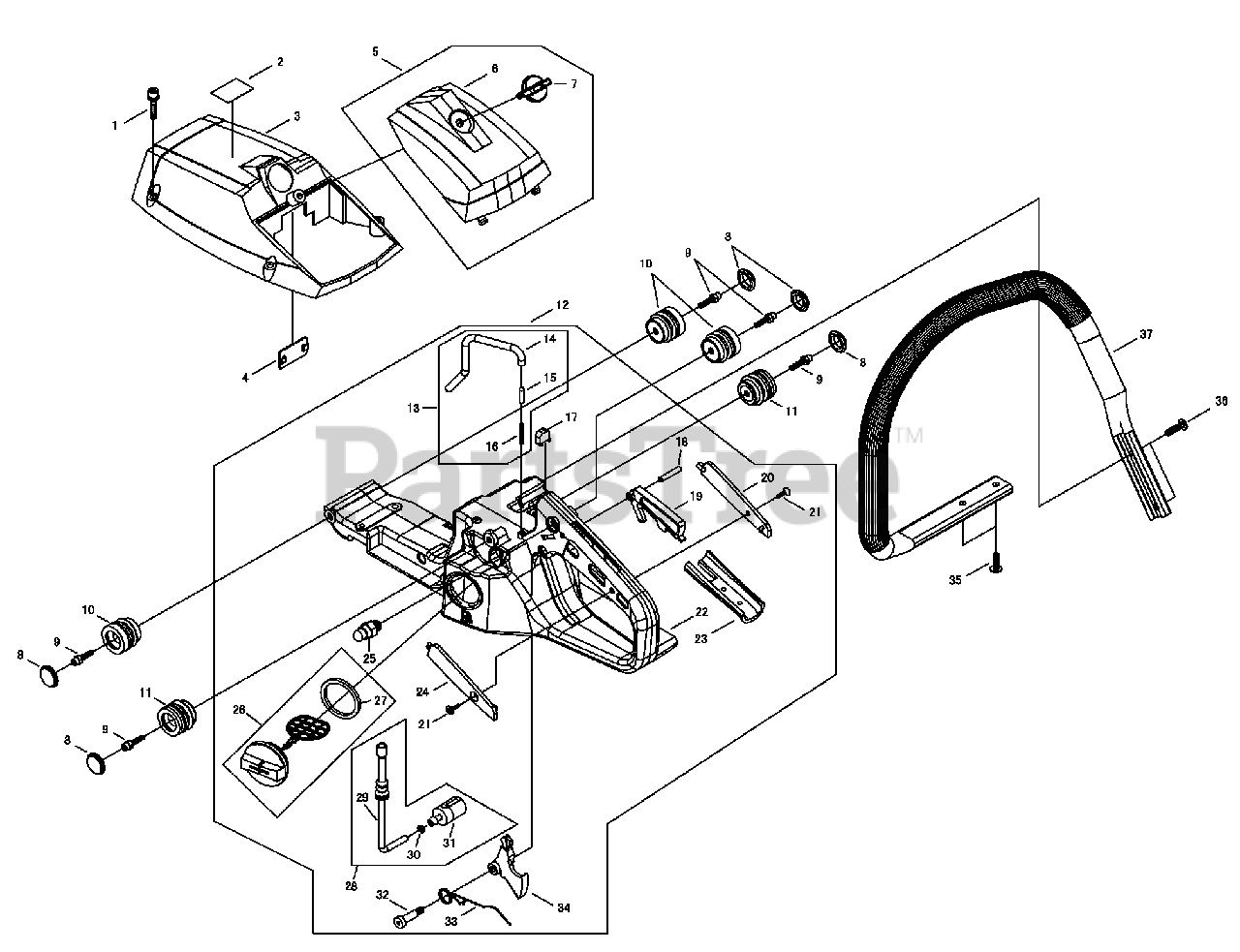

Cover / Handle Parts Diagram

  • Title

1

Echo V203001640

BOLT

Note: 22160-31150

$1.99

$

In Stock, Qty 5

0

2

Echo 89034539230

LABEL - CAUTION
(Superseded to 89034539231)

Note: 52145-11990

$2.99

$

Usually ships in 2-4 days

0

3

Echo A160002080

COVER, ENGINE

Note: 22160-31110

$16.99

$

Usually ships in 2-4 days

0

4

Echo A219000050

PLUG

Note: 22160-31120

$1.49

$

Usually ships in 2-4 days

0

5

Echo P021034390

AIR FILTER COVER ASSY

Note: 22157-82500

$16.99

$

Usually ships in 2-4 days

0

6

Echo A232001210

COVER, AIR FILTER

Note: 22157-82510

$12.99

$

Usually ships in 2-4 days

0

7

Echo A235000280

THUMBSCREW

Note: 22155-82520

$4.99

$

In Stock, only 1 left!

0

8

Echo V421000050

CAP, CUSHION

Note: 22160-33720

$0.99

$

In Stock, Qty 13

0

9

Echo V203001480

BOLT

Note: 22160-33770

$2.99

$

In Stock, Qty 19

0

10

Echo V401000350

CUSHION

Note: 22160-33710

$6.49

$

In Stock, Qty 20+

0

11

Echo V401000360

CUSHION

Note: 22130-97810

$9.99

$

In Stock, only 2 left!

0

12

Echo C041000350

REAR HANDLE SUB ASSY
(Superseded to P021040760)

Note: 22160-33104

$147.99

$

Usually ships in 2-4 days

0

13

Echo A039000030

VENT, FUEL TANK

Note: 22160-33901

$8.99

$

Usually ships in 2-4 days

0

14

Echo V470001480

PIPE - VENT

Note: 22160-33910

$2.49

$

In Stock, Qty 7

0

15

Echo E615000000

ELEMENT

Note: 22157-33950

$2.49

$

In Stock, only 3 left!

0

16

Echo V450001140

SPRING

Note: 22160-33920

$0.99

$

In Stock, only 3 left!

0

17

Echo V420002830

STOPPER R
(Superseded to V420002831)

Note: 22160-33590

$4.49

$

In Stock, Qty 13

0

18

Echo 9306040250

PIN - SPRING -- 4X25

Note: 12420-40255

$0.99

$

In Stock, only 2 left!

0

19

Echo C460000320

LEVER, LOCK

Note: 22160-33360

$2.49

$

Usually ships in 2-4 days

0

20

Echo C403000550

PLATE - RIGHT

Note: 22160-33320

$1.99

$

Usually ships in 2-4 days

0

21

Echo V252000480

SCREW
(Superseded to Discontinued)

Note: 11202-40120

$

$

Not available

22

Echo C041000451

HANDLE - REAR

Note: 22157-33200

$

$

Currently unavailable

23

Echo C403000540

GRIP

Note: 22160-33310

$5.49

$

Usually ships in 2-4 days

0

24

Echo C403000560

PLATE - LEFT

Note: 22160-33330

$1.99

$

Usually ships in 2-4 days

0

25

Echo C461000100

LOCK, THROTTLE

Note: 22160-33401

$3.99

$

In Stock, only 1 left!

0

26

Echo A033000220

CAP ASSY
(Superseded to A033000380)

Note: 39309-32040

$8.99

$

In Stock, only 3 left!

0

27

Echo V107000070

GASKET, CAP

Note: 39309-32270

$5.99

$

Usually ships in 2-4 days

0

28

Echo A034000160

FUEL PIPE ASSY
(Superseded to A034000161)

Note: 22160-34100

$13.99

$

Usually ships in 2-4 days

0

29

Echo V470001490

PIPE - FUEL

Note: 22160-34110

$12.99

$

In Stock, Qty 20+

0

30

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 20+

0

31

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: 22115-85401

$9.49

$

In Stock, Qty 20+

0

32

Echo V203001520

BOLT

Note: 22160-33380

$1.99

$

In Stock, only 2 left!

0

33

Echo V452000890

SPRING, LEVER

Note: 22160-33370

$1.99

$

Usually ships in 2-4 days

0

34

Echo C450000650

TRIGGER, THROTTLE

Note: 39309-32240

$2.49

$

In Stock, only 1 left!

0

35

Echo V203001490

BOLT - TAPPING

Note: 11044-05160

$1.99

$

In Stock, Qty 6

0

36

Echo V203000450

SCREW - 5X20

Note: 70140-31480

$1.99

$

In Stock, Qty 5

0

37

Echo C040000580

HANDLE - FRONT

Note: 72311-32110

$68.99

$

Usually ships in 2-4 days

0
