488 - Shindaiwa Chainsaw (Original Version) Crankcase Parts Diagram

Chainsaw

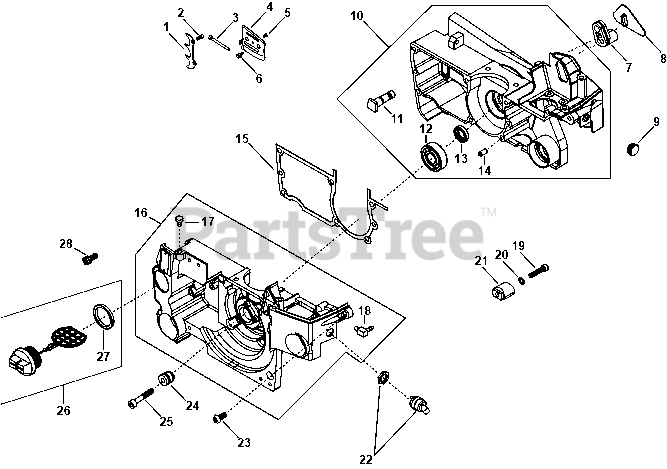

Crankcase Parts Diagram

  • Title
1

Echo C304000140

SPIKE, BUMPER

Note: 22160-52530

$6.99

$

Usually ships in 2-4 days

0

2

Echo V203001500

BOLT

Note: 22157-15330

$0.99

$

In Stock, only 2 left!

0

3

Echo V253000620

ADJUSTING SCREW

Note: 22160-53310

$1.99

$

In Stock, Qty 10

0

4

Echo C305000290

PLATE, GUIDE

Note: 22160-97630

$4.99

$

In Stock, only 1 left!

0

5

Echo V252000470

SCREW M4×7

Note: 22173-56150

$0.99

$

In Stock, Qty 8

0

6

Echo C309000110

TENSIONER, CHAIN

Note: 22150-52440

$2.49

$

In Stock, Qty 15

0

7

Echo V131000120

GROMMET (non EPA)

Note: 22160-82150

$5.49

$

In Stock, only 2 left!

0

7

Echo V131000160

GROMMET (EPA)

Note: 72365-82150

$1.99

$

In Stock, only 2 left!

0

8

Echo V420002820

STOPPER

Note: 22160-22250

$4.99

$

Usually ships in 2-4 days

0

9

Echo V141000110

PLUG

Note: 22160-22220

$0.99

$

Usually ships in 2-4 days

0

10

Echo P021032220

CRANKCASE ASSY. C
(Superseded to P021040960)

Note: 72312-21502

$

$

Not available

11

Echo V225000160

BAR BOLT

Note: 72312-21520

$3.99

$

In Stock, only 1 left!

0

12

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

Note: 12900-62010

$7.99

$

In Stock, Qty 11

0

13

Echo V505000140

SEAL, OIL 12

Note: 22150-21250

$3.49

$

In Stock, only 3 left!

0

14

Echo V623000060

PIN, LOCATING 5×10
(Superseded to 10021502830)

Note: 20000-21140

$0.99

$

Usually ships in 2-4 days

0

15

Echo V102000170

GASKET

Note: 22160-21720

$2.49

$

Usually ships in 2-4 days

0

16

Echo P021022130

CRANKCASE ASSY. M

Note: 22157-21201

$

$

Not available

17

Echo A356000130

VENT ASSY

Note: 22115-57120

$4.49

$

Usually ships in 2-4 days

0

18

Echo V185000000

CONNECTOR, PIPE

Note: 22150-21220

$6.49

$

Usually ships in 2-4 days

0

19

Echo V203001460

BOLT M5×25

Note: 22155-12190

$1.99

$

In Stock, only 3 left!

0

20

Echo 9220305000

WASHER 5MM

Note: 01611-05100

$0.99

$

In Stock, Qty 6

0

21

Echo C310000080

CHAIN CATCHER

Note: 22160-52510

$2.49

$

In Stock, only 2 left!

0

22

Echo A440001640

SWITCH ASSY

Note: 22160-22100

$13.99

$

In Stock, only 1 left!

0

23

Echo V253000650

SCREW

Note: 22157-21760

$0.99

$

Usually ships in 2-4 days

0

24

Echo V420002840

SUPPORT

Note: 22160-33730

$2.49

$

Usually ships in 2-4 days

0

25

Echo V203001510

BOLT M5×30
(Superseded to Discontinued)

Note: 22157-21750

$

$

Not available

26

Echo C020000020

CAP ASSY, OIL

Note: 22160-21302

$9.99

$

In Stock, Qty 16

0

27

Echo V106000080

GASKET, CAP

Note: 22160-21351

$1.99

$

In Stock, Qty 16

0

28

Echo V203001600

BOLT M5×18

Note: 22157-12130

$0.99

$

In Stock, Qty 20+

0
