488 - Shindaiwa Chainsaw (Original Version) Clutch / Oil Pump Parts Diagram

Chainsaw

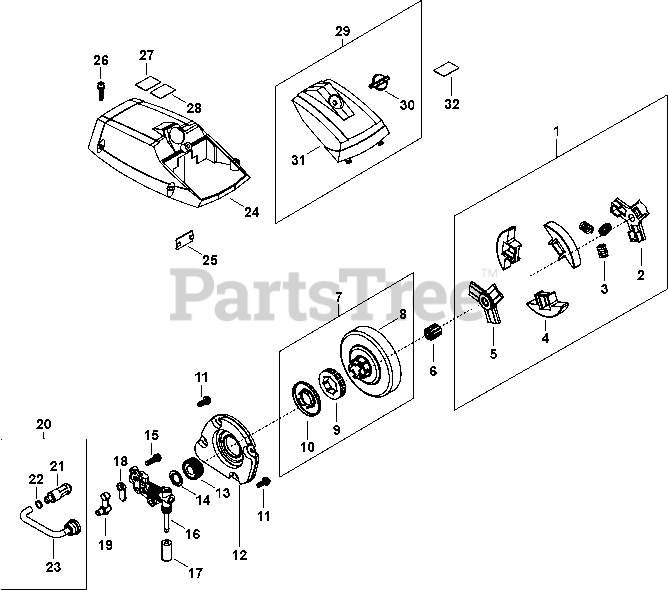

Clutch / Oil Pump Parts Diagram

  • Title
1

Echo A056000620

CLUTCH ASSY

Note: 22160-51200

$25.99

$

In Stock, Qty 6

0

2

Echo A552000260

BOSS, CLUTCH B

Note: 22160-51240

$6.49

$

Usually ships in 2-4 days

0

3

Echo V451000940

SPRING, CLUTCH

Note: 22160-51230

$1.99

$

Usually ships in 2-4 days

0

4

Echo A555000220

SHOE, CLUTCH

Note: 22160-51220

$5.99

$

Usually ships in 2-4 days

0

5

Echo A552000250

BOSS, CLUTCH A

Note: 22160-51210

$3.49

$

In Stock, only 1 left!

0

6

Echo V555000150

BEARING, NEEDLE 10
(Superseded to V555000170)

Note: 22100-51310

$13.99

$

In Stock, Qty 20+

0

7

Echo P021037700

DRUM ASSY, CLUTCH

Note: 22160-51501

$63.99

$

In Stock, only 1 left!

0

8

Echo A556001140

CLUTCH DRUM

Note: 22160-51511

$43.99

$

Usually ships in 2-4 days

0

9

Echo 17511412530

SPROCKET, .325 RIM

Note: 22131-98120

$18.99

$

In Stock, Qty 8

0

10

Echo V312000030

COVER

Note: 22160-51530

$3.49

$

Usually ships in 2-4 days

0

11

Echo V252000460

SCREW

Note: 22160-56150

$0.99

$

In Stock, only 3 left!

0

12

Echo C236000090

PUMP COVER ASSY.

Note: 72317-56100

$25.99

$

Usually ships in 2-4 days

0

13

Echo V652000170

GEAR

Note: 22154-55110

$1.99

$

In Stock, only 3 left!

0

14

Echo V307000330

PLATE, THRUST

Note: 22154-55120

$1.99

$

In Stock, only 4 left!

0

15

Echo 9157304016

SCREW M4×16

Note: 11205-04160

$0.99

$

Usually ships in 2-4 days

0

16

Echo C022000130

OIL PUMP ASSY

Note: 22160-55200

$66.99

$

In Stock, only 1 left!

0

17

Echo V418000010

FILTER

Note: 22155-55430

$1.99

$

In Stock, only 2 left!

0

18

Echo V112000000

GASKET PUMP

Note: 22150-55411

$2.49

$

In Stock, only 2 left!

0

19

Echo V186000350

ELBOW

Note: 22160-55420

$2.49

$

In Stock, only 1 left!

0

20

Echo C021000040

OIL TUBE ASSY.

Note: 22160-55301

$13.99

$

In Stock, only 1 left!

0

21

Echo C209000080

FILTER, OIL

Note: 22169-57360

$9.99

$

Usually ships in 2-4 days

0

22

Echo V490000740

CLIP

Note: 22100-57370

$0.99

$

Usually ships in 2-4 days

0

23

Echo V470001550

PIPE, OIL

Note: 22160-55310

$6.99

$

In Stock, only 1 left!

0

24

Echo A160002080

CYLINDER COVER

Note: 22160-31110

$16.99

$

Usually ships in 2-4 days

0

25

Echo A219000050

PLUG

Note: 22160-31120

$1.49

$

Usually ships in 2-4 days

0

26

Echo V203001640

BOLT 5

Note: 22160-31150

$1.99

$

In Stock, Qty 5

0

27

Echo X505003850

CAUTION LABEL
(Superseded to Discontinued)

Note: 72311-31150

$

$

Not available

28

Echo X505003860

CAUTION LABEL
(Superseded to Discontinued)

Note: 72164-33221

$

$

Not available

29

Echo P021034390

AIR FILTER COVER ASSY.

Note: 22157-82500

$16.99

$

Usually ships in 2-4 days

0

30

Echo A235000280

THUMBSCREW

Note: 22155-82520

$4.99

$

In Stock, only 1 left!

0

31

Echo A232001210

CLEANER COVER

Note: 22157-82510

$12.99

$

Usually ships in 2-4 days

0

32

Echo X505003610

LABEL, CAUTION I
(Superseded to Discontinued)

Note: 72229-75180

$

$

Not available
