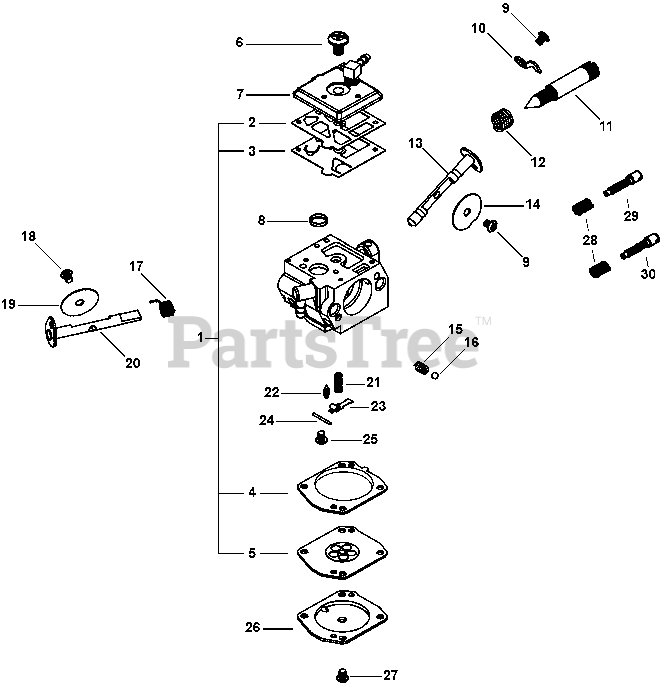

488 - Shindaiwa Chainsaw (Original Version) Carburetor (Non-EPA) Parts Diagram

Chainsaw

Carburetor (Non-EPA) Parts Diagram

  • Title

Echo A021002970

CARBURETOR ASSY.
(Superseded to A021002971)

Note: 22160-81001

$91.99

$

In Stock, only 1 left!

0

1

N/A

CARBURETOR GASKET KIT

Note: 80551

$

$

Not available

2

Echo 12312512330

GASKET, FUEL PUMP

Note: 22150-81140

$2.99

$

In Stock, only 1 left!

0

3

Echo 12311212330

DIAPHRAGM, FUEL PUMP

Note: 22150-81150

$6.49

$

Usually ships in 2-4 days

0

4

Echo 12314016130

GASKET, METERING DIAPHRAGM

Note: 22150-81290

$2.49

$

In Stock, only 1 left!

0

5

Echo 12314116130

METERING DIAPHRAGM

Note: 22150-81260

$

$

Not available

6

Echo 12311003930

SCREW

Note: 22100-81130

$0.99

$

In Stock, only 1 left!

0

7

Echo 12312419830

COVER, FUEL PUMP

Note: 72365-81120

$7.99

$

Usually ships in 2-4 days

0

8

Echo 12312610631

SCREEN, INLET

Note: 70030-81380

$1.49

$

In Stock, Qty 19

0

9

Echo 12311403930

SCREW

Note: 22100-81360

$1.49

$

In Stock, Qty 13

0

10

Echo 12315630830

STOP, THROTTLE

Note: 22160-81390

$1.99

$

Usually ships in 2-4 days

0

11

Echo P003003030

SCREW, IDLE ADJUST

Note: 22156-81410

$11.99

$

Usually ships in 2-4 days

0

12

Echo 12313304260

SPRING, IDLE ADJUST

Note: 22156-81420

$6.49

$

In Stock, Qty 16

0

13

Echo P003003120

SHAFT ASSY

Note: 22160-81740

$22.99

$

Usually ships in 2-4 days

0

14

Echo 12313232430

VALVE, CHOKE

Note: 22160-81710

$1.99

$

Usually ships in 2-4 days

0

15

Echo 12313510630

SPRING

Note: 22150-81730

$1.49

$

Usually ships in 2-4 days

0

16

Echo 12313610630

BALL, CHOKE FRICTION

Note: 22150-81720

$0.99

$

Usually ships in 2-4 days

0

17

Echo P003000560

RETURN SPRING

Note: 22150-81430

$0.99

$

Usually ships in 2-4 days

0

18

Echo 12311405260

SCREW

Note: 20803-81140

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12311603930

VALVE, THROTTLE

Note: 22100-81340

$1.99

$

In Stock, only 3 left!

0

20

Echo P003003110

SHAFT ASSY

Note: 22160-81371

$28.99

$

Usually ships in 2-4 days

0

21

Echo 12312203660

SPRING, METERING LEVER

Note: 72342-81270

$1.49

$

Usually ships in 2-4 days

0

22

Echo 12313719830

VALVE, INLET NEEDLE

Note: 20036-81440

$18.99

$

Usually ships in 2-4 days

0

23

Echo 12312318330

LEVER, METERING

Note: 22150-81230

$4.49

$

Usually ships in 2-4 days

0

24

Echo 12313803930

PIN, METERING LEVER

Note: 22100-81250

$5.99

$

In Stock, only 4 left!

0

25

Echo 12313903930

SCREW, METERING LEVER PIN

Note: 22100-81240

$1.49

$

In Stock, only 1 left!

0

26

Echo 12314217330

COVER, METERING DIAPHRAGM

Note: 22150-81280

$3.99

$

Usually ships in 2-4 days

0

27

Echo 12313002960

SCREW

Note: 22100-81351

$1.99

$

Usually ships in 2-4 days

0

28

Echo 12312116130

SPRING, NEEDLE

Note: 22160-81160

$1.49

$

Usually ships in 2-4 days

0

29

Echo P003003080

NEEDLE, LOW SPEED

Note: 22160-81170

$13.99

$

Usually ships in 2-4 days

0

30

Echo P003003090

H NEEDLE

Note: 22160-81330

$9.99

$

Usually ships in 2-4 days

0
