488 - Shindaiwa Chainsaw (Original Version) Brake Lever Parts Diagram

Chainsaw

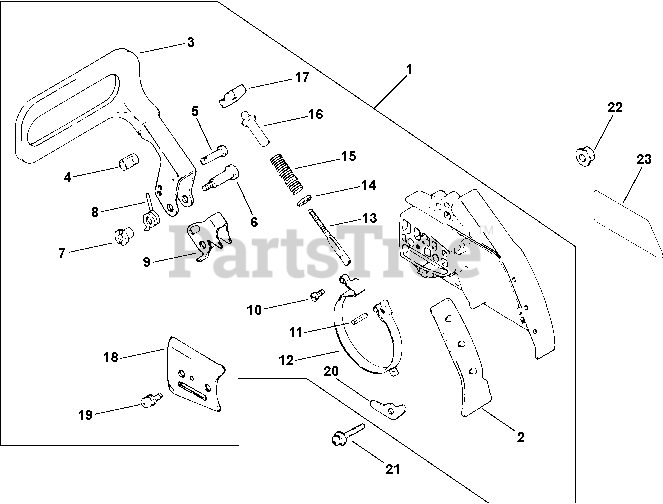

Brake Lever Parts Diagram

  • Title

1

Echo P021032190

BRAKE LEVER ASSY.
(Superseded to Discontinued)

Note: 72311-54014

$

$

Not available

2

Echo C302000050

PROTECTOR

Note: 22160-54160

$3.99

$

Usually ships in 2-4 days

0

3

Echo C320000340

LEVER

Note: 22160-54511

$37.99

$

Usually ships in 2-4 days

0

4

Echo V353000500

COLLAR

Note: 72231-54620

$2.49

$

Usually ships in 2-4 days

0

5

Echo V641000210

STOPPER PIN

Note: 72231-54610

$1.99

$

Usually ships in 2-4 days

0

6

Echo V203001570

BOLT LEVER

Note: 72231-54580

$4.49

$

In Stock, only 1 left!

0

7

Echo V263000300

NUT LEVER

Note: 72231-54590

$2.99

$

Usually ships in 2-4 days

0

8

Echo V452000920

SPRING LEVER

Note: 22150-54630

$1.99

$

In Stock, only 1 left!

0

9

Echo C334000260

INNER LEVER

Note: 22150-54520

$

$

Currently unavailable

10

Echo V203001560

BOLT
(Superseded to Discontinued)

Note: 22160-54220

$

$

Not available

11

Echo 90034240012

PIN, SPRING 4×12

Note: 02427-40125

$0.99

$

In Stock, Qty 6

0

12

Echo C328000250

BRAKE BAND

Note: 22160-54211

$11.99

$

Usually ships in 2-4 days

0

13

Echo J327000090

ADJUST ROD
(Superseded to Discontinued)

Note: 22160-54310

$

$

Not available

14

Echo V306000310

WASHER

Note: 22160-54340

$1.99

$

Usually ships in 2-4 days

0

15

Echo V450001200

BREAK SPRING

Note: 22150-54330

$2.49

$

Usually ships in 2-4 days

0

16

Echo A613000060

ADJUST SCREW

Note: 22150-54320

$6.49

$

Usually ships in 2-4 days

0

17

Echo C321000030

BLOCK

Note: 22150-54410

$6.49

$

Usually ships in 2-4 days

0

18

Echo C305000330

GUIDE PLATE D

Note: 22160-97640

$4.99

$

Usually ships in 2-4 days

0

19

Echo V252000460

SCREW

Note: 22160-56150

$0.99

$

In Stock, only 3 left!

0

20

Echo C334000250

BRACKET
(Superseded to Discontinued)

Note: 72311-54710

$

$

Not available

21

Echo V252000460

SCREW

Note: 22160-56150

$0.99

$

In Stock, only 3 left!

0

22

Echo V265000250

NUT 8

Note: 22154-52410

$0.99

$

In Stock, Qty 13

0

23

Echo X504004240

LABEL

Note: 72311-54141

$2.99

$

Usually ships in 2-4 days

0
