488 P - Shindaiwa Chainsaw (SN: C54820001001 - C54820999999) Crankcase Parts Diagram

Chainsaw

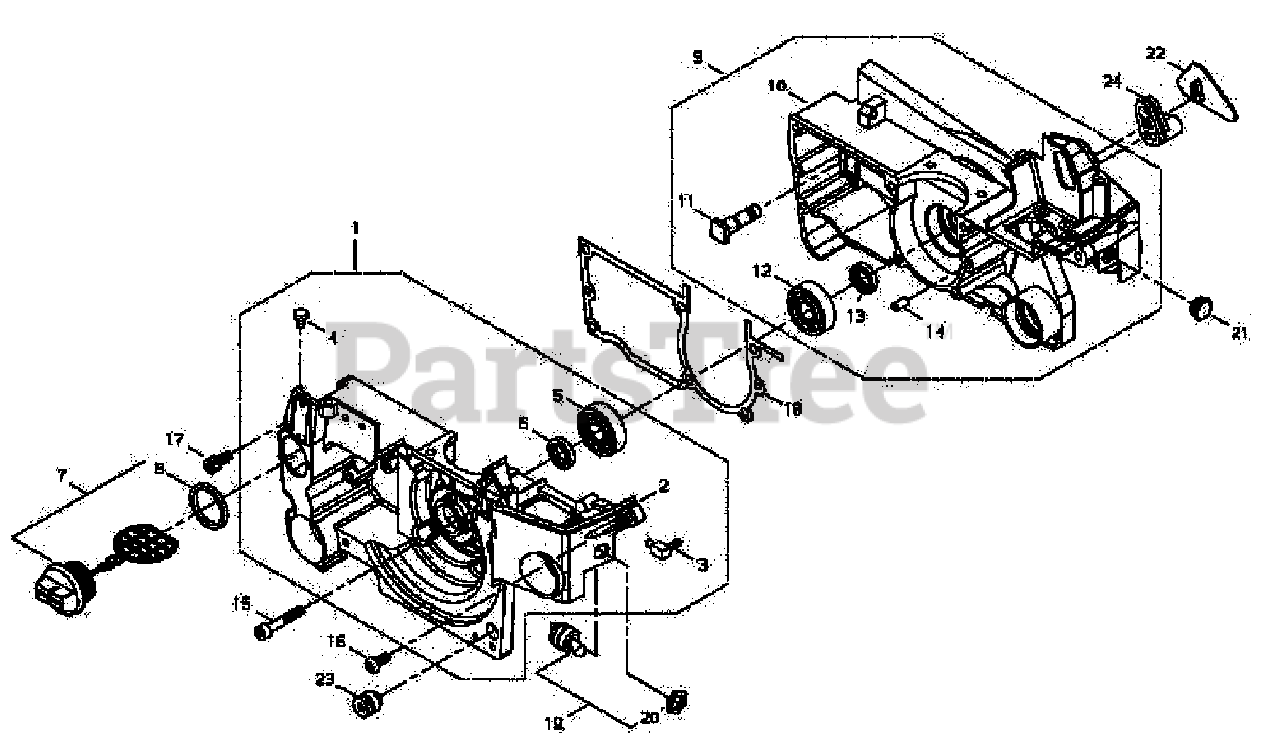

Crankcase Parts Diagram

  • Title

1

Echo P021022130

CRANKCASE ASSY - LEFT

Note: 22157-21201

$

$

Not available

2

Echo P021022140

CRANKCASE - LEFT

Note: 22157-21210

$

$

Currently unavailable

3

Echo V185000000

CONNECTOR, PIPE

Note: 22150-21220

$6.49

$

Usually ships in 2-4 days

0

4

Echo A356000130

VALVE, CHECK

Note: 22115-57120

$4.49

$

Usually ships in 2-4 days

0

5

Echo V592000110

BEARING, BALL - 6201C3
(Superseded to V592000330)

Note: 12900-62010

$7.99

$

In Stock, Qty 9

0

6

Echo V505000140

SEAL, OIL - 12

Note: 22150-21250

$3.49

$

In Stock, only 1 left!

0

7

Echo C020000020

CAP ASSY

Note: 22160-21302

$9.99

$

In Stock, Qty 16

0

8

Echo V106000080

GASKET, CAP

Note: 22160-21351

$1.99

$

In Stock, Qty 16

0

9

Echo P021032220

CRANKCASE ASSY - RIGHT
(Superseded to P021040960)

Note: 72312-21502

$

$

Not available

10

Echo A120000890

CRANKCASE - RIGHT

Note: 22160-21512

$

$

Currently unavailable

11

Echo V225000160

STUD, GUIDE BAR

Note: 72312-21520

$3.99

$

In Stock, only 1 left!

0

12

Echo V592000110

BEARING, BALL - 6201C3
(Superseded to V592000330)

Note: 12900-62010

$7.99

$

In Stock, Qty 9

0

13

Echo V505000140

SEAL, OIL - 12

Note: 22150-21250

$3.49

$

In Stock, only 1 left!

0

14

Echo V623000060

ROLLER
(Superseded to 10021502830)

Note: 12492-50100

$0.99

$

Usually ships in 2-4 days

0

15

Echo V203001510

BOLT
(Superseded to Discontinued)

Note: 22157-21750

$

$

Not available

16

Echo V253000650

SCREW

Note: 22157-21760

$0.99

$

Usually ships in 2-4 days

0

17

Echo V203001600

BOLT

Note: 22157-12130

$0.99

$

In Stock, Qty 20+

0

18

Echo V102000170

GASKET, CRANKCASE

Note: 22160-21720

$2.49

$

Usually ships in 2-4 days

0

19

Echo A440001640

IGNITION SWITCH ASSY

Note: 22160-22100

$13.99

$

In Stock, only 1 left!

0

20

Echo V266000090

NUT - 10

Note: 22154-22130

$0.99

$

In Stock, only 1 left!

0

21

Echo V141000110

PLUG

Note: 22160-22220

$0.99

$

Usually ships in 2-4 days

0

22

Echo V420002820

STOPPER H

Note: 22160-22250

$4.99

$

Usually ships in 2-4 days

0

23

Echo V420002840

SUPPORTER

Note: 22160-33730

$2.49

$

Usually ships in 2-4 days

0

24

Echo V131000120

GROMMET

Note: 22160-82150

$5.49

$

In Stock, only 1 left!

0
