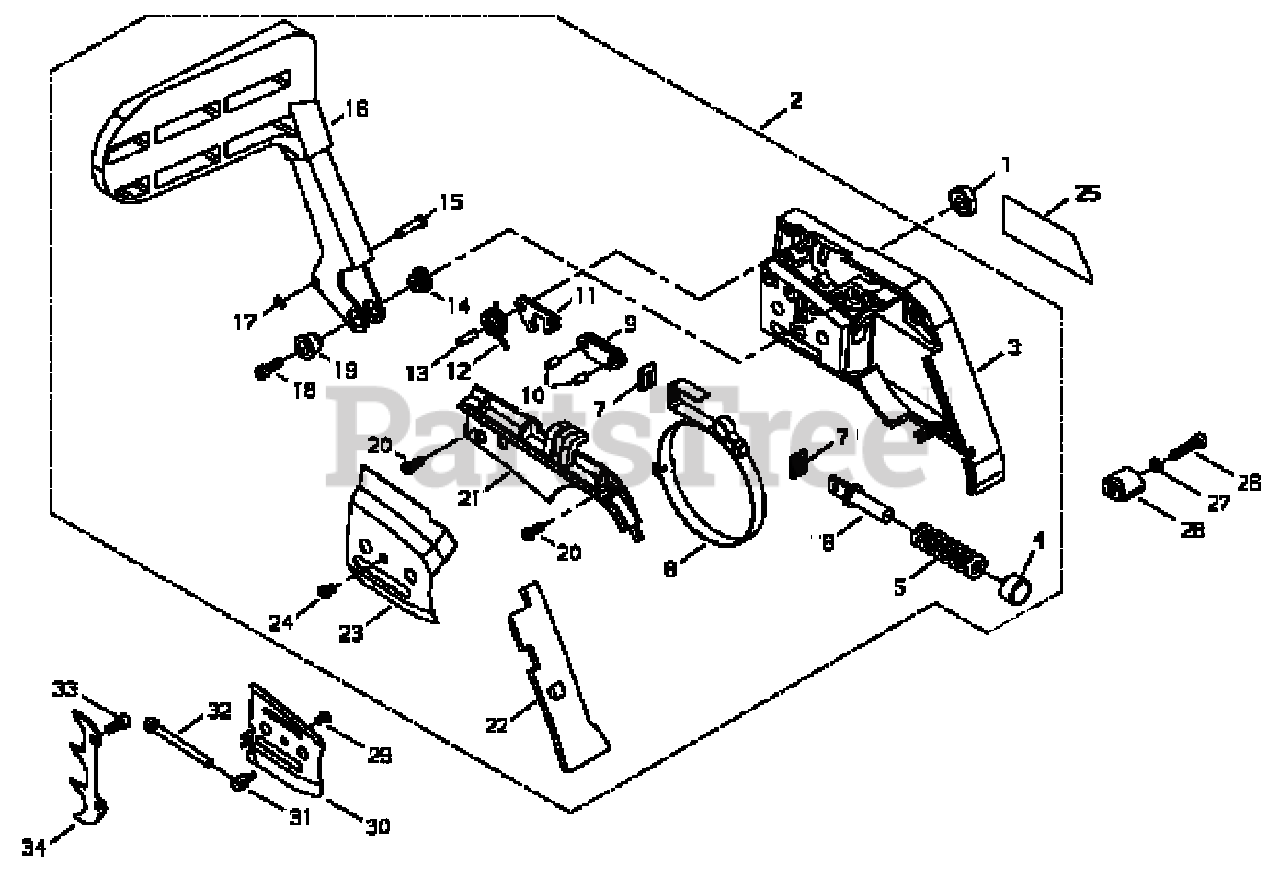

488 P - Shindaiwa Chainsaw (SN: C54820001001 - C54820999999) Brake Parts Diagram

Chainsaw

Brake Parts Diagram

  • Title

1

Echo V265000250

NUT - 8

Note: 22154-52410

$0.99

$

In Stock, Qty 18

0

2

Echo P021032500

CHAIN BRAKE ASSY
(Superseded to P021032501)

Note: 72346-54014

$165.99

$

Usually ships in 2-4 days

0

3

Echo C300000690

GUARD, SPROCKET

Note: 72346-54112

$18.99

$

Usually ships in 2-4 days

0

4

Echo V456000170

STOPPER

Note: 72316-54240

$2.49

$

Usually ships in 2-4 days

0

5

Echo V450001040

SPRING, BRAKE

Note: 72346-54230

$4.49

$

Usually ships in 2-4 days

0

6

Echo C334000130

HOLDER, SPRING

Note: 72316-54220

$13.99

$

Usually ships in 2-4 days

0

7

Echo C329000020

ADJUST PLATE
(Superseded to Discontinued)

Note: 72316-54310

$

$

Not available

8

Echo C328000130

BAND, BRAKE

Note: 72345-54210

$20.99

$

Usually ships in 2-4 days

0

9

Echo C334000150

TIE, CABLE

Note: 72316-54570

$3.99

$

In Stock, only 1 left!

0

10

Echo V622000040

PIN - LOCATING
(Superseded to 90033040080)

Note: 12492-40080

$0.99

$

In Stock, Qty 20+

0

11

Echo C334000140

LEVER - INNER

Note: 22173-54561

$2.99

$

Usually ships in 2-4 days

0

12

Echo V452000900

SPRING, LEVER

Note: 72316-54580

$2.49

$

In Stock, only 4 left!

0

13

Echo V622000050

PIN
(Superseded to 9305040138)

Note: 12492-40140

$1.49

$

Usually ships in 2-4 days

0

14

Echo V262000120

NUT

Note: 72316-54530

$4.49

$

Usually ships in 2-4 days

0

15

Echo V641000170

PIN

Note: 72316-54540

$0.99

$

In Stock, Qty 9

0

16

Echo C320000200

LEVER, BRAKE

Note: 72316-54511

$48.99

$

Usually ships in 2-4 days

0

17

Echo 9240303000

RING, RETAINING

Note: 02434-30060

$0.99

$

In Stock, Qty 9

0

18

Echo 90010504012

SCREW - 4X12

Note: 01020-04120

$1.49

$

Usually ships in 2-4 days

0

19

Echo V352000170

COLLAR

Note: 72316-54520

$6.49

$

Usually ships in 2-4 days

0

20

Echo 9137404012

SCREW - 4X12 -- TAPPING

Note: 01270-04122

$0.99

$

Usually ships in 2-4 days

0

21

Echo C345000440

COVER, BRAKE

Note: 72345-54911

$9.99

$

Usually ships in 2-4 days

0

22

Echo C302000040

PROTECTOR

Note: 72316-54171

$2.99

$

Usually ships in 2-4 days

0

23

Echo C305000310

GUIDE PLATE D

Note: 72316-54160

$8.99

$

Usually ships in 2-4 days

0

24

Echo 9137404008

SCREW - 4X8 -- TAPPING
(Superseded to Discontinued)

Note: 01270-04082

$

$

Not available

25

Echo X504004240

LABEL - TRADE

Note: 69026-91331

$2.99

$

Usually ships in 2-4 days

0

26

Echo V203001460

BOLT

Note: 22155-12190

$1.99

$

In Stock, only 3 left!

0

27

Echo 9220305000

WASHER

Note: 01611-05100

$0.99

$

In Stock, Qty 6

0

28

Echo C310000080

CATCHER, CHAIN

Note: 22160-52511

$2.49

$

In Stock, only 2 left!

0

29

Echo V252000470

SCREW

Note: 22173-56150

$0.99

$

In Stock, Qty 7

0

30

Echo C305000290

GUIDE PLATE C

Note: 22160-97630

$4.99

$

In Stock, only 1 left!

0

31

Echo C309000110

TENSIONER, CHAIN

Note: 22150-52440

$2.49

$

In Stock, Qty 11

0

32

Echo V253000620

SCREW, TENSIONER

Note: 22160-53310

$1.99

$

In Stock, Qty 10

0

33

Echo V203001500

BOLT

Note: 22157-15330

$0.99

$

In Stock, only 2 left!

0

34

Echo C304000140

SPIKE

Note: 22160-52530

$6.99

$

Usually ships in 2-4 days

0
