48653 - Gravely Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed Range/Differential Lock Control Parts Diagram

Walk-Behind 2-Wheel Tractor, 10hp, 4-Speed

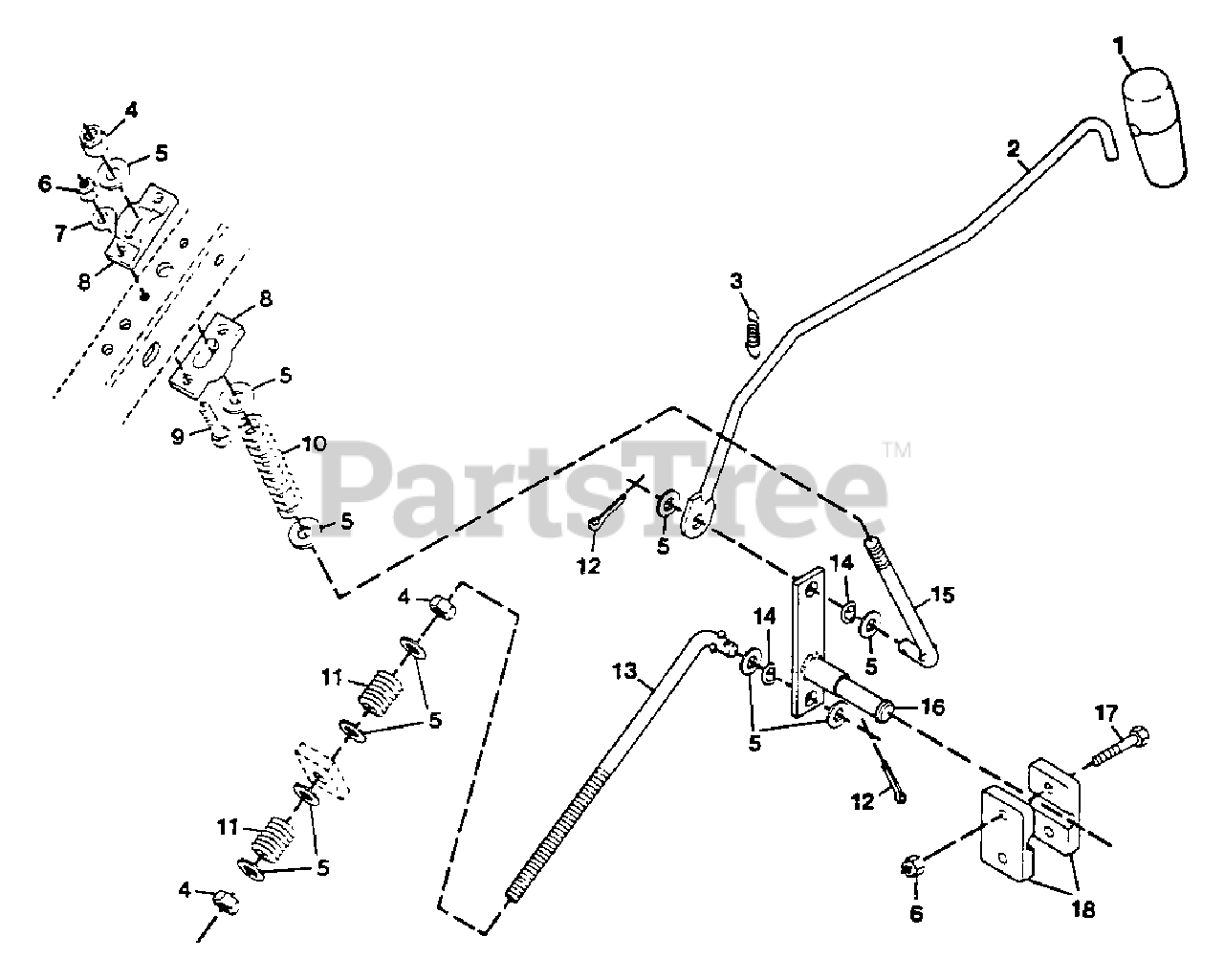

Range/Differential Lock Control Parts Diagram

  • Title

1

10683

Handle, Rubber Shifter

$

$

Not available

2

46798

Rod, Shifter

$

$

Not available

3

41042

Spring, Extension .50x1.25

$

$

Not available

4

Gravely 456004

Nut, Lock 3/6-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

40637

Cam, Shifter

$

$

Not available

9

Gravely 180022

Bolt, Hex 1/4-20x1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

10

40599

Spring, Comp. .720x2.75

$

$

Not available

11

Gravely 11779

Spring, Comp. 1x.78x338

$

$

Currently unavailable

12

Gravely 177923

Pin, Cotter .125x.750
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

13

40648

Link, Shifter

$

$

Not available

14

41623

Washer, Spring .375 I.D.

$

$

Not available

15

40632

Weldment, Shifter Crank

$

$

Not available

16

46784

Link, Shifter Stop

$

$

Not available

17

Gravely 180034

Bolt, Hex 1/4-20x1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

18

32353

Block, Shift Lever

$

$

Not available
