48651 - Gravely Walk-Behind 2-Wheel Tractor, 4-Speed Electrical System - Manual Start Models Parts Diagram

Walk-Behind 2-Wheel Tractor, 4-Speed

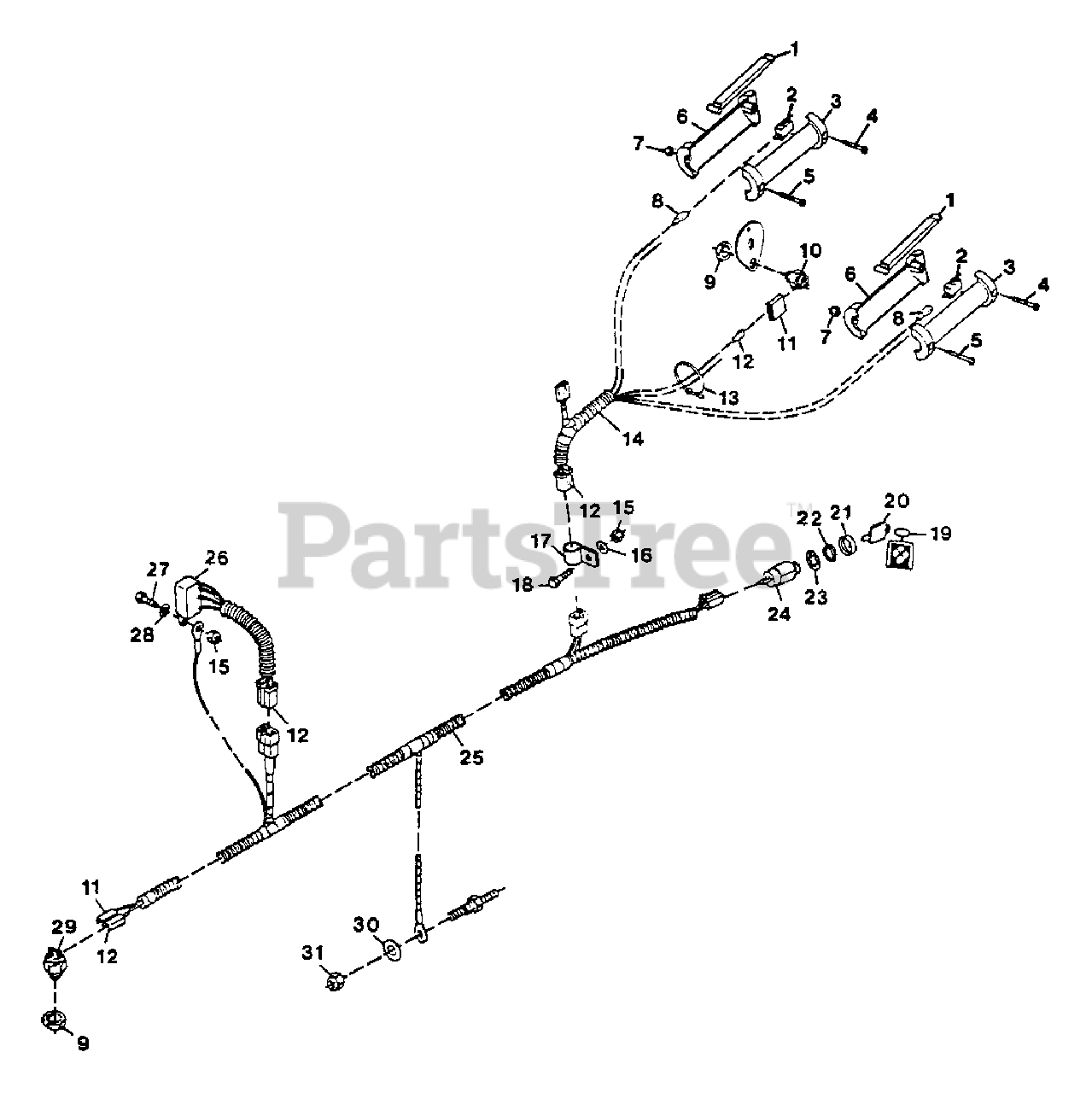

Electrical System - Manual Start Models Parts Diagram

  • Title
1

46822

Lever

$

$

Not available

2

46823

Switch

$

$

Not available

3

46820

Handle, L.H.

$

$

Not available

4

Gravely 159929

Screw, Machine 10-24x.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

5

Gravely 159967

Screw, Machine 10-24x1.50 PHD
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

6

46821

Handle, R.H.

$

$

Not available

7

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

46988

Terminal, Female

$

$

Not available

9

Gravely 107354

Nut, Stamped 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

10

34640

Switch, Neutral Start

$

$

Not available

11

42176

Connector, 2-Wire Switch

$

$

Not available

12

38059

Terminal

$

$

Not available

13

41634

Tie Wrap, Black

$

$

Not available

14

47306

Harness, Wiring Handlebar

$

$

Not available

15

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

35313

Clamp, Nylon

$

$

Not available

18

Gravely 180020

Bolt, Hex 1/4-20x.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

45842

Chain, Key

$

$

Not available

20

45488

Key, Ignition Switch

$

$

Not available

21

45490

Boot

Note: For 9/16 Switch

$

$

Not available

22

45489

Nut, 9/16-24

Note: For Switch

$

$

Not available

23

19667

Washer, Lock 5/8 Int. Tooth

$

$

Not available

24

30202

Switch

$

$

Not available

25

48688

Harness, Wiring

$

$

Not available

26

48905

Module, Interlock Recoil

$

$

Not available

27

Gravely 180018

Bolt, Hex 1/4-20x.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

28

Gravely 120423

Washer, Lock 1/4 Int. Th.
(Superseded to 06305200)

$3.49

$

Usually ships in 4-12 days

0

29

20916

Switch, Interlock

$

$

Not available

30

Gravely 120395

Washer, Flat .469x.938x.065
(Superseded to 06429400)

$

$

Not available

31

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
