48641 - Gravely 32" Snow Blower for 2-Wheel Tractor BLOWER HOUSING AND CONTROLS Parts Diagram

32" Snow Blower for 2-Wheel Tractor

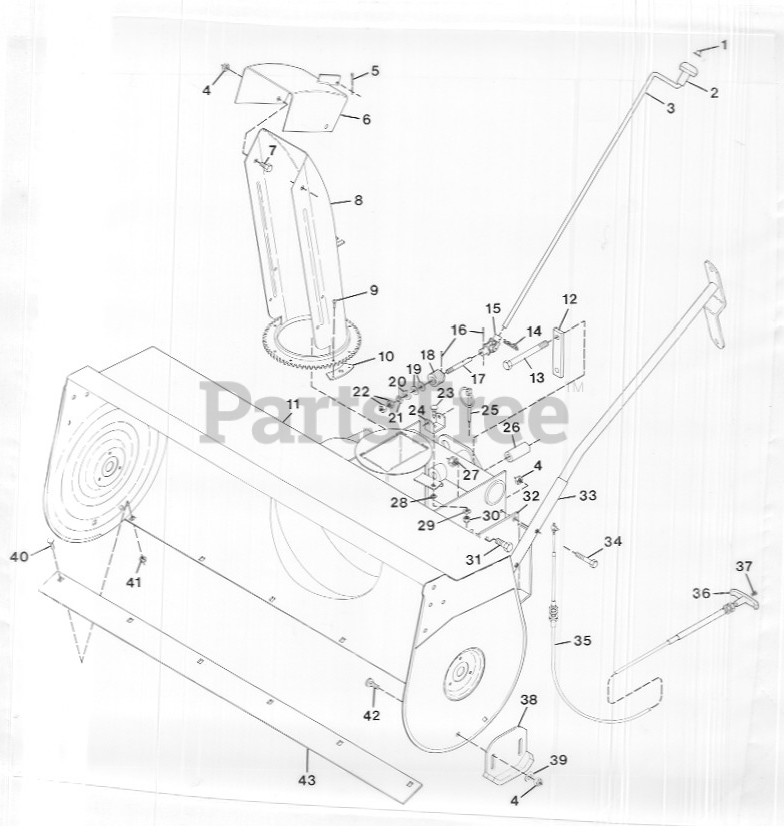

BLOWER HOUSING AND CONTROLS Parts Diagram

  • Title
1

Gravely 036903

Cap
(Superseded to 01019800)

$2.99

$

In Stock, Qty 15

0

2

Gravely 036902

Knob
(Superseded to 07508300)

$13.99

$

In Stock, Qty 7

0

3

Gravely 038849

Crank, Chute Control
(Superseded to 03330600)

$

$

Not available

4

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 121222

Pin, Cotter .09x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

6

Gravely 036893

Deflector, Chute

$

$

Not available

7

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 038835

Chute, Discharge
(Superseded to 02449953)

$

$

Not available

9

Gravely 448423

Screw, Tapping #10-24x.50 HHD
(Superseded to 07410700)

$

$

Not available

10

Gravely 049103

Clamp, Chute
(Superseded to 02463500)

$

$

Not available

11

Gravely 049154

Housing, 32" Sno Thro
(Superseded to 53302400)

$

$

Not available

12

Gravely 035053

Strap, Locking
(Superseded to 08538200)

$62.99

$

In Stock, only 2 left!

0

13

Gravely 433156

Bolt, Hex 1/2-13x4.50
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

14

Gravely 036075

Hair Pin, Internal
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 039376

Assembly, U-Joint
(Superseded to 02470400)

$129.99

$

Usually ships in 4-12 days

0

16

Gravely 415236

Pin, Spring .125x.750
(Superseded to 05803400)

$0.99

$

In Stock, Qty 16

0

17

Gravely 038841

Shaft, Worm
(Superseded to 02451400)

$

$

Not available

18

Gravely 038839

Worm Gear, L.H.
(Superseded to 02450000)

$45.99

$

Usually ships in 4-12 days

0

19

Gravely 038840

Washer, Plastic .390x.875x.0
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

20

Gravely 038842

Washer, .390x.875x.7 Ga.
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 038843

Washer, Wave
(Superseded to 01320200)

$3.49

$

In Stock, Qty 7

0

22

Gravely 124829

Nut, Jam 3/8-16 Hex
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 126216

Bolt, Carriage 5/16-18x.75

$

$

Not available

24

Gravely 038837

Clevis, Worm
(Superseded to 02212300)

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 021244

Pin, Self-Locking
(Superseded to 07014300)

$11.99

$

Usually ships in 4-12 days

0

26

Gravely 035054

Spacer
(Superseded to 08538800)

$37.99

$

Usually ships in 4-12 days

0

27

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 138489

Washer, Lock 3/8 Ext. Th. TYA
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

31

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

32

Gravely 040463

Bracket, Support
(Superseded to 03331600)

$102.99

$

Usually ships in 4-12 days

0

33

Gravely 038846

Support, Crank
(Superseded to 03329743)

$

$

Not available

34

Gravely 180130

Bolt, Hex 3/8-16x2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

35

Gravely 049107

Cable, Control
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

36

Gravely 049108

Knob, Black
(Superseded to 07530800)

$9.49

$

In Stock, only 1 left!

0

37

Gravely 159658

Screw, Machine 8-32x.75 PHD
(Superseded to 21057100)

$

$

Not available

38

Gravely 040825

Runner, Skid Shoe
(Superseded to 03075553)

$39.99

$

Usually ships in 4-12 days

0

39

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 126353

Bolt, 5/16-18x.875 Rd Hd Sq Nk
(Superseded to 06209200)

$

$

Not available

41

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

43

Gravely 040457

Blade, Scraper
(Superseded to 03331543)

$59.99

$

In Stock, only 1 left!

0

Gravely 044077

Decal, Gravely
(Superseded to 03573000)

$

$

Not available

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

Gravely 038847

Decal, Chute
(Superseded to 03330700)

$

$

Not available

Gravely 038848

Decal, Deflector
(Superseded to 03330800)

$

$

Not available
