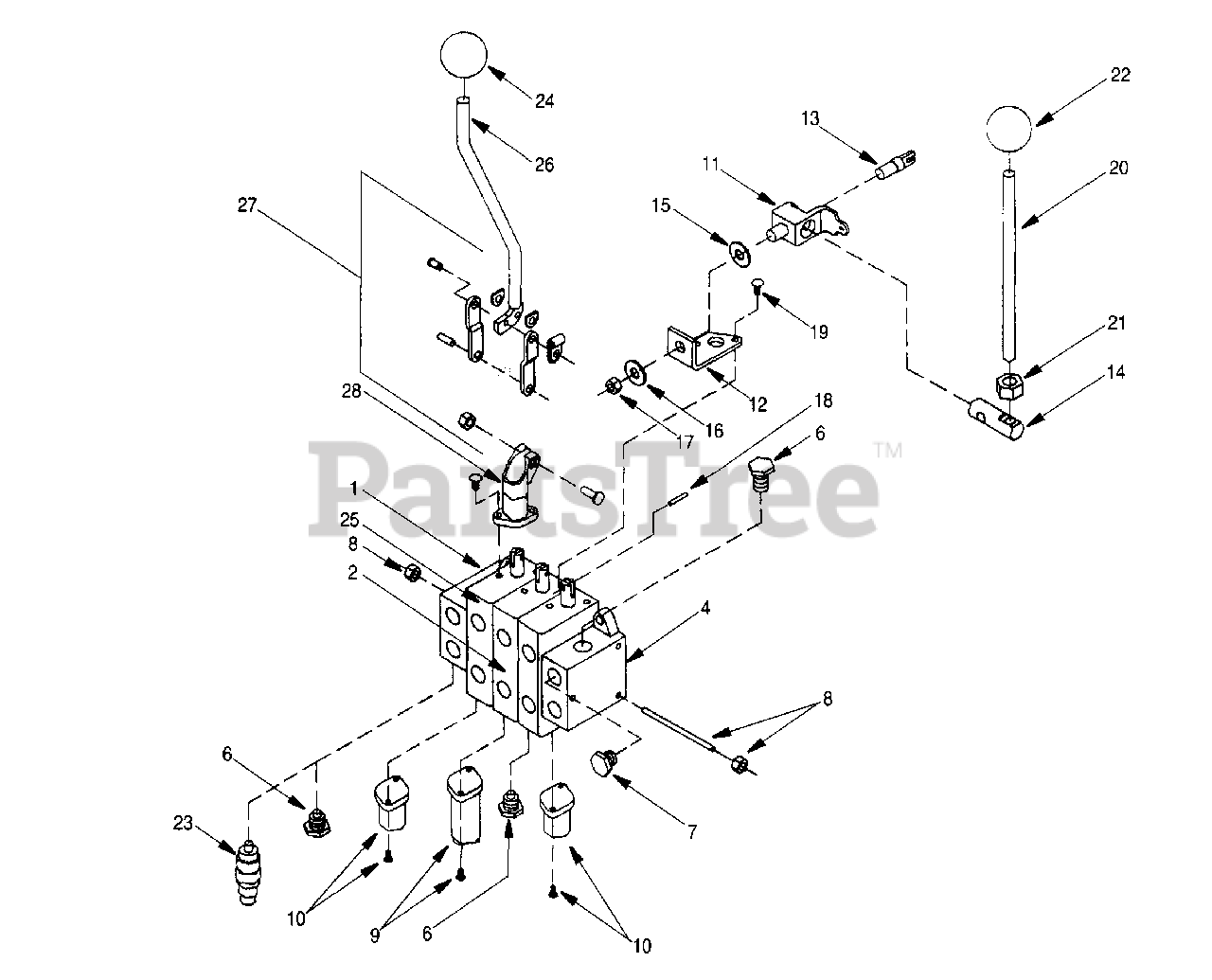

485 (590-485-100) - Cub Cadet Loader Valve Assembly Parts Diagram

Loader

Valve Assembly Parts Diagram

  • Title
1

Cub Cadet WM-56260

Inlet Section Assembly

$

$

Not available

2

Cub Cadet WM-56261

Spool Section Assembly, Boom

$

$

Not available

?3

Cub Cadet WM-56262

Spool Section Assy, Bucket & Aux.

$

$

Not available

4

Cub Cadet WM-56263

Outlet Section Assembly

$

$

Not available

?5

Cub Cadet WM-56264

Seal Kit (for 2 and 3 Spool Valve)

$

$

Not available

6

Cub Cadet WM-X102202

Shut-off Plug

$

$

Not available

7

Cub Cadet WM-16715-1

Plug, 7/8-14 O-Ring Boss

Note: (In #4 Outlet Section, for Open Center Use Ref #7, for Power Beyond and Closed Center, Use Ref #6)

$

$

Not available

8

Cub Cadet WM-X102206

Tie Rod Kit, (2 Spool Section)

$

$

Not available

Cub Cadet WM-56273

Tie Rod Kit, (3 Spool Section)

$

$

Not available

9

Cub Cadet WM-16700-1

WM-Repair Kit, Float End

$

$

Not available

10

Cub Cadet WM-16712-1

Repair Kit, Standard Section

$

$

Not available

11

Cub Cadet WM-56256

Pivot Bracket
(Superseded to WM-1007575)

$

$

Not available

12

Cub Cadet WM-56257

Mounting Bracket

$

$

Not available

13

Cub Cadet WM-56258

Clevis End

$

$

Not available

14

Cub Cadet WM-56259

Axle Valve Control

$

$

Not available

15

Cub Cadet WM-56265

Pivot Bracket

$

$

Not available

16

Cub Cadet WM-56266

Bell Washer

$

$

Not available

17

Cub Cadet WM-56267

Jam Locknut, 1/2-20
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

18

$

$

Not available

19

Cub Cadet WM-56268

Button Hd Cap Scrw, 1/4 UNC x 5/8

$

$

Not available

20

Cub Cadet WM-56254

Straight Handle

$

$

Not available

21

Cub Cadet WM-13859

Jam Nut, 1/2-UNC
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 20+

0

$

$

Not available

23

Cub Cadet WM-56321

Relief Valve Assembly, 2250 psi

$

$

Not available

$

$

Not available

25

Cub Cadet WM-56272

Spool Section Assy, Aux.

Note: (If used)

$

$

Not available

26

Cub Cadet WM-56269

Offset Handle

$

$

Not available

27

Cub Cadet WM-16705

Handle Service Kit

$

$

Not available

28

Cub Cadet WM-16706

Handle Bracket

$

$

Not available

Cub Cadet WM-37765

Boot, Offset Handle

Note: (Not Shown)

$

$

Not available

Cub Cadet WM-16704

Boot, Bent Handle

Note: (Not Shown)

$

$

Not available

Cub Cadet WM-56251

2 Spool Valve Assembly

$

$

Currently unavailable

Cub Cadet WM-56271

3 Spool Valve Assembly

$

$

Currently unavailable
