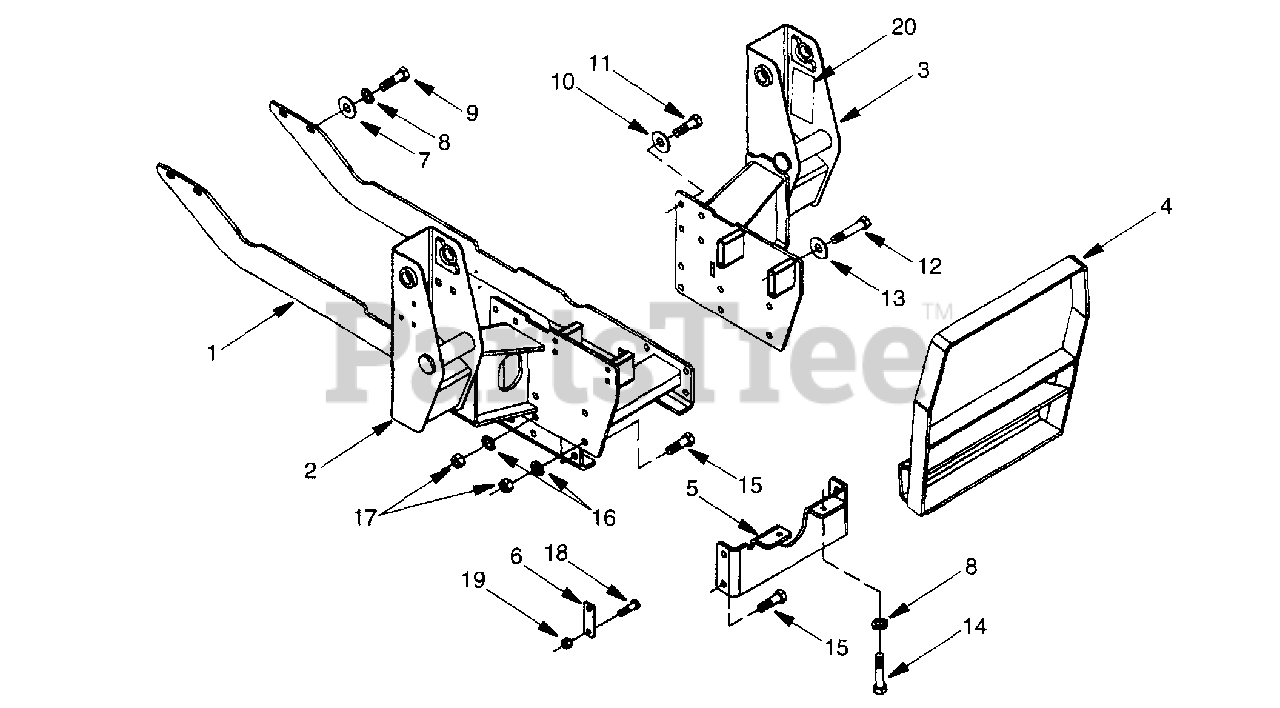

485 (590-485-100) - Cub Cadet Loader Loader Mount Parts Diagram

Loader

Loader Mount Parts Diagram

  • Title

1

Cub Cadet WM-52306

Rear Axle Mount

$

$

Not available

2

Cub Cadet WM-52308

Loader Mount, RH

$

$

Not available

3

Cub Cadet WM-52309

Loader Mount, LH

$

$

Not available

4

Cub Cadet WM-52322

Grille Guard

$

$

Not available

5

Cub Cadet WM-52495

Front Mounting Plate

$

$

Not available

6

Cub Cadet WM-52179

Valve Bracket

$

$

Not available

7

Cub Cadet WM-57816

1/2 Flat Washer, Hardened

$

$

Not available

8

Cub Cadet WM-855

1/2 Lock Washer
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

9

Cub Cadet WM-52418

12mm x 1.75 x 110, Cap Scrw, CL 8.8

$

$

Not available

10

Cub Cadet WM-52178

Washer.566 x 1.25 x .134 HT

$

$

Not available

11

Cub Cadet WM-23030

14mm x 2 x 35 Cap Screw, CL 8.8

$

$

Not available

12

Cub Cadet WM-52193

12mm x 1.25 x 110 Cap Scrw, CL 8.8

$

$

Not available

13

Cub Cadet WM-52177

Washer, .488 x 1.25 x .134 HT

$

$

Not available

14

Cub Cadet WM-307308

12mm x 1.25 x 110 Cap Scrw, CL 8.8

$

$

Currently unavailable

15

Cub Cadet WM-7832

5/8 NC x 1.5, HHCA, GR5

$

$

Currently unavailable

16

Cub Cadet WM-1286

5/8 Lock Washer

$

$

Not available

17

Cub Cadet WM-230

5/8 NC Plated Hex Nut
(Superseded to 912-3015)

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet WM-839

3/8 NC x 1 HHCS, GR5

$

$

Not available

19

Cub Cadet WM-6639

3/8 NC Lock Nut

$

$

Currently unavailable

20

Cub Cadet WM-56059

Mounting/Removal Instruction Decal

$

$

Not available
