485 (590-485-100) - Cub Cadet Loader Loader And Bucket Assembly Parts Diagram

Loader

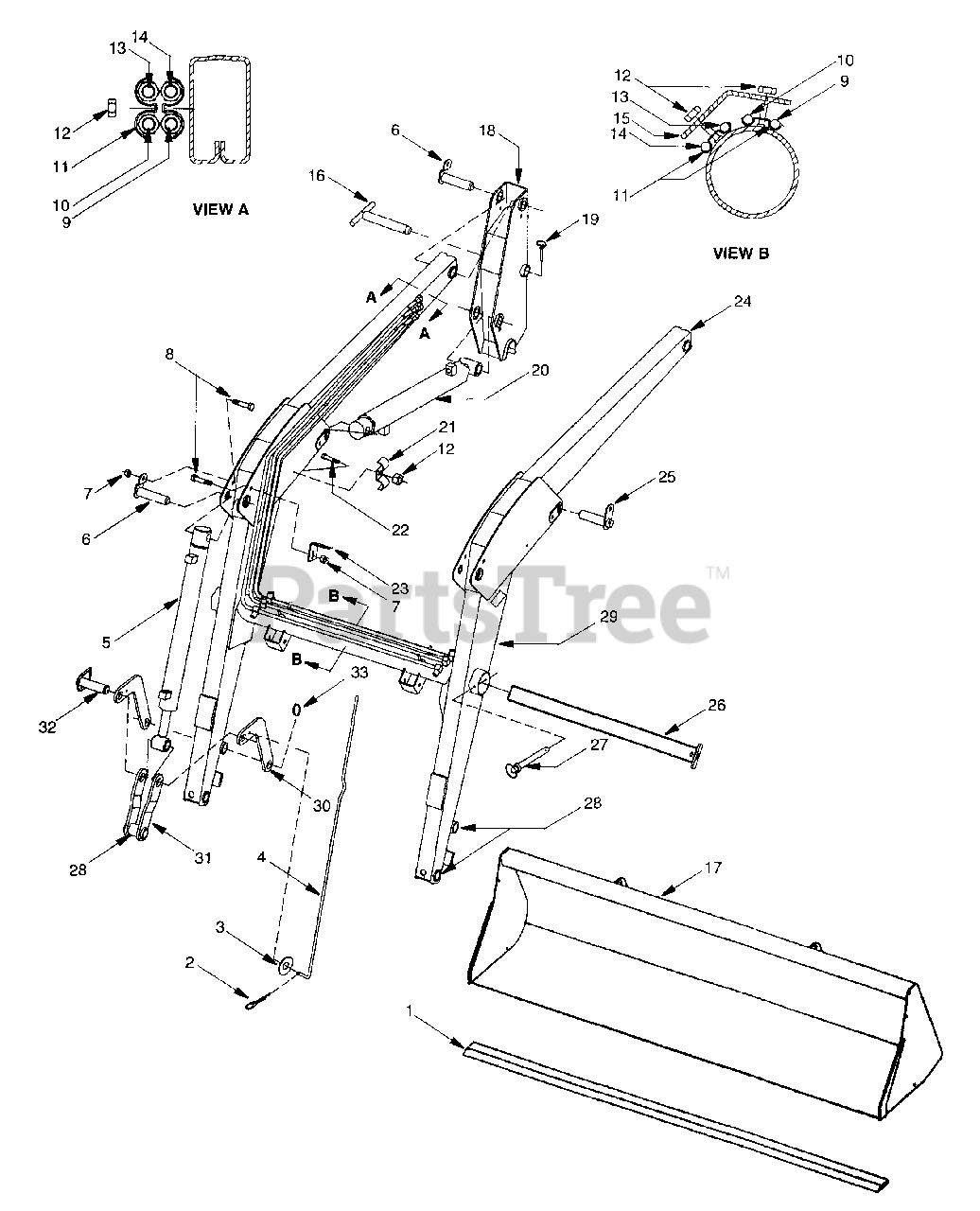

Loader And Bucket Assembly Parts Diagram

  • Title

1

Cub Cadet WM-56377

66" Cutting Edge

Note: (Requires Welding)

$

$

Not available

2

Cub Cadet WM-3597

Cotter Pin, 1/8 x 1

Note: Obtain Locally

$

$

Currently unavailable

3

Cub Cadet WM-21757

Flat Washer, 3/8

Note: Obtain Locally

$

$

Not available

4

Cub Cadet WM-56468

Level Indicator Rod

$

$

Not available

5

Cub Cadet WM-56446

Hydraulic Cylinder-Bucket, 2.0 x 1.0 x 16.75
(Superseded to WM-46670)

$

$

Not available

6

Cub Cadet WM-56074

Pin Weldment, 1.25 x 4.58

$

$

Not available

7

Cub Cadet WM-6698

Locknut, 3/8
(Superseded to 912-3000)

Note: Obtain Locally

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet WM-6697

Carriage Bolt, GR5 3/8 x 1

Note: Obtain Locally

$

$

Not available

9

Cub Cadet WM-56405

Feedline, Boom, Cylinder Rod

$

$

Not available

10

Cub Cadet WM-56407

Feedline, Boom, Cylinder Base

$

$

Not available

11

Cub Cadet WM-258

Feedline Clamp, 1/2

$

$

Not available

12

Cub Cadet WM-14139

Flanged Lock Nut, 5/16

Note: Obtain Locally

$

$

Not available

13

Cub Cadet WM-56406

Feedline, Bucket, Cylinder Rod

$

$

Not available

14

Cub Cadet WM-56404

Feedline, Bucket, Cylinder Base

$

$

Not available

15

Cub Cadet WM-56178

Feedline Cover

$

$

Not available

16

Cub Cadet WM-56075

Pull Pin, 1.25 Dia. w/Lynch Pin

$

$

Not available

17

Cub Cadet WM-56355

Bucket, 66"
(Superseded to WM-2270066)

$

$

Not available

18

Cub Cadet WM-56340

Right Upright

$

$

Not available

Cub Cadet WM-56341

Left Upright

Note: (Not Shown)

$

$

Not available

19

Cub Cadet WM-62043

Klik Pin, .25

Note: (Included w/#16); Obtain Locally

$

$

Not available

20

Cub Cadet WM-56444

Hydraulic Cylinder, Boom, 2.0 x 1.25 x 19.75

$

$

Not available

21

Cub Cadet WM-56

Feedline Clamp, 5/8

$

$

Not available

22

Cub Cadet WM-6096

Hex Cap Screw, GR5 5/16 x 3/4
(Superseded to 710-3008)

Note: Obtain Locally

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet WM-56030

Bucket Level Indicator Bracket

$

$

Not available

24

Cub Cadet WM-7500

Grease Fitting, 1/4-28 x 90

Note: Obtain Locally

$

$

Currently unavailable

25

Cub Cadet WM-56383

Pin Weldment

$

$

Not available

26

Cub Cadet WM-56463

Parking Stand Weldment

$

$

Not available

27

Cub Cadet WM-489041

Cotterless Hitch Pin

Note: Obtain Locally

$

$

Not available

28

Cub Cadet WM-7501

Grease Fitting, 1/4-28

Note: Obtain Locally

$

$

Not available

29

Cub Cadet WM-56312

Boom Weldment

$

$

Not available

30

Cub Cadet WM-56410

Guide Link

$

$

Not available

31

Cub Cadet WM-56012

Bucket Link Weldment

$

$

Not available

32

Cub Cadet WM-56221

Pin (Bucket Link)

$

$

Not available

33

Cub Cadet WM-40

Snap Ring

$

$

Not available

Cub Cadet WM-89

Nylon Cable Ties

Note: (Not Shown); Obtain Locally

$

$

Currently unavailable

Cub Cadet WM-56067

English Safety Decal Set

Note: (Not Shown)

$

$

Not available

Cub Cadet WM-56138

French Safety Decal Set

Note: (Not Shown)

$

$

Currently unavailable

Cub Cadet WM-52332

Cub Cadet 485 Decal (RH)

$

$

Not available

Cub Cadet WM-52333

Cub Cadet 485 Decal (LH)

$

$

Not available
