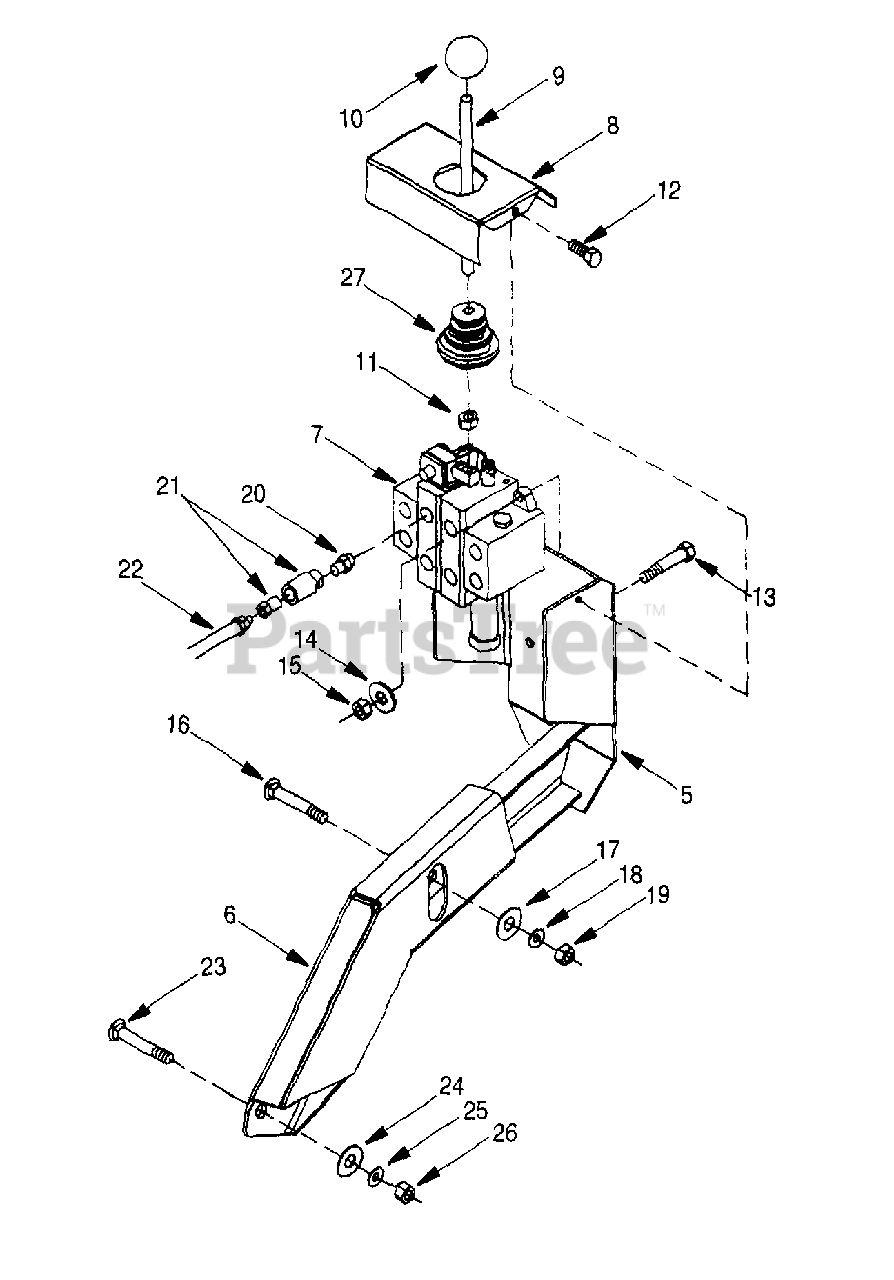

485 (590-485-100) - Cub Cadet Loader Control Valve Kit Parts Diagram

Loader

Control Valve Kit Parts Diagram

  • Title

5

Cub Cadet WM-56201

Valve Bracket

$

$

Not available

6

Cub Cadet WM-58046

Valve Adjustment Channel - Offset

$

$

Not available

7

Control Valve

$

$

Not available

8

Cub Cadet WM-56212

Cover

$

$

Not available

9

Cub Cadet WM-56254

Handle

$

$

Not available

10

Cub Cadet WM-37672

Knob

$

$

Not available

11

Cub Cadet WM-13859

1/2 NC Jam Nut
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet WM-30036

5/16 NC x .75 Self Tap Screw

$

$

Not available

13

Cub Cadet WM-12169

3/8 NC x 1.25 Hex Hd Cap Screw GR5

$

$

Not available

14

Cub Cadet WM-838

3/8 Lockwasher

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet WM-835

3/8 NC Nut
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

16

Cub Cadet WM-29893

1/2 NC x 1.5 Carriage Bolt

$

$

Not available

17

Cub Cadet WM-3598

112 Washer

$

$

Currently unavailable

18

Cub Cadet WM-855

1/2 Lockwasher
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

19

Cub Cadet WM-1093

1/2 NC Nut
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet WM-315043

3/8 NPT Male Adapter Fitting

$

$

Not available

21

Cub Cadet WM-316007

3/8 Hydraulic Coupler Set
(Superseded to WM-31-6007)

$153.99

$

Usually ships in 3-6 days

0

22

Cub Cadet WM-56095

Loader Feed Hose

$

$

Not available

23

Cub Cadet WM-5607

5/8 NC x 1.5 Carriage Bolt

$

$

Not available

24

Cub Cadet WM-3632

5/8 Washer

$

$

Currently unavailable

25

Cub Cadet WM-1286

5/8 Lockwasher

$

$

Not available

26

Cub Cadet WM-230

5/8 NC Nut
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet WM-37765

Rubber Control Boot

$

$

Not available
