484 (590-484-100) - Cub Cadet 84" Mower Deck, Rear Mount att Blade & Spindle Assembly Parts Diagram

84" Mower Deck, Rear Mount

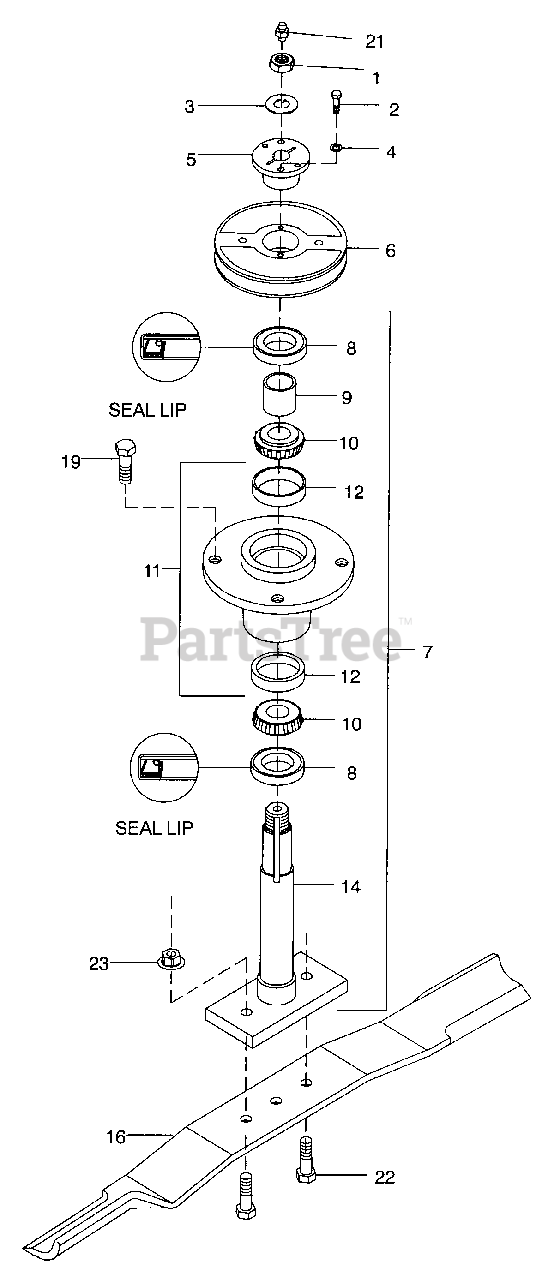

Blade & Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet WM-37009

7/8-18 UNF Hex jam nut

$

$

Not available

2

Cub Cadet WM-10378

1/4 NC x 1 Hex head cap screw GR5

Note: NLA

$

$

Currently unavailable

3

Cub Cadet WM-52898

.929 x 1.41 Lockwasher

$

$

Not available

4

Cub Cadet 936-0329

1/4 Standard lockwasher

Note: Obtain Locally

$4.49

$

In Stock, Qty 11

0

5

Cub Cadet WM-34440

H 1" Straight bore bushing with key P.I.

Note: Obtain Locally

$

$

Not available

6

Cub Cadet WM-12622

Sheave, Model 483

$116.99

$

Usually ships in 3-6 days

0

6

Cub Cadet WM-53419

Sheave, Model 484

$

$

Not available

7

Cub Cadet WM-52881

Spindle assembly

$

$

Not available

8

Cub Cadet WM-52949

Seal

$

$

Not available

9

Cub Cadet WM-52872

Sleeve

$

$

Not available

10

Cub Cadet WM-29899

Bearing cone

$36.99

$

Usually ships in 3-6 days

0

11

Cub Cadet WM-52882

Spindle housing with cups

$

$

Not available

12

Cub Cadet WM-29898

Bearing cup

$

$

Not available

14

Cub Cadet WM-52852

Spindle shaft with keyway

$

$

Not available

16

Cub Cadet WM-53417KT

CW High-suction blade Model 484

$

$

Not available

16

Cub Cadet WM-1008199KT

CW High-suction blade Model 483

$

$

Not available

19

Cub Cadet WM-4358

1/2 NF x 1-1/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

21

Cub Cadet 937-0146

1/4-28 Tapered

Note: Obtain Locally

$5.49

$

In Stock, only 2 left!

0

22

Cub Cadet WM-3379

1/2 NC x 1-1/2 Hex head cap screw GR5

Note: Obtain Locally

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet WM-11900

1/2 NC Hex flange locknut

Note: Obtain Locally

$5.49

$

In Stock, only 1 left!

0
