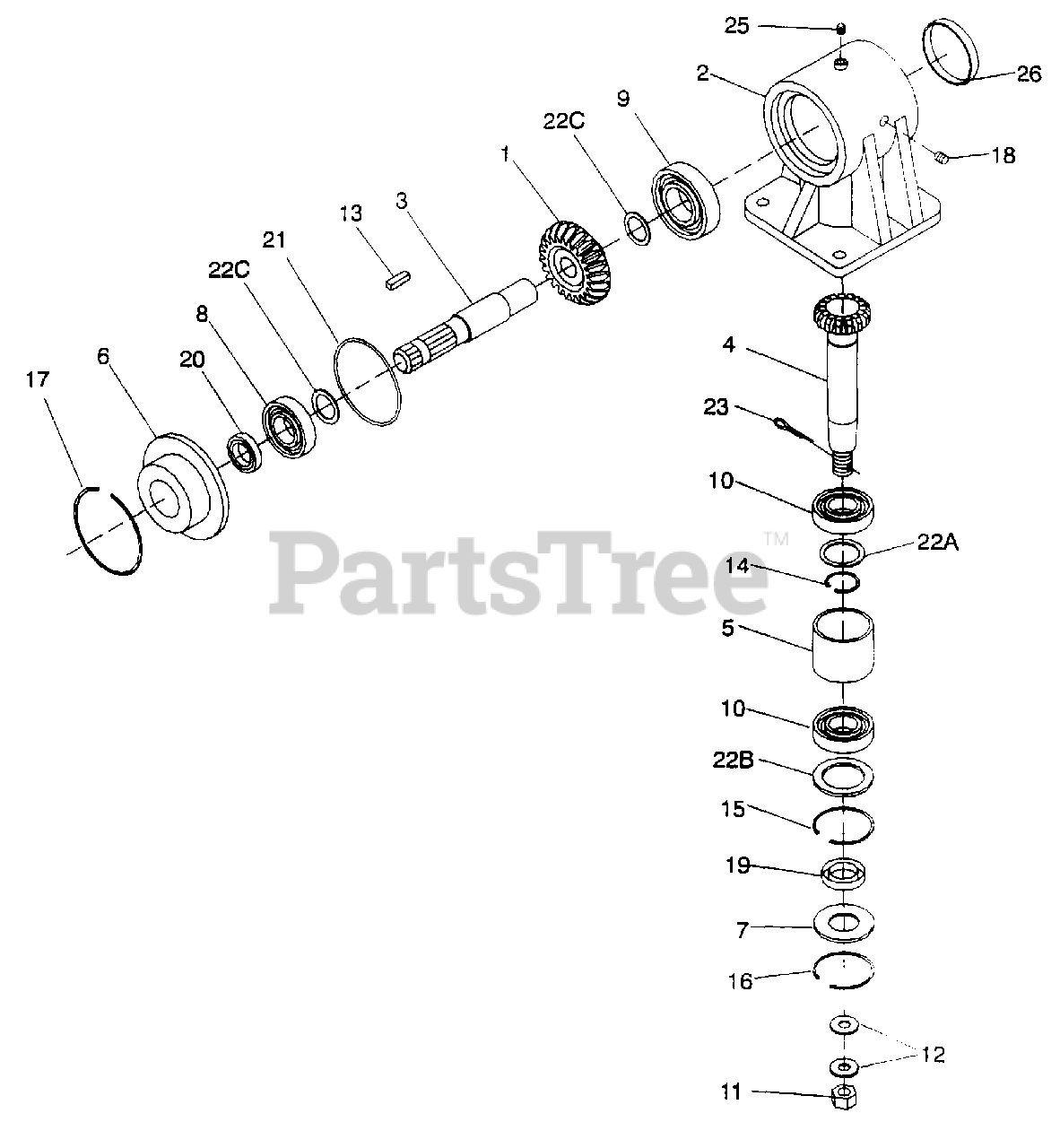

483 (590-483-100) - Cub Cadet 72" Mower Deck, Rear Mount Gearbox Assembly Parts Diagram

72" Mower Deck, Rear Mount

Gearbox Assembly Parts Diagram

  • Title

1

Cub Cadet WM-53593

1:1.92 Gearbox with decal
(Superseded to WM-1002499)

$

$

Not available

1

Cub Cadet WM-51949

1.38 x 4.5 x 237 Gear

$

$

Not available

2

Gearbox housing

Note: (Not sold separately)

$

$

Not available

3

Cub Cadet WM-51945

.887 Input shaft

$

$

Not available

4

Cub Cadet WM-51944

3.0 x 12T Pinion shaft

$

$

Not available

5

Cub Cadet WM-20886

2.76 x 3.00 x 3.3 Spacer

$

$

Not available

6

Cub Cadet WM-53594

Gearbox cover with decal

$

$

Not available

7

Cub Cadet WM-20888

1.58 x 3.13 x .04 Washer

$

$

Not available

8

Cub Cadet WM-51850

Ball bearing 6007

$

$

Not available

9

Cub Cadet WM-20890

Ball bearing 6207

$

$

Not available

10

Cub Cadet WM-20891

Ball bearing 6208

$

$

Not available

11

Cub Cadet WM-51946

M24 x 2 Castle nut

$

$

Not available

12

Cub Cadet WM-20893

25mm x 44mm x 4mm Washer

$

$

Not available

13

Cub Cadet WM-20894

8mm x 10mm x 30mm Key

$

$

Not available

14

Cub Cadet WM-20895

45mm Retaining ring

$

$

Not available

15

Cub Cadet WM-39251

2.9mm x 80mm Internal retaining ring

$

$

Not available

16

Cub Cadet WM-20897

81mm Internal retaining ring

$

$

Not available

17

Cub Cadet WM-20898

125mm Internal retaining ring

$

$

Not available

18

Cub Cadet WM-65294

3/8 NPT Square head pipe plug

Note: Obtain Locally

$

$

Currently unavailable

19

Cub Cadet WM-20900

40 x 80 x 12 Metric seal

$

$

Not available

20

Cub Cadet 20901

35 x 52 x 7 Metric seal

$

$

Currently unavailable

21

Cub Cadet WM-20902

.13 x 4.88 OD O-Ring seal

$

$

Not available

?22

Cub Cadet WM-20896

Shim kit

Note: (Includes items A-C)

$

$

Not available

22A

40.3mm x 51.5mm Shim

$

$

Not available

22B

69.0mm x 79.9mm Shim

$

$

Not available

22C

35.3mm x 48.0mm Shim

$

$

Not available

23

Cub Cadet WM-64803

3/16 x 2 Cotter pin

Note: Obtain Locally

$

$

Currently unavailable

25

Cub Cadet WM-39325

3/8 NPT Vent plug

$

$

Not available

26

Cub Cadet WM-53592

Cap, 52mm dia. x 7mm

$

$

Not available
