483 (590-483-100) - Cub Cadet 72" Mower Deck, Rear Mount att Main Frame Assembly Parts Diagram

72" Mower Deck, Rear Mount

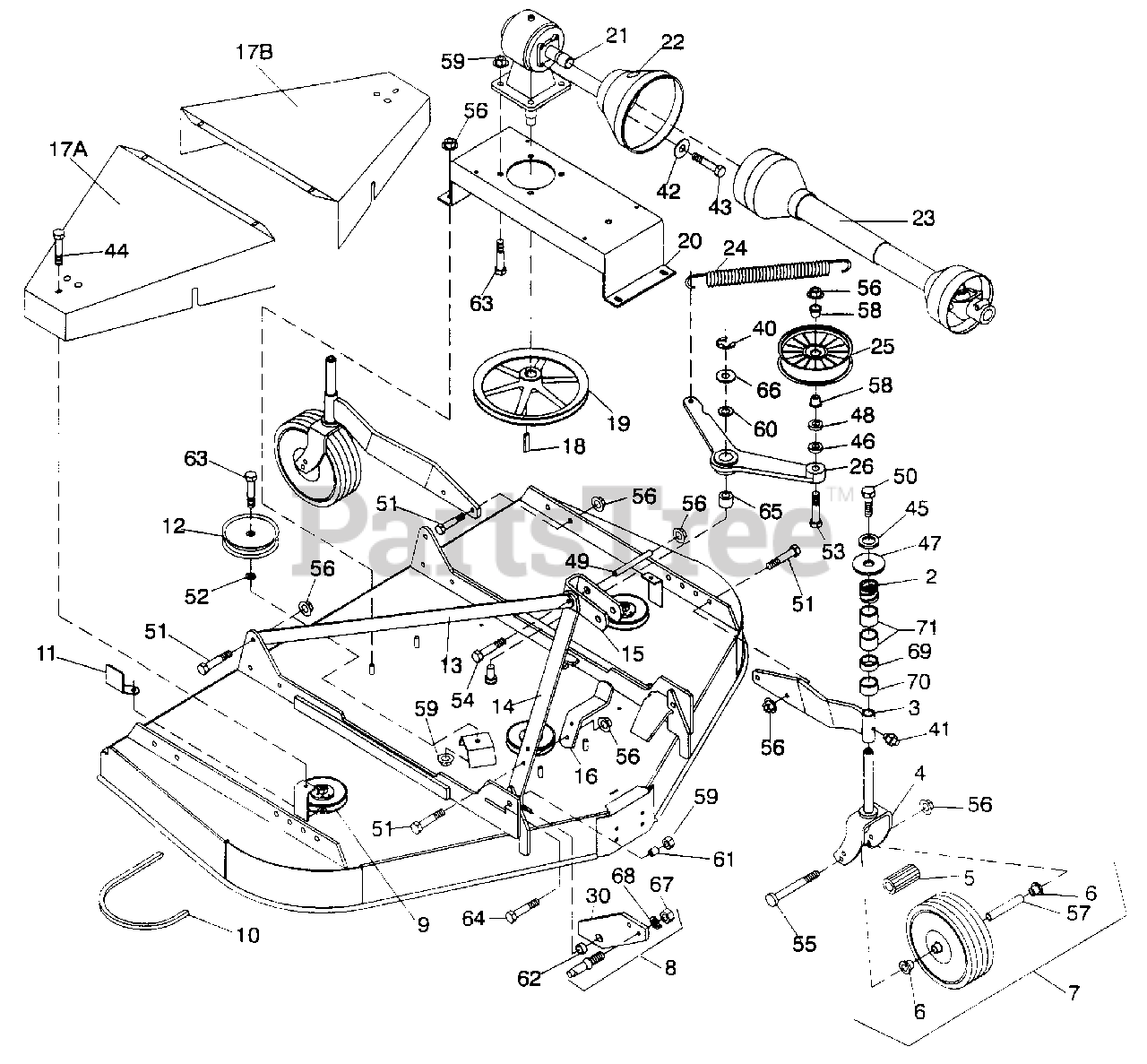

Main Frame Assembly Parts Diagram

  • Title

?1

Main frame

Note: (Not sold separately)

$

$

Not available

2

Cub Cadet WM-67407

Compression spring

$

$

Not available

3

Cub Cadet WM-53562

Caster arm assembly - Right

$

$

Not available

3

Cub Cadet WM-53563

Caster arm assembly - Left

$

$

Not available

4

Cub Cadet WM-67318

Model 483 Caster shaft and yoke assembly

$

$

Not available

5

Cub Cadet WM-34466

Roller bearing .75 x 1.38 x 1.5

$

$

Not available

6

Cub Cadet WM-65577

3/4 x 1.415 Flanged wheel bearing with groove

$

$

Not available

7

Cub Cadet WM-18989

10" Heavy-duty wheel w/bearing & sleeve

Note: (Includes items 5, 6 & 57)

$182.99

$

Usually ships in 3-6 days

0

8

Cub Cadet WM-33661

Category 1 mounting pin with nut and lockwasher

$

$

Not available

9

CW Spindle assembly

Note: (See "Blade and Spindle" illustration and parts list.)

$

$

Not available

10

Cub Cadet WM-18879

V-Belt

Note: (For Model 483 only)

$

$

Not available

11

Cub Cadet WM-53567

Belt guide, 8 GA formed

$

$

Not available

12

Cub Cadet WM-64555

Flat idler, 5.5" Dia.

$

$

Not available

13

Cub Cadet WM-19578

Offset link

$

$

Not available

14

Cub Cadet WM-19579

Offset link

$

$

Not available

15

Cub Cadet WM-19605

U-Link, .38 x 2.5 x 7.13

$

$

Not available

16

Cub Cadet WM-52893

PTO Hanger bracket

$

$

Not available

17A

Cub Cadet WM-53539

Right belt shield

$

$

Not available

17B

Cub Cadet WM-53539

Left belt shield

$

$

Not available

18

Cub Cadet WM-29792

1/4 x 1/4 x 1-1/4 HT Key

$

$

Not available

19

Cub Cadet WM-65197

12.4 PD Sheave

$

$

Not available

20

Cub Cadet WM-53534

Gearbox stand

$

$

Not available

21

Cub Cadet WM-53593

1:1.92 Gearbox
(Superseded to WM-1002499)

Note: (See "Gearbox" illustration and parts list)

$

$

Not available

22

Cub Cadet WM-51849

Counter cone shield

$

$

Not available

23

Cub Cadet WM-53557

Drive assembly complete 40, 29.1 x 45.1
(Superseded to WM-40551)

Note: (See "Driveshaft" illustration and parts list for detail)

$

$

Not available

24

Cub Cadet WM-67131

Extension spring
(Superseded to WM-1042375)

$43.99

$

Usually ships in 3-6 days

0

25

Cub Cadet WM-53595

Model 483 Idler and bearing

$

$

Not available

26

Cub Cadet WM-67288

Idler arm assembly

Note: (Includes item #65)

$149.99

$

Usually ships in 3-6 days

0

30

Cub Cadet WM-18824

Hitch plate

$

$

Not available

40

Cub Cadet WM-35139

.050 x .75 External retainer ring

$

$

Not available

41

Cub Cadet WM-12296

1/4-28 Grease fitting

Note: Obtain Locally

$

$

Currently unavailable

42

Cub Cadet WM-4378

5/16 Flat washer

Note: Obtain Locally

$

$

Currently unavailable

43

Cub Cadet WM-39254

8mm x 1.25P x 16mm Hexhead cap screw CL8.8

$

$

Not available

44

Cub Cadet WM-62153

Whiz bolt, .375-16 x 1 flanged

$

$

Not available

45

Cub Cadet WM-855

1/2 Lockwasher
(Superseded to 936-0921)

Note: Obtain Locally

$4.49

$

In Stock, Qty 6

0

46

Cub Cadet WM-24537

1/2 x 1-3/8 x 3/8 Flat washer

$

$

Not available

47

Cub Cadet WM-33677

1/2 x 10GA Washer

$

$

Not available

48

Cub Cadet WM-31983

.50 x 18GA Shim washer

$

$

Not available

49

Cub Cadet WM-64814

1/2 x 2.75 pipe

$

$

Not available

50

Cub Cadet WM-6100

1/2 NC x 1-1/4 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

51

Cub Cadet WM-24576

1/2 NC x 1-3/4 Hex head cap screw GR5

$

$

Not available

52

Cub Cadet WM-1517

5/8 x 7 GA Flat washer

$

$

Not available

53

Cub Cadet WM-639

1/2 NC x 2-1/2 Hex head cap screw GR5

Note: Obtain Locally

$

$

Currently unavailable

54

Cub Cadet WM-29561

1/2 NC x 4-3/4 Hex head cap screw GR5

$

$

Not available

55

Cub Cadet WM-23479

1/2 x 5 Hex head cap screw GR5

$4.99

$

In Stock, only 3 left!

0

56

Cub Cadet WM-11900

1/2 NC Flanged locknut

Note: Obtain Locally

$5.49

$

In Stock, only 1 left!

0

57

Cub Cadet WM-29368

1/2 x 3/4 x 3-3/8 Sleeve

$18.99

$

In Stock, Qty 7

0

58

Cub Cadet WM-53598

.51 x .67 x .36 Flanged sleeve

Note: (Model 484)

$

$

Currently unavailable

59

Cub Cadet WM-19025

5/8 NC Flanged locknut

$

$

Not available

60

Cub Cadet WM-22060

5/8 x 1 x 1/4 Felt seal

$

$

Not available

61

Cub Cadet WM-484

5/8 x 1 x 7/16 HT Sleeve

$

$

Not available

62

Cub Cadet WM-1791

5/8 x 1 x 9/16 HT Sleeve

$

$

Not available

63

Cub Cadet WM-19024

5/8 x 1-3/4 Flanged hex head cap screw

$

$

Not available

64

Cub Cadet WM-34473

5/8 NC x 3 Hex head cap screw GR5

$

$

Currently unavailable

65

Cub Cadet WM-35145

3/4 x 1 x 1 Oilite bushing

$

$

Not available

66

Cub Cadet WM-24741

3/4 x 16GA Flat washer

$

$

Not available

67

Cub Cadet WM-30007

7/8 NF Hex nut

Note: Obtain Locally

$

$

Currently unavailable

68

Cub Cadet WM-30008

7/8 Lockwasher
(Superseded to 936-0171)

Note: Obtain Locally

$4.49

$

In Stock, only 4 left!

0

69

Cub Cadet WM-33647

1" x .75 pipe

$

$

Not available

70

Cub Cadet WM-65129

1-1/4" x .50 Pipe

$

$

Not available

71

Cub Cadet WM-65130

1" x 1.00 pipe

$9.49

$

In Stock, only 2 left!

0

Cub Cadet WM-53591

English safety decal set

$

$

Not available
