48266 - Simplicity 61" E-Z Dump Collection System E-Z Dump Mount Group Parts Diagram

61" E-Z Dump Collection System

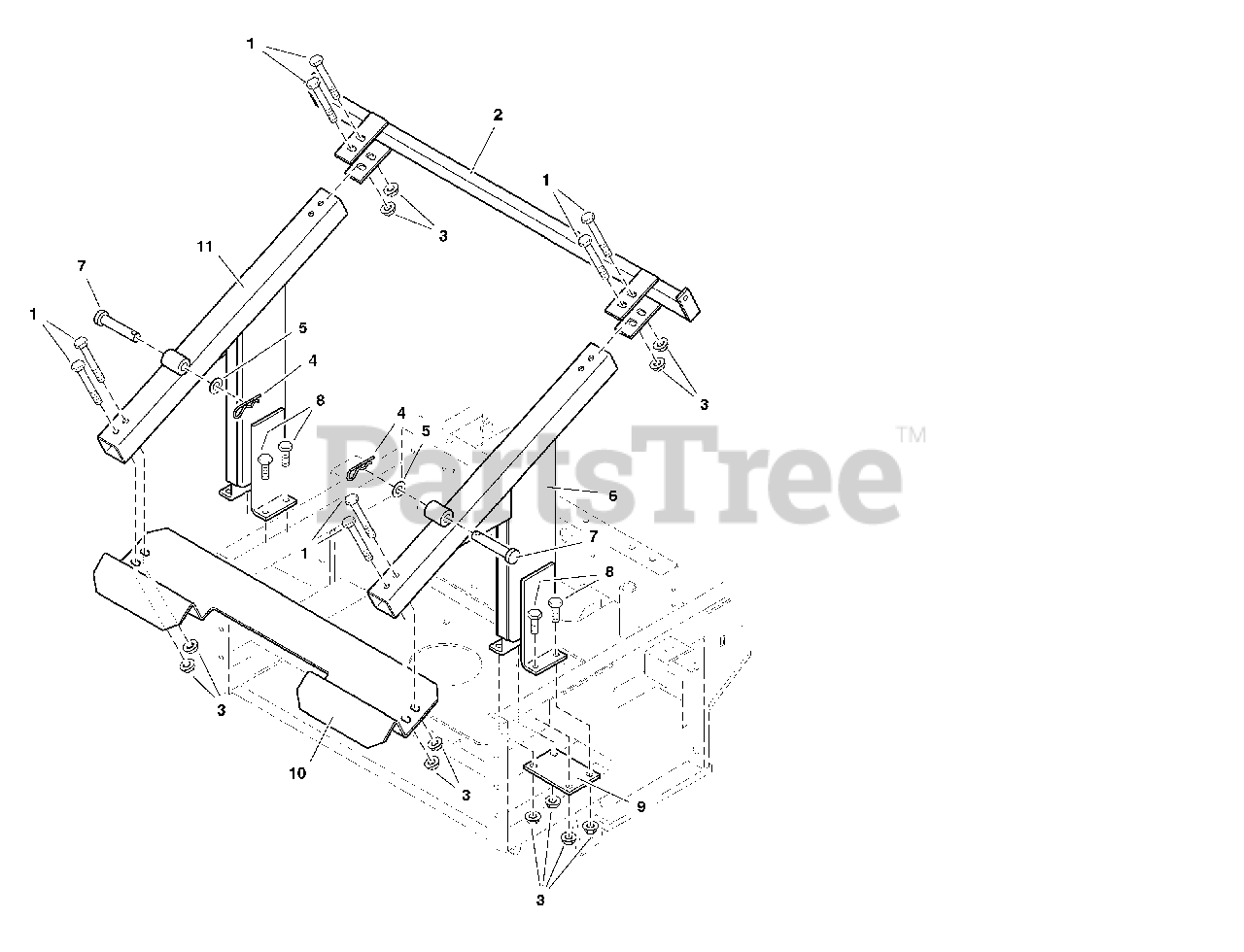

E-Z Dump Mount Group Parts Diagram

  • Title

1

Simplicity 5025013X24

BOLT, 3/8-16 x 3
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

2

Simplicity 5048202A

FRONT CROSS MEMBER

$130.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

4

Simplicity K0088

HAIRPIN CLIP

$

$

Currently unavailable

5

Simplicity 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 8

0

6

Simplicity 5048212A

FRAME UPRIGHT - RH

$92.99

$

Usually ships in 2-12 days

0

7

Simplicity K0172

PIN, Clevis, 5/8 x 3

$

$

Currently unavailable

8

Simplicity 5025013X10

BOLT, 3/8-16 x 1-1/4
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

9

Simplicity 5048205A

BOTTOM BRACE

$

$

Currently unavailable

10

Simplicity 5048207A

REAR CROSS SUPPORT

$

$

Currently unavailable

11

Simplicity 5048213A

FRAME UPRIGHT - LH

$92.99

$

Usually ships in 2-12 days

0
