482 (2050597U) - Cub Cadet Garden Tractor Battery, Switches, Cables & Clips-SN 719999 And Parts Diagram

Garden Tractor

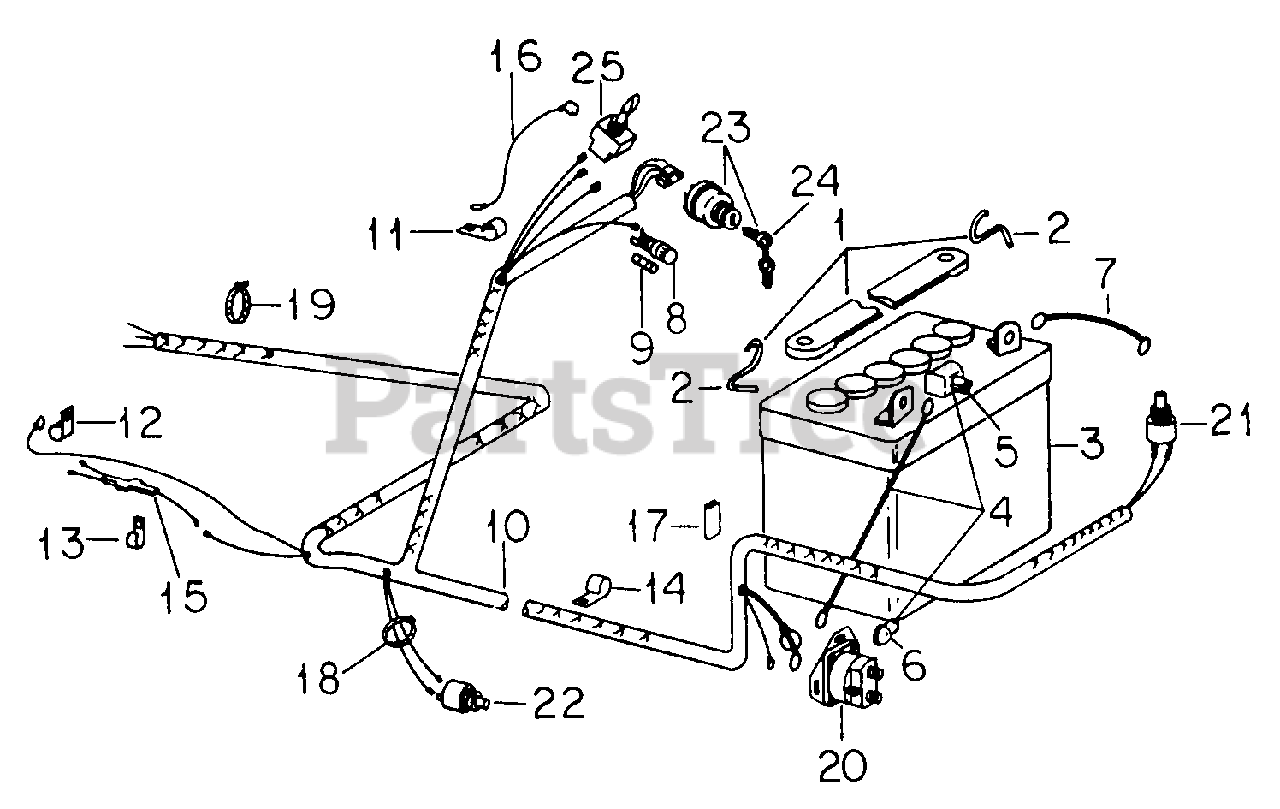

Battery, Switches, Cables & Clips-SN 719999 And Parts Diagram

  • Title

1

Cub Cadet 703-0017

Strap Assy, Battery
(Superseded to 903-0017)

$20.99

$

Usually ships in 3-6 days

0

2

Hook, Battery Strap

Note: (Order 703-0017 Strap Assy)

$

$

Not available

3

Cub Cadet IH-PRLU

Battery, IH Low-Maintenance, 12 Volt
(Superseded to 925-1707D)

$

$

Not available

4

Cub Cadet 725-3078

Cable, Battery, Positive
(Superseded to 925-3078)

$

$

Not available

Cub Cadet 710-0451

Bolt, 5/16 X 3/4 Crg Type 1

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3007

Washer, 5/16 Ext Int Tooth Lock

$

$

Not available

5

Cub Cadet 725-3007

Cover, Battery Terminal

$

$

Not available

6

Cub Cadet 725-3008

Insulator, Terminal Boot

$

$

Not available

7

Cub Cadet 725-0978

Cable, Battery, Negative Terminal to Ground
(Superseded to 925-0978)

$

$

Not available

Cub Cadet 710-0703

Bolt, 1/4 X 3/4 Crg Type 1

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 17

0

8

Cub Cadet 725-3011

Holder Assy, Fuse
(Superseded to 925-3011)

$21.99

$

In Stock, Qty 7

0

Cub Cadet IH-356445-R91

Knob, Fuse Holder

$13.99

$

In Stock, only 1 left!

0

9

Cub Cadet 725-3012

Fuse, 10 Amp
(Superseded to 925-3012)

$6.49

$

In Stock, only 2 left!

0

10

Cub Cadet 725-3013

Harness Assy, Cable

$

$

Not available

Cub Cadet 710-3015

Bolt, 1/4 X 3/4 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 17

0

11

Cub Cadet 726-3006

Clip, Cable

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 17

0

12

Cub Cadet 726-3007

Clip, Cable, PTO Clutch

$

$

Not available

13

Cub Cadet 726-3008

Clip, Cable, Heat Shield & Frame

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 726-3009

Clip, Cable, LH Channel at X Member

$

$

Not available

15

Cub Cadet 725-3014

Diode Assy

$

$

Not available

16

Cub Cadet 725-3015

Cable, PTO Switch Ground

$

$

Not available

17

Not used in this application

$

$

Not available

18

Cub Cadet 726-3010

Strap, Cable Tie

$

$

Not available

19

Cub Cadet 726-3011

Strap, Cable Lock

$

$

Not available

20

Cub Cadet 725-3001

Switch, Magnetic
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0267

Nut, 5/16 Type 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0349

Nut, No. 10-NF Mach Screw Type

$4.99

$

In Stock, Qty 5

0

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.99

$

In Stock, Qty 17

0

21

Cub Cadet 725-3003

Switch, Neutral Start, Normally Closed

$

$

Not available

Cub Cadet 735-3006

Boot, Neutral Start Switch

$

$

Not available

22

Cub Cadet 725-3060

Switch, Neutral Start, Normally Open
(Superseded to 925-3060)

$40.99

$

In Stock, only 2 left!

0

Cub Cadet 735-3006

Boot, Neutral Start Switch

$

$

Not available

23

Cub Cadet 725-3004

Switch Assy, Battery Ignition Key
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3013

Nut, Battery Ignition Switch

$

$

Not available

Cub Cadet 736-0156

Washer, .656 X 1.000 X .105

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 725-0201

Key, Ignition Switch
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

Cub Cadet 725-3005

Switch, PTO
(Superseded to 925-3005)

$

$

Not available

Cub Cadet 736-3003

Washer, 531 X .688 X .054 Pln

$

$

Not available

Cub Cadet 712-3014

Nut, Switch

$

$

Not available
