482 (2050581U) - Cub Cadet Garden Tractor Grille Parts Diagram

Garden Tractor

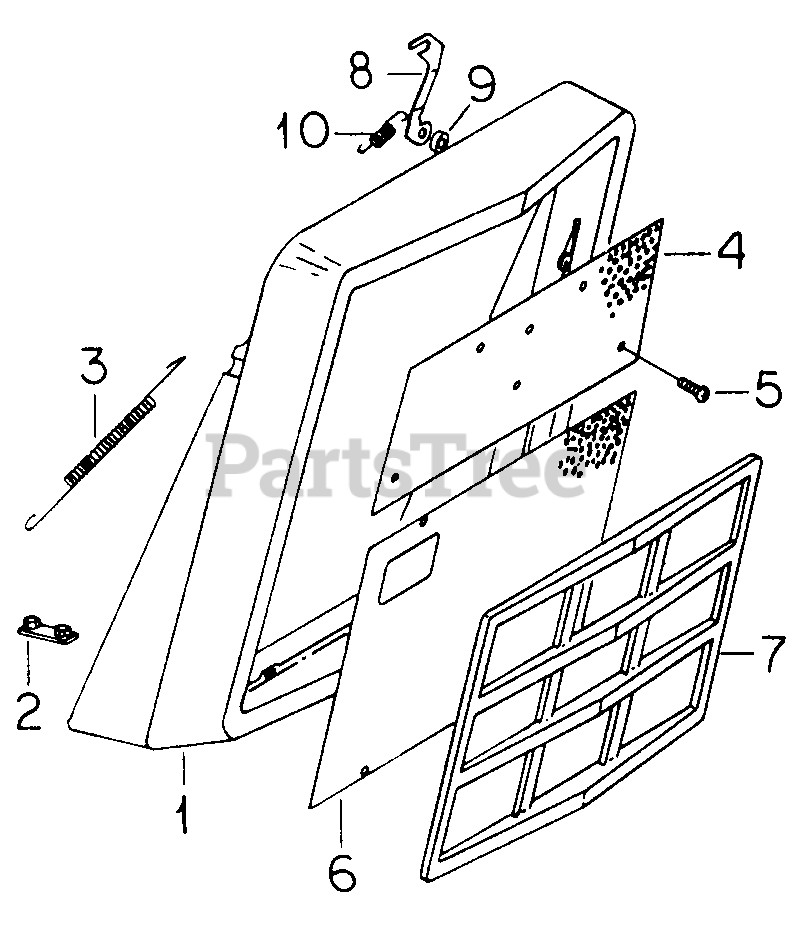

Grille Parts Diagram

  • Title

1

Cub Cadet 719-3002

Housing, Grille

$

$

Currently unavailable

2

Cub Cadet 703-0008

Retainer Assy, Grille Housing

$

$

Not available

Cub Cadet 710-0376

Bolt, 5/16 X 1 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-104354-C1

Spring

Note: (For Tractors w/Serial No. 665000 and Below)

$

$

Not available

Cub Cadet 732-3001

Spring
(Superseded to 932-3001)

Note: (For Tractors w/Serial No. 665001 and Above)

$16.99

$

In Stock, Qty 5

0

4

Cub Cadet 703-0002

Screen, Upper Grille

$

$

Not available

5

Cub Cadet 710-3003

Screw, Headlamp Mtg

$

$

Not available

Cub Cadet 712-0142

Nut, No. 8 Mach Screw Type 1

$4.49

$

In Stock, Qty 10

0

6

Not used in this application

$

$

Not available

7

Cub Cadet 719-3003

Grille

Note: (Replaces IH-140198-C1)

$

$

Currently unavailable

Cub Cadet 710-3090

Screw, No. 8 X 3/8 H/Whd Tap

Note: (For Tractors w/Serial No. 665000 and Below)

$

$

Not available

8

Cub Cadet 703-0010

Latch, Hood

$

$

Not available

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-3004

Screw, 5/16 X 3/4 H/Hd Tap
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 750-3000

Spacer, Hood Latch

$

$

Not available

10

Cub Cadet 732-3002

Spring
(Superseded to 932-3002)

$9.49

$

In Stock, only 2 left!

0
