482 (190-482-100) - Cub Cadet 32" Lawn Sweeper 32" Lawn Sweeper Parts Diagram

32" Lawn Sweeper

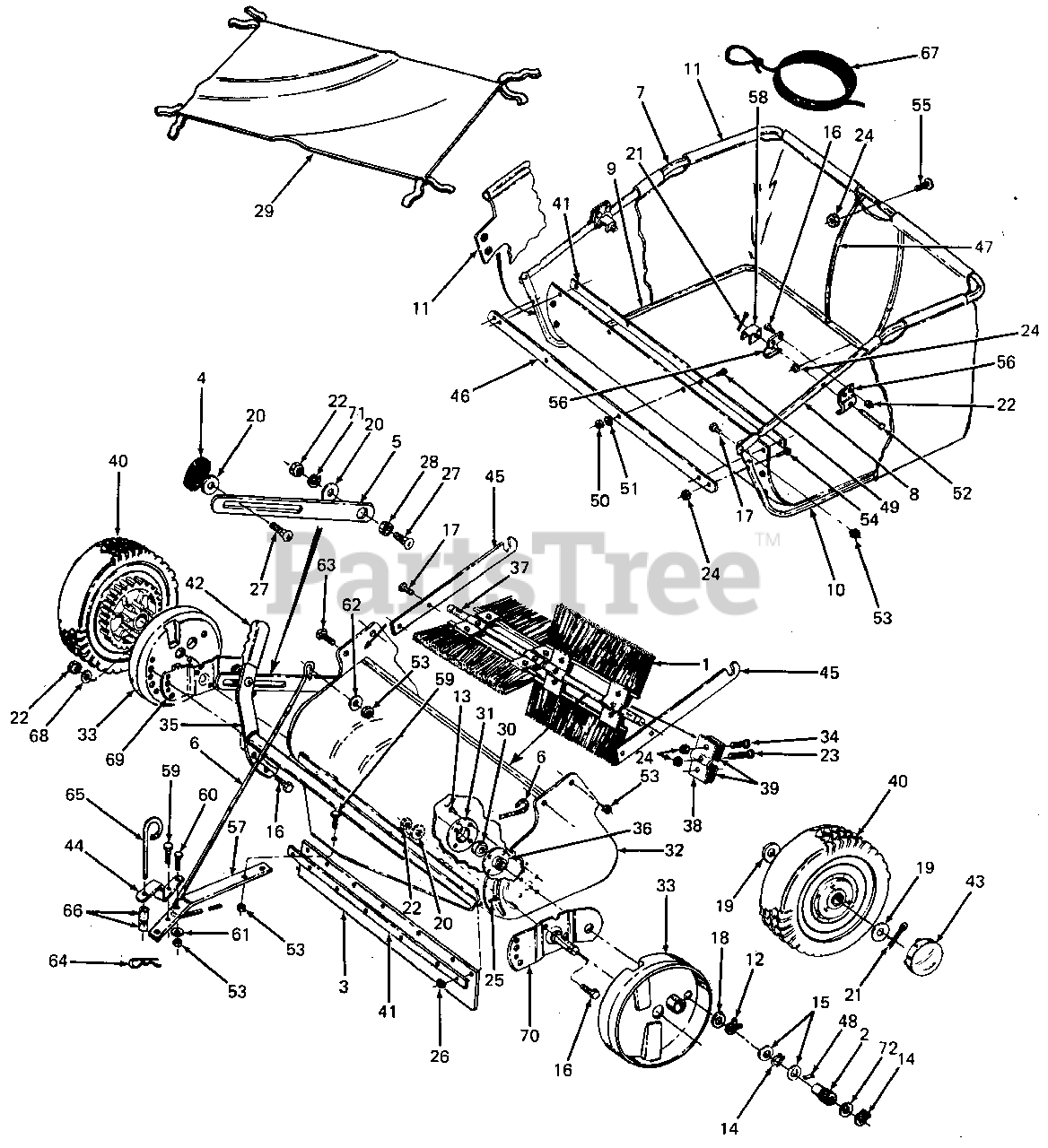

32" Lawn Sweeper Parts Diagram

  • Title

1

Cub Cadet AF-43903

Brush

$

$

Not available

2

Cub Cadet AF-43885

Gear, Pinion LH

$

$

Not available

Cub Cadet AF-43886

Gear, Pinion RH

$

$

Not available

3

Cub Cadet AF-43645

Skirt

$

$

Currently unavailable

4

Cub Cadet AF-43720

Knob, Height Adjustment

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet AF-23387

Strap, Height Adjustment

$

$

Not available

6

Cub Cadet AF-43979

Rod, Brace

$

$

Not available

7

Cub Cadet AF-43928

Tube, Upper Hopper RH

$

$

Not available

8

Cub Cadet AF-43927

Tube, Upper Hopper LH

$

$

Not available

9

Cub Cadet AF-43930

Tube, Lower Hopper RH

$

$

Not available

10

Cub Cadet AF-43929

Tube, Lower Hopper LH

$

$

Not available

11

Cub Cadet AF-43650

Bag, Hopper

$

$

Not available

12

Cub Cadet AF-43655

Ring, Retaining, 3/4"

$

$

Not available

13

Cub Cadet AF-C9M5732

Rivet

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 1650-021

Ring, Retaining
(Superseded to AF-1650-21)

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet AF-44007

Washer, Flat, .596 X 1.125 X .025
(Superseded to AF-44007P)

$

$

Not available

16

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR 5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

18

Cub Cadet AF-44008

Washer, .783 X 1.125 X .025
(Superseded to HG-44008)

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0369

Washer, .51 X 1.0 X .02

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0264

Washer, .344 X .62 X .063

$6.99

$

In Stock, only 2 left!

0

21

Cub Cadet 714-0474

Pin, Cotter, 1/8 X 3/4 Lg

$4.99

$

In Stock, Qty 13

0

22

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

23

Cub Cadet 710-0855

Screw, Hex Cap, 1/4-20 X 1.0 Lg
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

24

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-0473

Screw, Truss Mach., #10-24 X .50 Lg

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 712-0121

Nut, Hex, #10-24

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet AF-23400

Spacer, Bushing

$

$

Not available

29

Cub Cadet AF-43686

Screen, Wind

$

$

Not available

30

Cub Cadet 1652-013

Bearing, Ball

$

$

Not available

31

Cub Cadet AF-1629-056

Retainer, Bearing

$

$

Currently unavailable

32

Cub Cadet AF-62445

Housing Assy, Sweeper

$232.99

$

Usually ships in 3-6 days

0

33

Cub Cadet AF-43900

Cover, Dust

$

$

Not available

34

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet AF-62501

Tube Assy, Height Adjustment

$

$

Currently unavailable

36

Cub Cadet AF-62489

Bushing Assy, Brush

$

$

Not available

37

Cub Cadet AF-23569

Shaft, Brush

$

$

Not available

38

Cub Cadet AF-23580

Retainer, Brush (Double)

$12.99

$

In Stock, Qty 5

0

39

Cub Cadet AF-23581

Retainer, Brush (Single)

$13.99

$

In Stock, Qty 7

0

40

Cub Cadet AF-43985

Wheel Assy, Complete

$

$

Not available

41

Cub Cadet AF-23345

Retainer, Skirt

$

$

Currently unavailable

42

Cub Cadet AF-43943

Grip

$

$

Not available

43

Cub Cadet 2674-032

Hub Cap
(Superseded to AF-2674-32)

$

$

Not available

44

Cub Cadet AF-23014

Bracket, Hitch
(Superseded to AF-23014-0637)

Variations

Cub Cadet AF-23014-0637

Hitch Bracket - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

45

Cub Cadet AF-23330

Arm, Bag Mount

$

$

Not available

46

Cub Cadet AF-23351

Strap, Bag Frame

$

$

Currently unavailable

47

Cub Cadet AF-43926

Support, Wire

$27.99

$

In Stock, only 2 left!

0

48

Cub Cadet 1671-001

Pawl (H.T.)
(Superseded to AF-1671-1P)

$9.99

$

In Stock, only 1 left!

0

49

Cub Cadet AF-43346

Screw, Truss Hd, Slotted, #10-32 X .62 Lg

$2.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 712-0349

Nut, Hex Mach., #10-32

$4.99

$

In Stock, Qty 5

0

51

Cub Cadet 736-0722

Washer, Lock, #10

$6.99

$

Usually ships in 3-6 days

0

52

Cub Cadet AF-43513

Pin, Clevis, 3/8 Dia X 3" Lg

$

$

Not available

53

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

54

Cub Cadet 1509-090

Screw, Hex Cap, 1/4-20 X 1.25 Lg
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

55

Cub Cadet AF-43978

Bolt, Curved Head, 1/4-20 X 1.0 Lg

$3.99

$

Usually ships in 3-6 days

0

56

Cub Cadet AF-23331

Clamp, Hopper Mount

$

$

Not available

57

Cub Cadet AF-23349

Bar, Hitch

$

$

Currently unavailable

58

Cub Cadet AF-23354

Clevis, Bag Retainer

$

$

Not available

59

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR 5

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.5 Lg GR 5

$4.49

$

In Stock, Qty 5

0

61

Cub Cadet 736-0208

Washer, Flat, .510 X 1.5 X .08

$4.49

$

In Stock, Qty 9

0

62

Cub Cadet 736-0133

Washer, Flat, .406 X 1.25 X .100

$5.49

$

In Stock, Qty 7

0

63

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet AF-43343

Hairpin Cotter

$12.99

$

Usually ships in 3-6 days

0

65

Cub Cadet AF-23353

Pin, Hitch

$38.99

$

Usually ships in 3-6 days

0

66

Cub Cadet AF-23368

Tube, Hitch Adjustment

$15.99

$

Usually ships in 3-6 days

0

67

Cub Cadet AF-43737

Rope, Hopper

$

$

Not available

68

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062

$6.99

$

Usually ships in 3-6 days

0

69

Cub Cadet AF-62494

Hanger Assy, Wheel RH

$

$

Not available

70

Cub Cadet AF-62495

Hanger Assy, Wheel LH

$

$

Currently unavailable

71

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

Cub Cadet AF-44006

Washer, .596 X .859 X .025

$

$

Not available
