482 (143-482-399) - Cub Cadet Garden Tractor Starter Assembly Parts Diagram

Garden Tractor

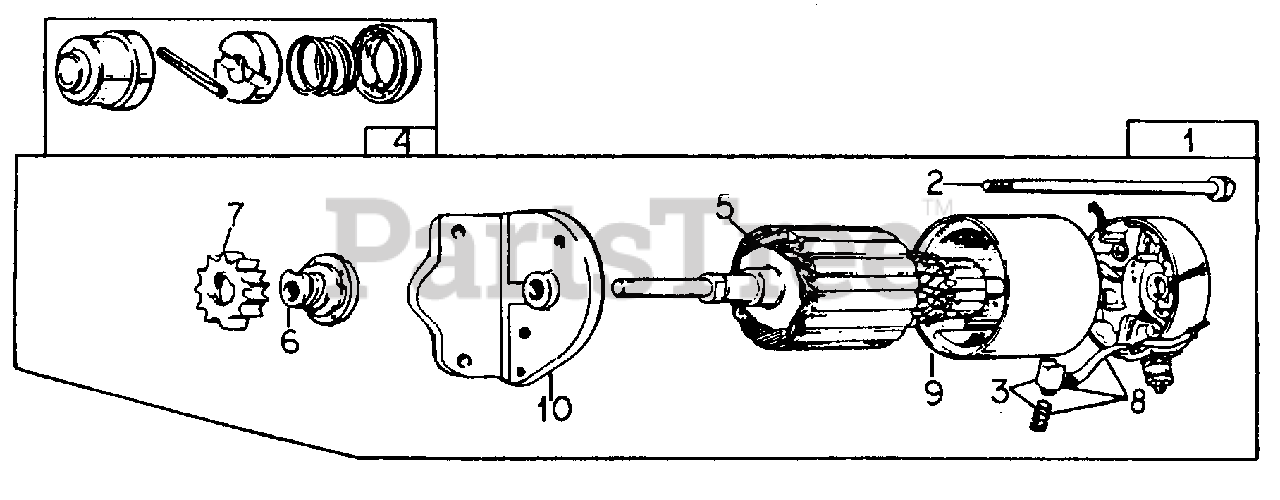

Starter Assembly Parts Diagram

  • Title
1

Starter Assy

Note: (Order Individual Components)

$

$

Not available

2

$

$

Not available

3

Cub Cadet BS-391705

Set, Brush

$59.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-490467

Kit, Pinion Spring
(Superseded to BS-696540)

$29.99

$

In Stock, Qty 18

0

5

Cub Cadet BS-392233

Armature Assy

$

$

Not available

6

Cub Cadet BS-398003

Clutch Assy, Starter
(Superseded to BS-692024)

$21.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-280104

Gear, Starter Clutch
(Superseded to BS-695708)

$6.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-391172

Cap Assy, End

$43.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

10

Cub Cadet BS-394857

Cap, Drive End

$56.99

$

Usually ships in 2-12 days

0

Cub Cadet 710-0118

Bolt, 5/16 X 3/4 Type 5
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0
