4816 F (556C565M100) - Cub Cadet Walk-Behind Mower (SN: 503791 & Above) Cradle Assembly Parts Diagram

Walk-Behind Mower

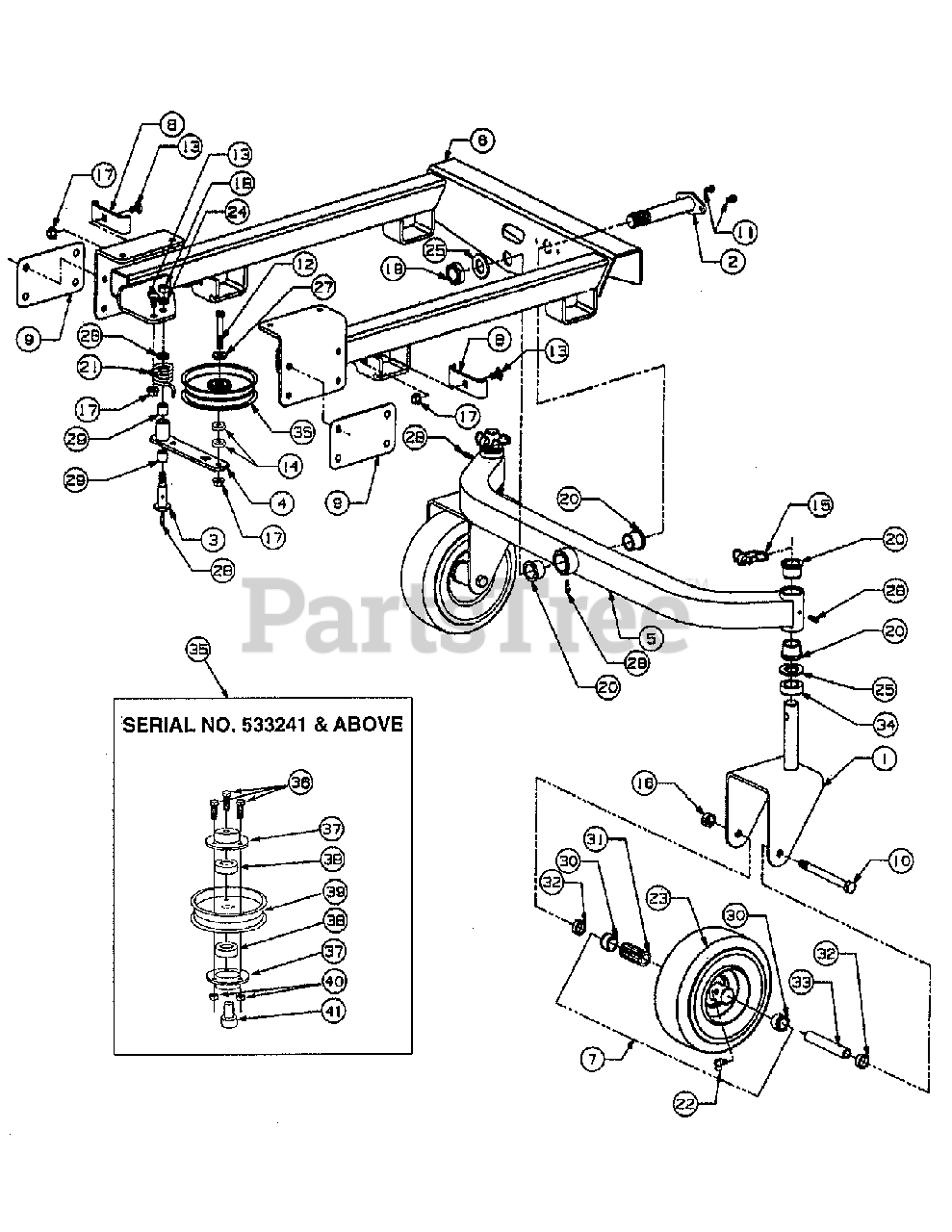

Cradle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0047

Fork, Caster
(Superseded to 01006145)

Variations

Cub Cadet 603-0047-0498

USE 01006145 FORK-CASTER - OLD CUB YELLOW (0498)

$126.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0053

Pin, Axle Pivot

$

$

Not available

3

Cub Cadet 738-3108

Bolt, Shoulder
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

4

Cub Cadet 603-0209

Arm Assembly, Idler

Note: (Incl. Ref No. 29 Qty 2)

$

$

Not available

5

Cub Cadet 603-0107

Axle Assembly, Front

Note: (Incl. Ref No.20-Qty 6, & 28-Qty 3)

$

$

Not available

6

Cub Cadet 603-0145

Cradel Assembly, Floating

Variations

Cub Cadet 603-0145-0498

CRADLE ASSEMBLY-FLOAT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

6

Cub Cadet 710-3168

Bolt, Sht Nk Carriage, 3/8-16 x 1.00 Gr 5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0431

Nut, Hex Flanged Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 634-3026

Wheel Assembly, Caster

$238.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2432

Stop, Wear Bar
(Superseded to 01006136)

$

$

Not available

9

Cub Cadet 703-2697

Spacer

$

$

Not available

10

Cub Cadet 710-0506

Screw, Hex Cap, 1/2-20 x 5.50

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0599

Screw, Hex Wash Hd TT-Tap,1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0859

Screw, Hex Cap, 3/8-16 x 2.5 Gr 5

$6.99

$

In Stock, Qty 17

0

13

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 x .75 Gr 5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 750-0242

Spacer, 38 x 1.0x .32

Note: (S/N 533240 & Below)

$

$

Currently unavailable

15

Cub Cadet 711-1105

Pin, Klik

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0431

Nut, Hex Flanged Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3019

Nut, Hex, 7/16-14 Gr 5

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 712-3075

Nut, Hex Lock 1-14
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

20

Cub Cadet 731-0374

Bearing, Flange
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

21

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

22

Cub Cadet 737-3004

Fitting, Grease 90 Deg 1/4-28

$11.99

$

In Stock, Qty 6

0

23

Cub Cadet 734-3179

Tire, Smooth, 9.0 x 3.70 x 4

$

$

Not available

24

Cub Cadet 736-0171

Washer, Lock 7/16

$4.49

$

In Stock, Qty 5

0

25

Cub Cadet 736-0274

Washer, Special

$8.99

$

In Stock, Qty 14

0

26

Cub Cadet 736-3015

Washer, Flat, .469 x .875 x .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 19

0

27

Cub Cadet 736-3052

Washer, Flat, .406 x 1.0 x .105 Thk

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

29

Cub Cadet 741-3063

Bearing, Sleeve

$17.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 741-3069

Bearing, Flange

$17.99

$

In Stock, only 1 left!

0

31

Cub Cadet 741-3070

Bearing, Roller
(Superseded to 941-3070)

$54.99

$

In Stock, only 3 left!

0

32

Cub Cadet 750-0456

Spacer, .790 ID x .347

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 750-3080

Spacer, Wheel
(Superseded to 01000749)

$40.99

$

In Stock, only 1 left!

0

34

Cub Cadet 750-3118

Spacer, 1.015 x 1.62 x .50

$

$

Not available

35

Cub Cadet 756-3062

Pulley 5'' Idler

Note: (S/N 533240 & Below)

$40.99

$

In Stock, Qty 13

0

35

Cub Cadet 603-0432

Pulley Assembly, Idler
(Superseded to 01000690)

Note: (S/N 533241 & Above)

$

$

Not available

36

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 Gr 5

Note: (S/N 533241 & Above)

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 703-2907

Cup, Bearing

Note: (S/N 533241 & Above)

$

$

Not available

38

Cub Cadet 741-0600

Bearing, Ball
(Superseded to 941-0600)

Note: (S/N 533241 & Above)

$25.99

$

In Stock, Qty 20+

0

39

Cub Cadet 756-3085

Pulley, 5'' Idler

Note: (S/N 533241 & Above)

$

$

Not available

40

Cub Cadet 712-0324

Nut, Hx Insrt Lock 1/4-20

Note: (S/N 533241 & Above)

$3.99

$

In Stock, Qty 16

0

41

Cub Cadet 748-3076

Spacer, Shoulder

Note: (S/N 533241 & Above)

$

$

Not available
