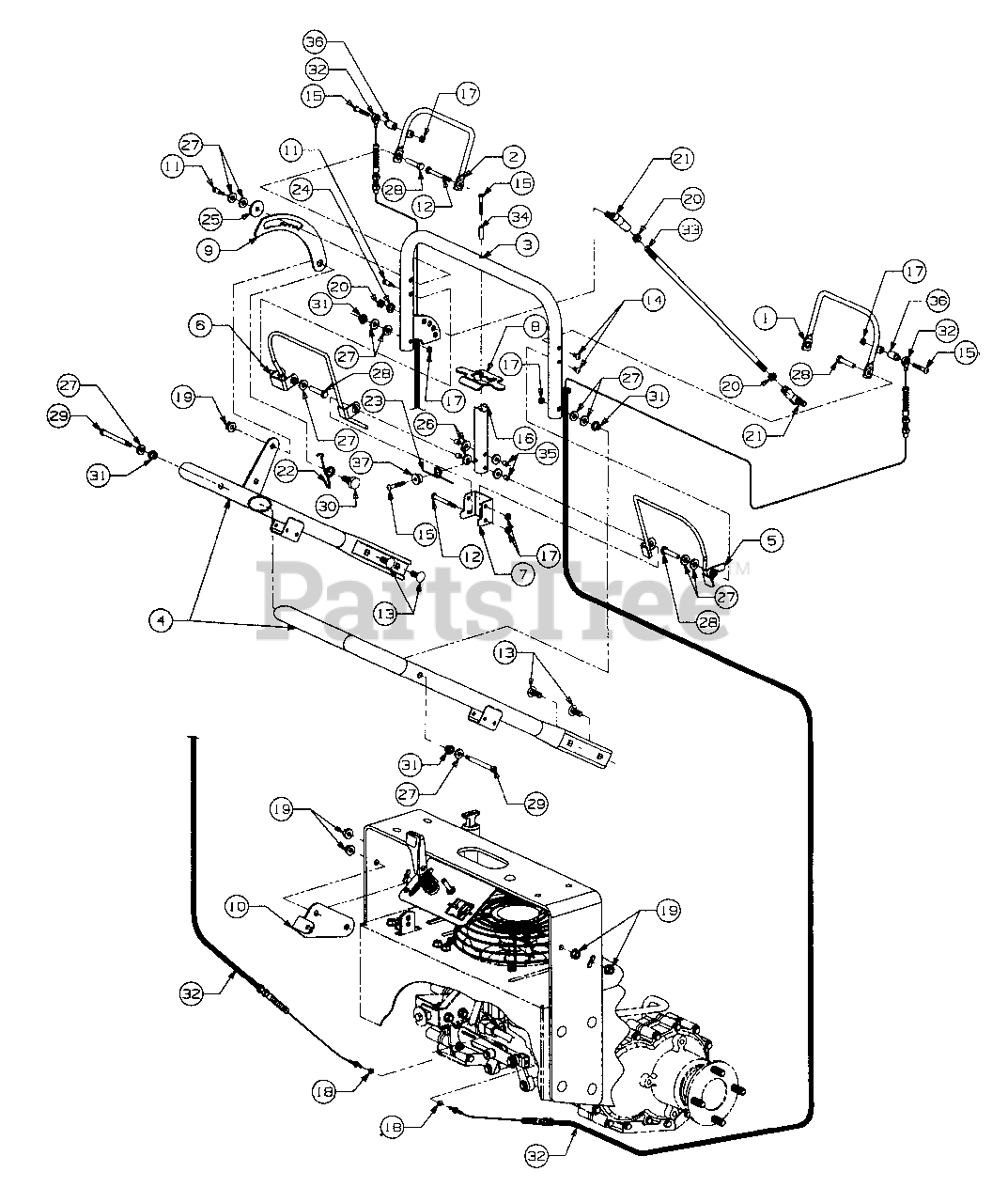

4816 F (554C565K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 503790) Upper Handle Assembly Parts Diagram

Walk-Behind Mower

Upper Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0122A

Lever w/Bushings, R.H. Brake

$

$

Not available

2

Cub Cadet 603-0123A

Lever w/Bushings, L.H. Brake

$

$

Not available

3

Cub Cadet 759-3719

Bar w/Graphics, Traction Control

$

$

Currently unavailable

Cub Cadet 777-0993

Graphic, F-N-R

$

$

Not available

Cub Cadet 777-0994

Graphic, Traction Control

$

$

Not available

4

Cub Cadet 603-0159

Bar, Lower Handle

$

$

Not available

5

Cub Cadet 603-0164A

Lever w/Bushings, Operator-Present

$

$

Currently unavailable

6

Cub Cadet 759-3718A

Lever w/Bushings & Graphic, Speed Set

$

$

Not available

Cub Cadet 777-0996

Graphic, Speed Set

$

$

Not available

7

Cub Cadet 703-2269A

Stop, Handle

$

$

Not available

8

Cub Cadet 759-3717

Latch w/Graphic, Park Brake

$

$

Not available

Cub Cadet 777-0995

Graphic, Park Brake

$

$

Not available

9

Cub Cadet 703-2449

Plate, Speed Set

$

$

Not available

10

Cub Cadet 703-2581

Bracket, Trans Release Cable Mtg

$

$

Not available

11

Cub Cadet 710-0491

Screw, Socket Hd Shoulder

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1122

Screw, Hex Cap, 1/4-20 X 2.50 Lg GR5

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3256

Screw, Button Hd, 1/4-20 X .50 Lg

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3257

Screw, Button Hd, 1/4-20 X 1.50 Lg

$

$

Not available

16

Cub Cadet 711-3370A

Post, Park Brake

$

$

Not available

17

Cub Cadet 712-0324

Nut, Hex Toplock, 1/4-20

$3.99

$

In Stock, Qty 16

0

18

Cub Cadet 712-0349

Nut, Hex, #10-32

$4.99

$

In Stock, Qty 5

0

19

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

21

Cub Cadet 723-3018

Ball Joint, 3/8-24
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-3114

Spring, Torsion

$

$

Not available

23

Cub Cadet 732-3124

Spring, Torsion

$

$

Not available

24

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0362

Washer, Flat, .32 X 1.25 X .06 Thk

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 736-3000

Washer, Flat, .281 X .75 X .105 Thk
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

27

Cub Cadet 736-3008

Washer, Flat, .312 X .75 X .119 Thk
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 738-3114

Bolt, Shoulder
(Superseded to 938-3114)

$

$

Not available

29

Cub Cadet 738-3117

Bolt, Socket Hd Shoulder

$

$

Not available

30

Cub Cadet 738-3127

Bolt, Stepped Shoulder

$

$

Not available

31

Cub Cadet 741-3053

Bushing, Nylon

$

$

Not available

32

Cub Cadet 746-3044

Cable, Brake Clutch
(Superseded to 759-3796)

$91.99

$

In Stock, only 3 left!

0

33

Cub Cadet 747-3169

Rod, F/R Control

$

$

Not available

34

Cub Cadet 750-3108

Spacer, 5/16 OD X 1/4 ID X .94 Lg

$

$

Not available

35

Cub Cadet 750-3109

Spacer, 5/16 OD X 1/4 ID X .375 Lg

$

$

Not available

36

Cub Cadet 750-3110

Spacer, Cable
(Superseded to 950-3110)

$

$

Not available

37

Cub Cadet 750-3157

Spacer, Spring Mtg

$

$

Not available
