4816 F (554C565K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 503790) Cylinder Heads And Manifold Parts Diagram

Walk-Behind Mower

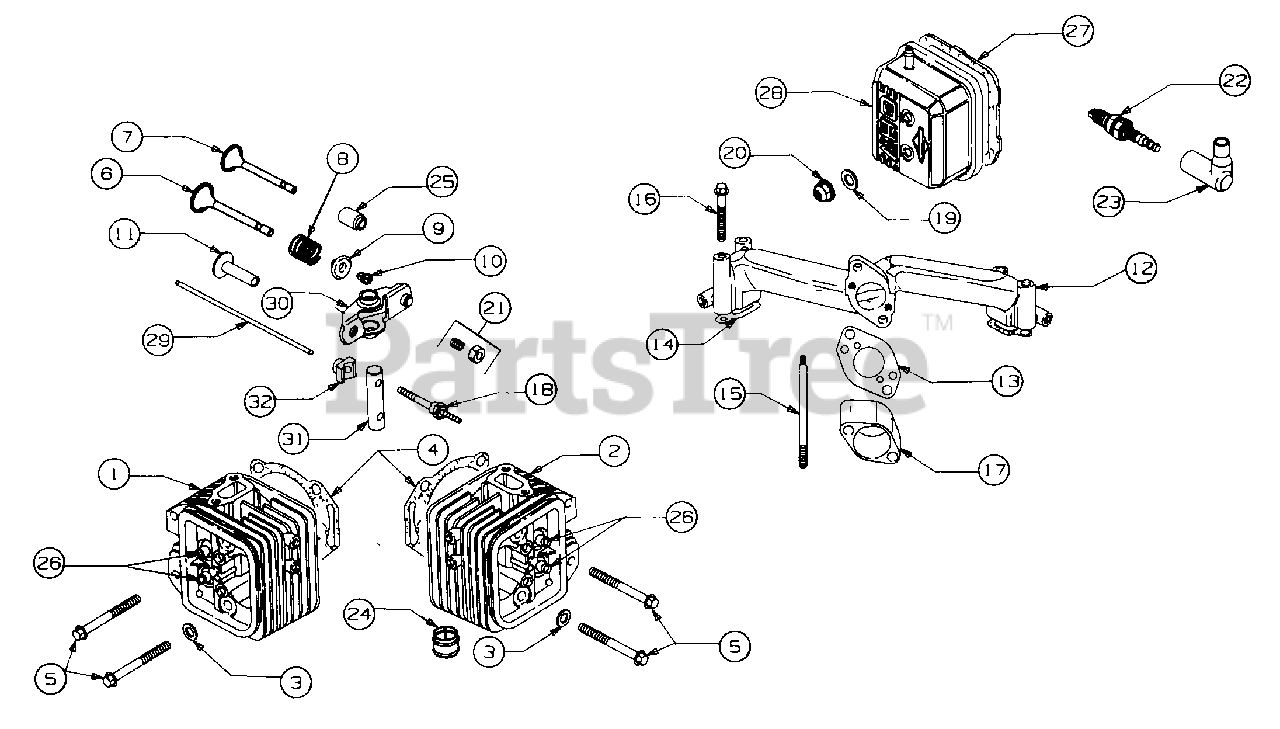

Cylinder Heads And Manifold Parts Diagram

  • Title

1

Cub Cadet BS-807987

Head, Cylinder #1
(Superseded to BS-809200)

$226.99

$

In Stock, only 3 left!

0

2

Cub Cadet BS-807988

Head, Cylinder #2
(Superseded to BS-845716)

$220.99

$

In Stock, Qty 5

0

3

Cub Cadet BS-805193

Washer, Cylinder Head

$

$

Not available

4

Cub Cadet BS-807986

Gasket, Cylinder Head

$26.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-805097

Screw, Cylinder Head
(Superseded to BS-692059)

$3.99

$

In Stock, only 4 left!

0

6

Cub Cadet BS-807681

Valve, Exhaust

$

$

Not available

7

Cub Cadet BS-807680

Valve, Intake

$26.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-805078

Spring, Valve

$

$

Currently unavailable

9

Cub Cadet BS-805092

Retainer, Valve Spring
(Superseded to BS-692058)

$5.49

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-807683

Retainer, Valve
(Superseded to BS-844788)

$6.99

$

In Stock, Qty 12

0

11

Cub Cadet BS-805354

Tappet, Valve
(Superseded to BS-690977)

$7.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-805772

Manifold, Intake

$

$

Not available

13

Cub Cadet BS-805700

Gasket, Carburetor Mtg
(Superseded to BS-691694)

$2.99

$

In Stock, Qty 20+

0

14

Cub Cadet BS-805023

Gasket, Intake Manifold
(Superseded to BS-692035)

$3.49

$

In Stock, Qty 17

0

15

Cub Cadet BS-805669

Stud, Carburetor Mtd

$

$

Currently unavailable

16

Cub Cadet BS-805006

Screw, Sem

$

$

Not available

17

Cub Cadet BS-805770

Spacer, Carburetor

$

$

Not available

18

Cub Cadet BS-805343

Stud, Rocker Arm

$

$

Not available

19

Cub Cadet BS-805420

Washer, Valve Cover
(Superseded to BS-691766)

$6.49

$

In Stock, Qty 20+

0

20

Cub Cadet BS-805019

Nut, Nylock
(Superseded to BS-692055)

$3.99

$

In Stock, Qty 9

0

21

Cub Cadet BS-807623

Screw, Valve Adjusting

Note: (Includes jam nut)

$11.99

$

In Stock, only 1 left!

0

22

Cub Cadet 759-3336

Plug, Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet BS-805529

Elbow, Spark Plug
(Superseded to BS-692076)

$5.49

$

In Stock, Qty 20+

0

24

Cub Cadet BS-805083

Liner, Exhaust Port
(Superseded to BS-691493)

$12.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-805094

Seal, Valve Guide
(Superseded to BS-691963)

$10.99

$

In Stock, Qty 20+

0

26

Cub Cadet BS-805084

Guide, Valve
(Superseded to BS-692057)

$

$

Not available

27

Cub Cadet BS-805028

Gasket, Valve Cover
(Superseded to BS-806039S)

$7.49

$

In Stock, Qty 20+

0

28

Cub Cadet BS-805100

Cover, Valve

$

$

Not available

Cub Cadet BS-807665

Cover, Valve
(Superseded to BS-691558)

Note: (Used on Cylinder #1)

$20.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-805352

Rod, Push (Steel)
(Superseded to BS-691836)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet BS-805617

Rod, Push (Aluminum)
(Superseded to BS-691758)

Note: (Used on exhaust side only)

$11.99

$

In Stock, Qty 20+

0

30

Cub Cadet BS-807557

Arm, Rocker

$

$

Currently unavailable

31

Cub Cadet BS-805342

Shaft, Rocker Arm

$

$

Not available

32

Cub Cadet BS-805341

Support, Rocker Arm

$

$

Not available

Cub Cadet BS-807989

Gasket Set
(Superseded to BS-847319)

Note: (Includes Ref No. 3, 4, 13, 14, 19 & 27)

$123.99

$

In Stock, only 2 left!

0

Cub Cadet BS-807990

Overhaul Kit, Valve
(Superseded to BS-808392)

Note: (Includes Ref No. 3, 4, 14, 19, 20 & 27)

$83.99

$

Usually ships in 2-12 days

0
