4816 F (554C565K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 503790) Covers Parts Diagram

Walk-Behind Mower

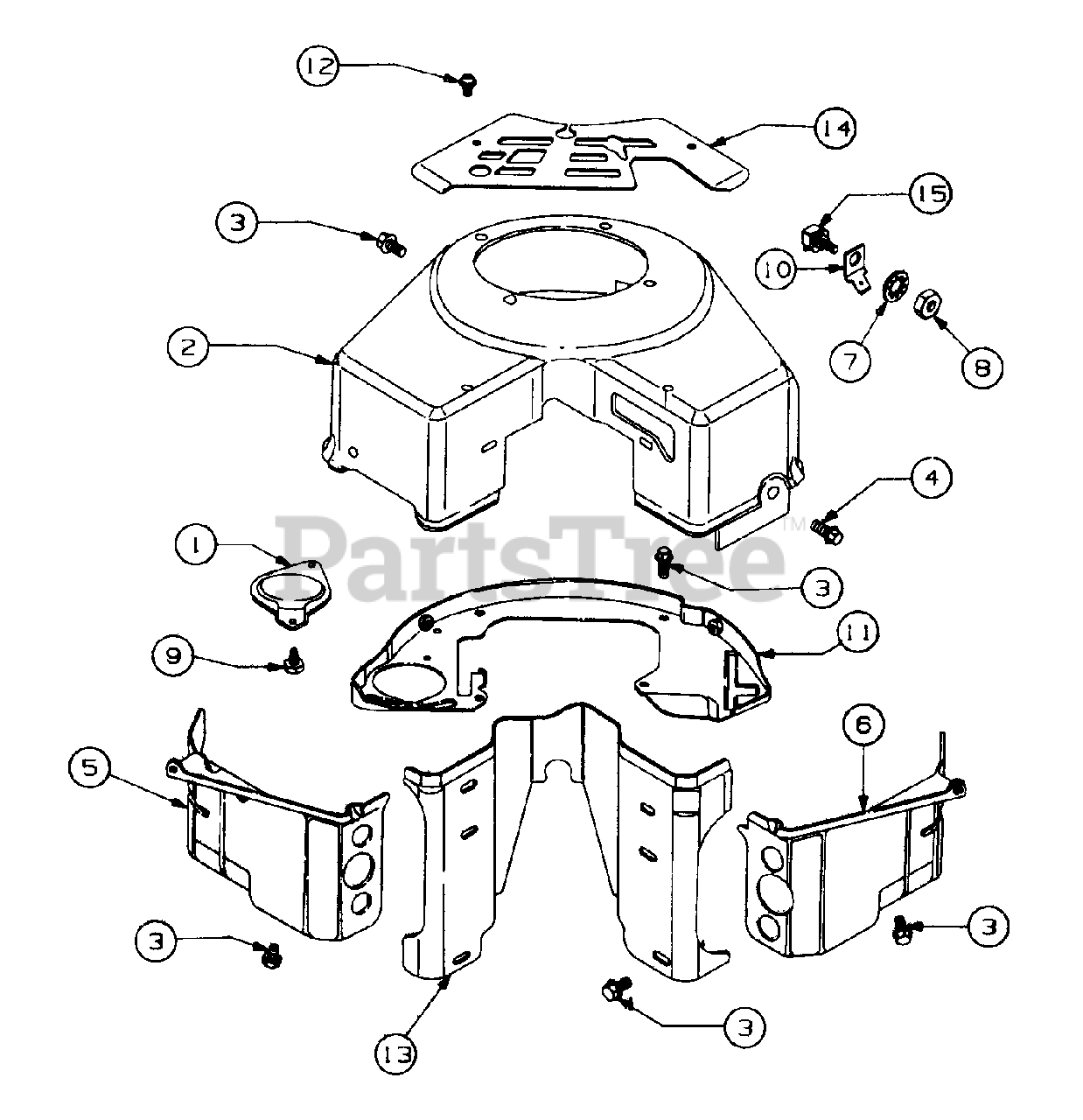

Covers Parts Diagram

  • Title
1

Cub Cadet BS-805506

Cover, Starter (Black)

$

$

Not available

2

Cub Cadet BS-807898

Housing, Blower

$

$

Not available

3

Cub Cadet BS-805406

Screw, Sem
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

4

Cub Cadet BS-805025

Screw, Sem

$

$

Not available

5

Cub Cadet BS-807868

Cover, Air Guide (Cylinder #1 Black)

$

$

Not available

6

Cub Cadet BS-807869

Cover, Air Guide (Cylinder #2 Black)

$

$

Not available

7

Cub Cadet BS-92791

Washer, Lock
(Superseded to BS-691077)

$3.49

$

In Stock, only 2 left!

0

8

$4.49

$

In Stock, Qty 10

0

9

Cub Cadet BS-805260

Screw, Sem

$

$

Not available

10

Cub Cadet BS-93722

Terminal, Spade
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

11

Cub Cadet BS-807663

Back Plate Assy (Black)

$

$

Not available

12

Cub Cadet BS-805009

Screw, Sem
(Superseded to BS-690677)

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet BS-805738

Valley Cover, Air Guide (Black)

$

$

Not available

14

Cub Cadet BS-805841

Cover, Carburetor

$

$

Not available

15

Cub Cadet BS-398525

Insulator
(Superseded to BS-691972)

$8.49

$

In Stock, only 3 left!

0

$32.99

$

Usually ships in 2-12 days

0
