4816 F (553C565K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 503790) Rewind Starter Parts Diagram

Walk-Behind Mower

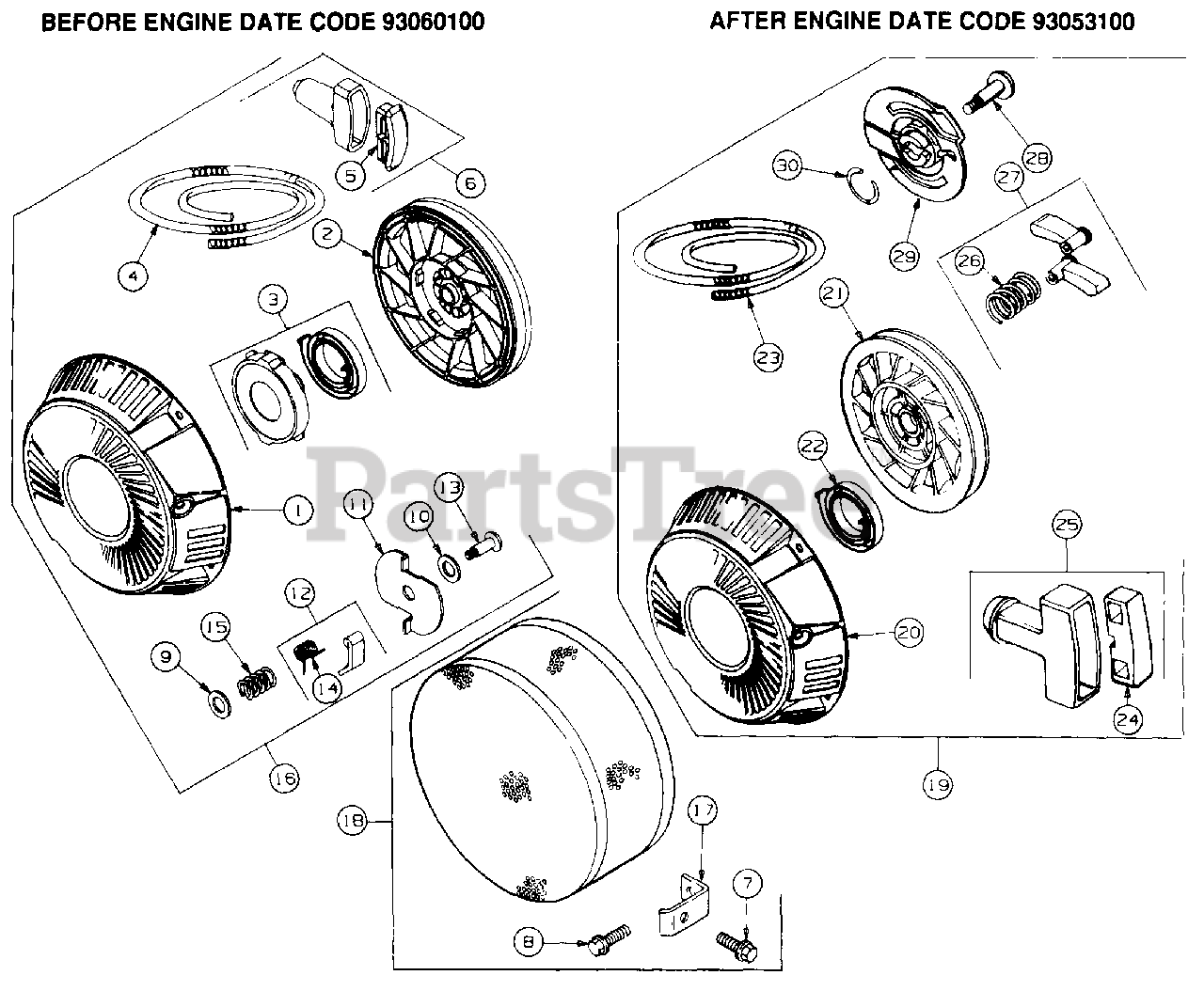

Rewind Starter Parts Diagram

  • Title

1

Cub Cadet BS-492193

Housing, Starter

$52.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-280918

Pulley, Rewind Starter

$

$

Not available

3

Cub Cadet BS-492194

Spring, Rewind Starter
(Superseded to BS-692102)

$142.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-66894

Rope Starter (Cut to 69-1/2")
(Superseded to BS-695002)

$8.49

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-490653

Insert, Starter Handle

$5.49

$

In Stock, Qty 12

0

6

Cub Cadet BS-490652

Handle, Rewind Starter

$5.49

$

In Stock, Qty 12

0

7

Cub Cadet BS-810080

Screw, Sem

$1.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-805406

Screw, Hex Hd (Bracket Mtg)
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

9

Cub Cadet BS-94464

Washer, Pulley

$4.49

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-94462

Washer, Retainer

$13.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-224228

Retainer

$5.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-492431

Dog, Starter

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-94463

Screw, Pan Head

$6.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-262565

Spring, Dog
(Superseded to BS-492833)

$4.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-262564

Spring, Torsion

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-491017

Starter Assy, Rewind

$

$

Not available

17

Cub Cadet BS-805430

Bracket, Debris Guard
(Superseded to BS-691503)

$17.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-808030

Screen Assy, Debris

Note: (Before engine date code 93060100)

$130.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-808225

Screen Assy, Debris

Note: (After engine date code 93053100)

$79.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-808152

Starter Assy, Rewind w/Starter Hub

$139.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-808186

Housing, Starter

$

$

Not available

21

Cub Cadet BS-805949

Pulley, Rewind Starter

$

$

Not available

22

Cub Cadet BS-805951

Spring, Rewind Starter
(Superseded to BS-692086)

$15.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-66574

Rope Starter (Cut to 78-3/4)

$7.49

$

In Stock, Qty 9

0

24

Cub Cadet BS-805957

Insert Starter Handle

$8.49

$

In Stock, only 4 left!

0

25

Cub Cadet BS-808167

Handle Rewind Starter

$14.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-805953

Spring, Dog

$

$

Not available

27

Cub Cadet BS-808166

Dog, Starter

$20.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-805955

Screw, Retainer

$

$

Not available

29

Cub Cadet BS-805954

Retainer
(Superseded to BS-691529)

$17.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-805952

Ring, Retaining

$

$

Not available
