4816 F (553C565K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 503790) Crankshaft And Piston Parts Diagram

Walk-Behind Mower

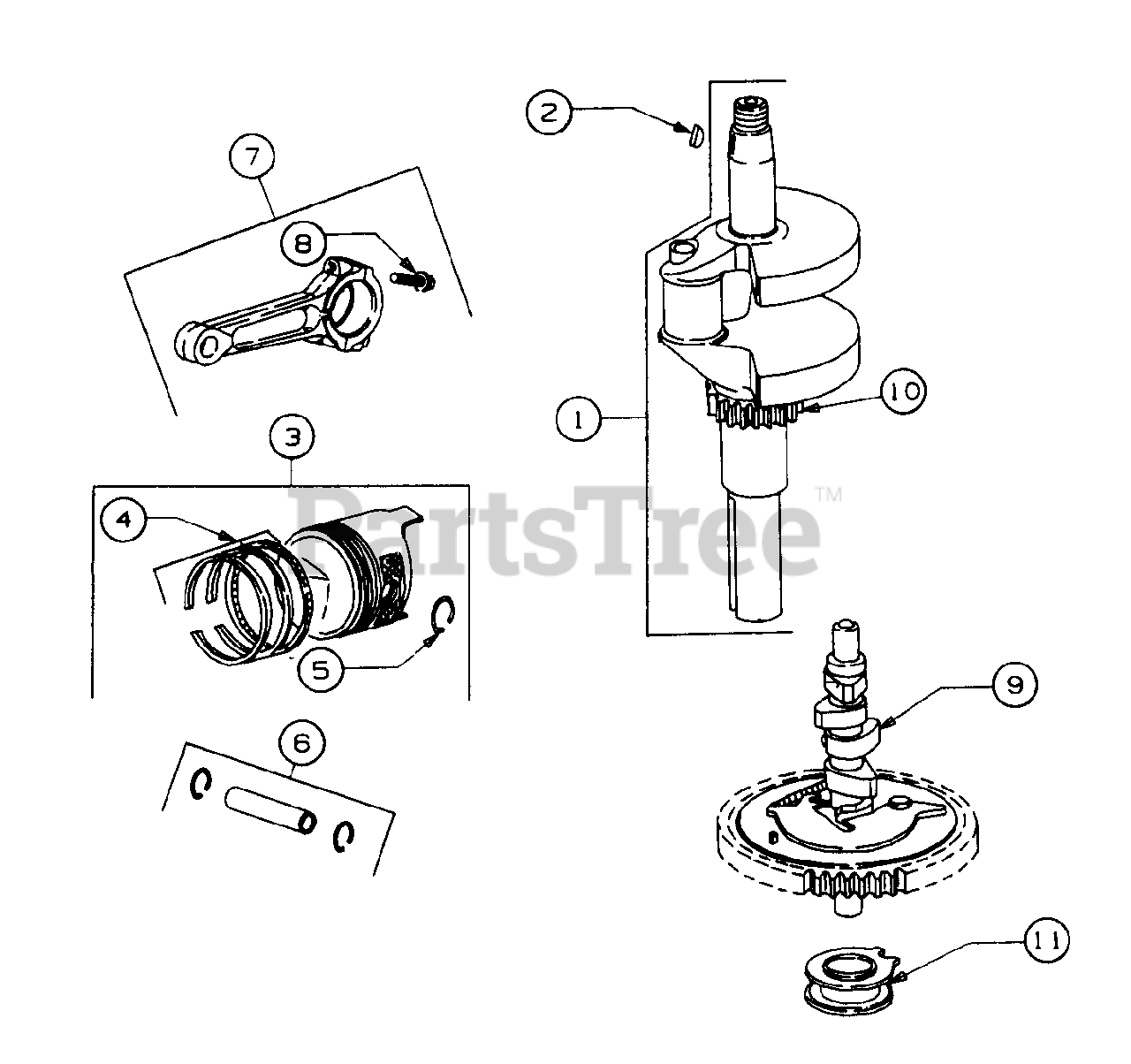

Crankshaft And Piston Parts Diagram

  • Title

1

Cub Cadet BS-807586

Crankshaft

$245.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-805016

Key, Flywheel

$

$

Not available

3

Cub Cadet BS-807619

Piston Assy
(Superseded to BS-843951)

Note: (Standard)

$

$

Not available

Cub Cadet BS-807807

Piston Assy

Note: (.010 Oversize)

$96.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807809

Piston Assy

Note: (.020 Oversize)

$

$

Not available

Cub Cadet BS-807811

Piston Assy

Note: (.030 Oversize)

$95.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-807620

Ring Set, Piston
(Superseded to BS-843951)

Note: (Standard)

$

$

Not available

Cub Cadet BS-807808

Ring Set, Piston

Note: (.010 Oversize)

$34.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807810

Ring Set, Piston

Note: (.020 Oversize)

$133.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807812

Ring Set, Piston

Note: (.030 Oversize)

$45.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-805099

Lock, Piston Pin

$

$

Not available

6

Cub Cadet BS-807621

Pin Assy, Piston

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-807900

Rod Assy, Connecting
(Superseded to BS-807900S)

$

$

Not available

Cub Cadet BS-807803

Rod, Connecting

Note: (.020 Undersize Crankpin Bore)

$65.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-805395

Screw, Connecting Rod
(Superseded to BS-690698)

$7.49

$

In Stock, only 1 left!

0

9

Cub Cadet BS-807542

Gear, Cam
(Superseded to BS-845649)

$184.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-805675

Gear, Timing

$

$

Not available

Cub Cadet BS-94196

Key, Timing Gear

$

$

Not available

11

Cub Cadet BS-805313

Slider, Governor
(Superseded to BS-690689)

$22.99

$

In Stock, only 2 left!

0
