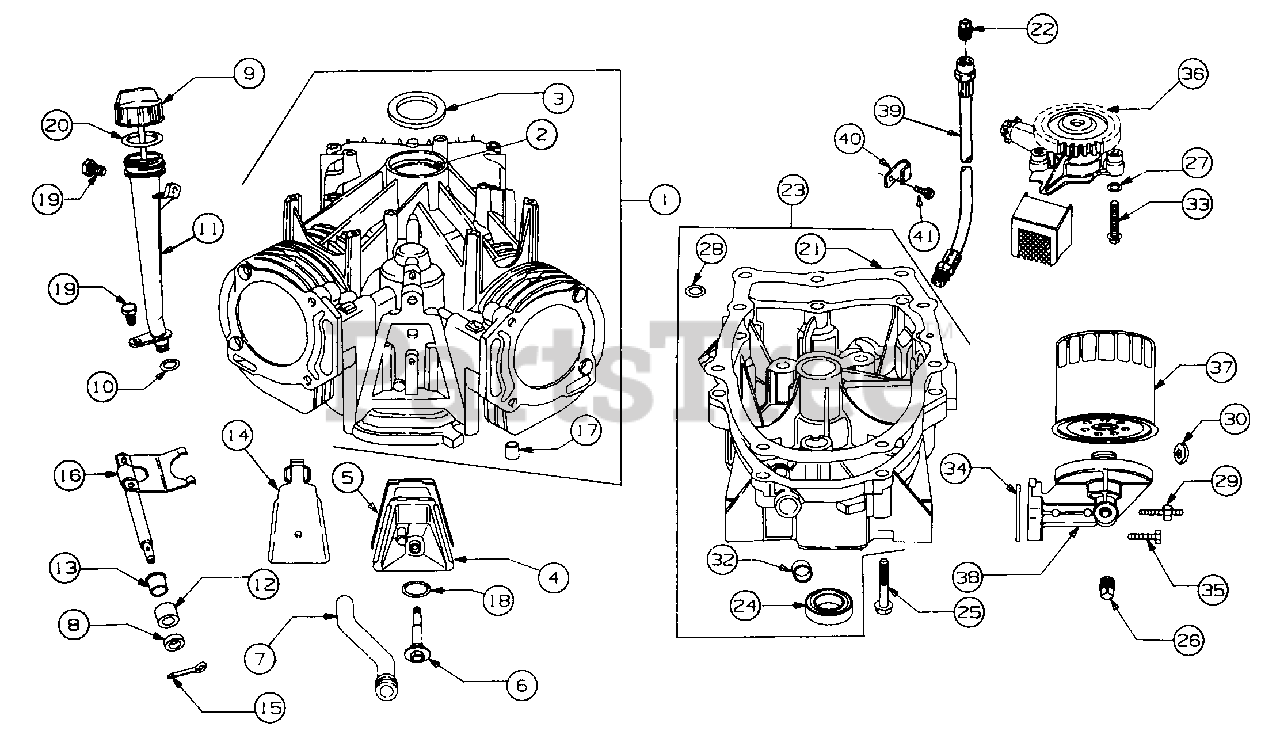

4816 F (553C565K100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 503790) Crankcase Parts Diagram

Walk-Behind Mower

Crankcase Parts Diagram

  • Title

Cub Cadet BS-303776-0422

Engine, Complete

$

$

Not available

1

Cub Cadet BS-807511

Cylinder Assy

$546.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-807687

Bearing, Cylinder

$

$

Not available

3

Cub Cadet BS-805101

Seal, Oil
(Superseded to BS-805101S)

$13.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-807795

Breather Assy
(Superseded to BS-808988)

$38.99

$

In Stock, Qty 7

0

5

Cub Cadet BS-805379

Gasket, Breather
(Superseded to BS-844986)

$8.49

$

In Stock, only 2 left!

0

6

Cub Cadet BS-805751

Screw, Breather
(Superseded to BS-690751)

$7.49

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-805362

Tube, Breather
(Superseded to BS-806083S)

$16.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-805054

Seal, GovernorShaft
(Superseded to BS-842826)

$7.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-807985

Dipstick
(Superseded to BS-692101)

$23.99

$

In Stock, Qty 7

0

10

Cub Cadet BS-805011

Seal, Filler Tube

$

$

Currently unavailable

11

Cub Cadet BS-807611

Tube, Oil Filler
(Superseded to BS-692093)

$20.99

$

In Stock, Qty 8

0

12

Cub Cadet BS-805412

Bushing, Governor Shaft

$

$

Not available

13

Cub Cadet BS-805413

Bushing, Governor Shaft

$

$

Not available

14

Cub Cadet BS-805197

Baffle, Breather
(Superseded to BS-690686)

$14.99

$

In Stock, only 1 left!

0

15

Cub Cadet BS-805417

Pin, Cotter

$

$

Not available

16

Cub Cadet BS-807596

Fork, Governor
(Superseded to BS-690899)

$14.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-805103

Dowel, Crankcase

$

$

Not available

18

Cub Cadet BS-805843

Seal, Breather Screw

$

$

Currently unavailable

19

Cub Cadet BS-805317

Screw, Mounting
(Superseded to BS-807084)

$3.49

$

In Stock, Qty 7

0

20

Cub Cadet BS-270920

O-Ring
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-805112

Gasket, Crankcase Cover
(Superseded to BS-845254)

$45.99

$

In Stock, Qty 12

0

22

Cub Cadet BS-805048

Plug, Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

23

Cub Cadet BS-807638

Cover Assy, Crankcase

$

$

Not available

24

Cub Cadet BS-805049

Seal, Oil
(Superseded to BS-805049S)

$12.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-805017

Screw, Crankcase Cover

$

$

Not available

26

Cub Cadet BS-805059

Plug, Pipe

$

$

Not available

27

Cub Cadet BS-805058

O-Ring (Oil pump)
(Superseded to BS-690681)

$5.99

$

In Stock, only 2 left!

0

28

Cub Cadet BS-805198

O-Ring

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-805073

Stud, Oil Filter Adapter
(Superseded to BS-690682)

$4.49

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-805449

Washer, Lock

$

$

Not available

?31

Cub Cadet BS-805312

Screen, Oil

$

$

Not available

32

Cub Cadet BS-805416

Washer, Governor Shaft
(Superseded to BS-690704)

$5.99

$

In Stock, only 1 left!

0

33

Cub Cadet BS-805057

Screw, Sem
(Superseded to BS-691492)

$3.99

$

In Stock, only 2 left!

0

34

Cub Cadet BS-805250

Gasket, Filter Adapter
(Superseded to BS-692063)

$4.49

$

In Stock, only 4 left!

0

35

Cub Cadet BS-805030

Screw, Sem
(Superseded to BS-690679)

$3.49

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-807546

Oil Pump Assy

$

$

Not available

37

Cub Cadet BS-491056

Filter, Oil

$9.99

$

In Stock, only 2 left!

0

38

Cub Cadet BS-805292

Adapter, Oil Filter
(Superseded to BS-808235)

$78.99

$

Usually ships in 2-12 days

0

39

Cub Cadet 727-3091

Hose, Oil Drain

$

$

Not available

40

Cub Cadet 726-3008

Clip, Drain Hose

$4.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-0603

Screw, Hex Wash Hd Tapp, 5/16-18 X .50 Lg

$4.99

$

Usually ships in 3-6 days

0
