4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Transmission Manual Release Cable Parts Diagram

Walk-Behind Mower Pro Performer

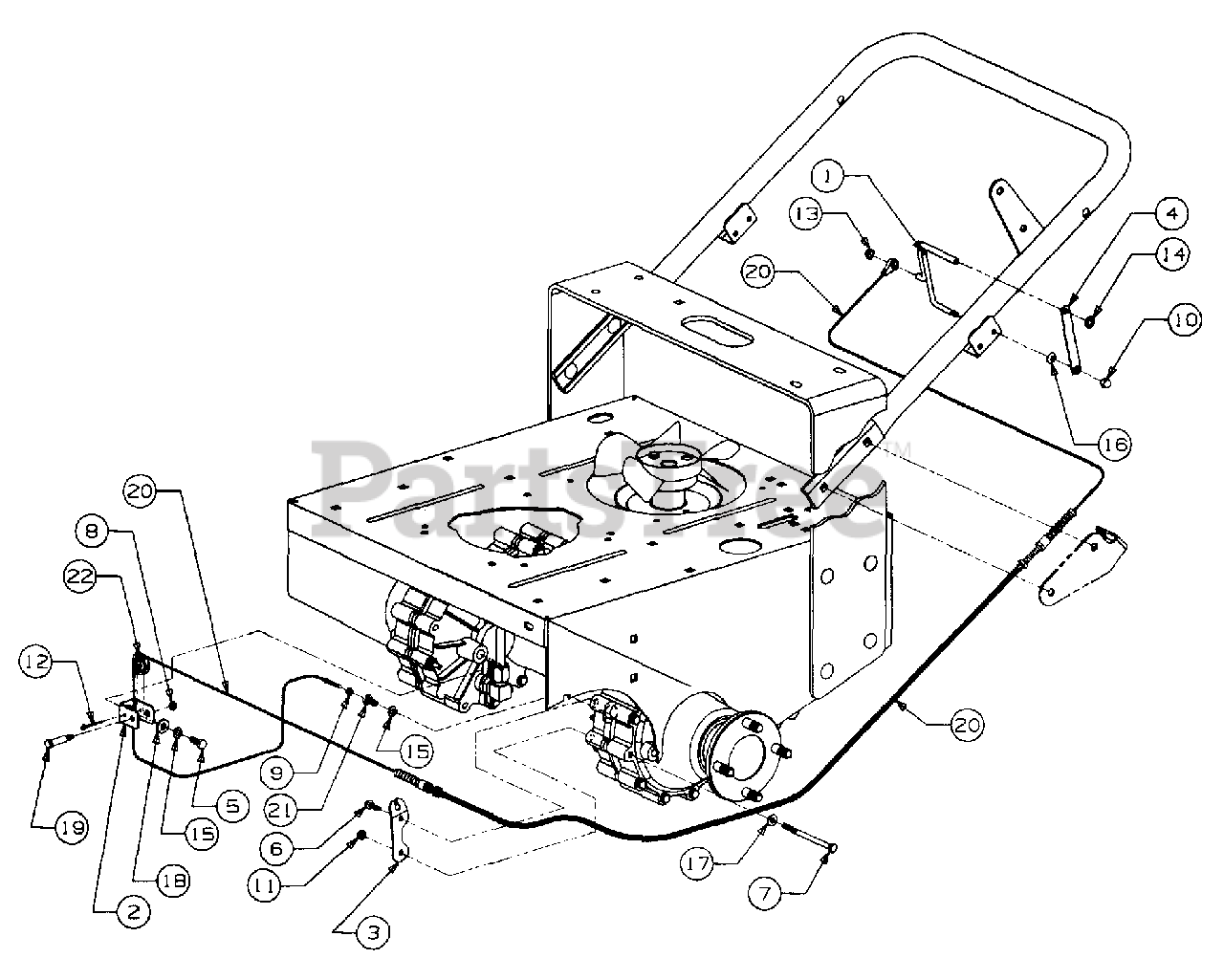

Transmission Manual Release Cable Parts Diagram

  • Title
1

Cub Cadet 603-0210

Lever, Drive Wheel Release

$

$

Not available

2

Cub Cadet 703-2455

Bracket, Pulley Mtg

$

$

Not available

3

Cub Cadet 703-2580

Plate, Release Cable Mtg

$

$

Not available

4

Cub Cadet 703-2587

Plate, Retainer

$

$

Not available

Cub Cadet 777-1790

Graphic, Transaxle Release

$

$

Not available

5

Cub Cadet 710-0157

Screw, Hex Cap, 5/16-24 X .75 Lg GR5

$4.49

$

In Stock, Qty 15

0

6

Cub Cadet 710-0642

Screw, Hex Wash Hd Tapp, 1/4-20 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1058

Screw, Hex Cap, 1/4-20 X 4.0 Lg

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0324

Nut, Hex Top Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

9

Cub Cadet 712-0349

Nut, Hex, #10-32

$4.99

$

In Stock, Qty 5

0

10

Cub Cadet 712-0392

Nut, Hex Lock Stop, 1/4-28

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 712-3055

Nut, Hex Top Lock, 1/4-20 GR5
(Superseded to 912-0291)

$

$

Not available

12

Cub Cadet 714-0162

Pin, Cotter, 5/32 Dia X 1.25 Lg

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 726-0135

Nut, Cap Speed, .312 Stud

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 726-0201

Nut, Push-On Speed, 5/16

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0175

Washer, Spring
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

17

Cub Cadet 736-0463

Washer, Flat, .25 X .62

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-3008

Washer, Flat, .312 X .750 X .119 Thk
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 738-3143

Bolt, Pulley

$

$

Not available

20

Cub Cadet 746-3048

Cable, Drive Wheel Release

$

$

Not available

21

Cub Cadet 750-3145

Bolt, Cable Adapter
(Superseded to 950-3145)

$

$

Not available

22

Cub Cadet 756-0625

Pulley, Cable

$9.49

$

In Stock, Qty 14

0
