4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Oil Pan/Lubrication Parts Diagram

Walk-Behind Mower Pro Performer

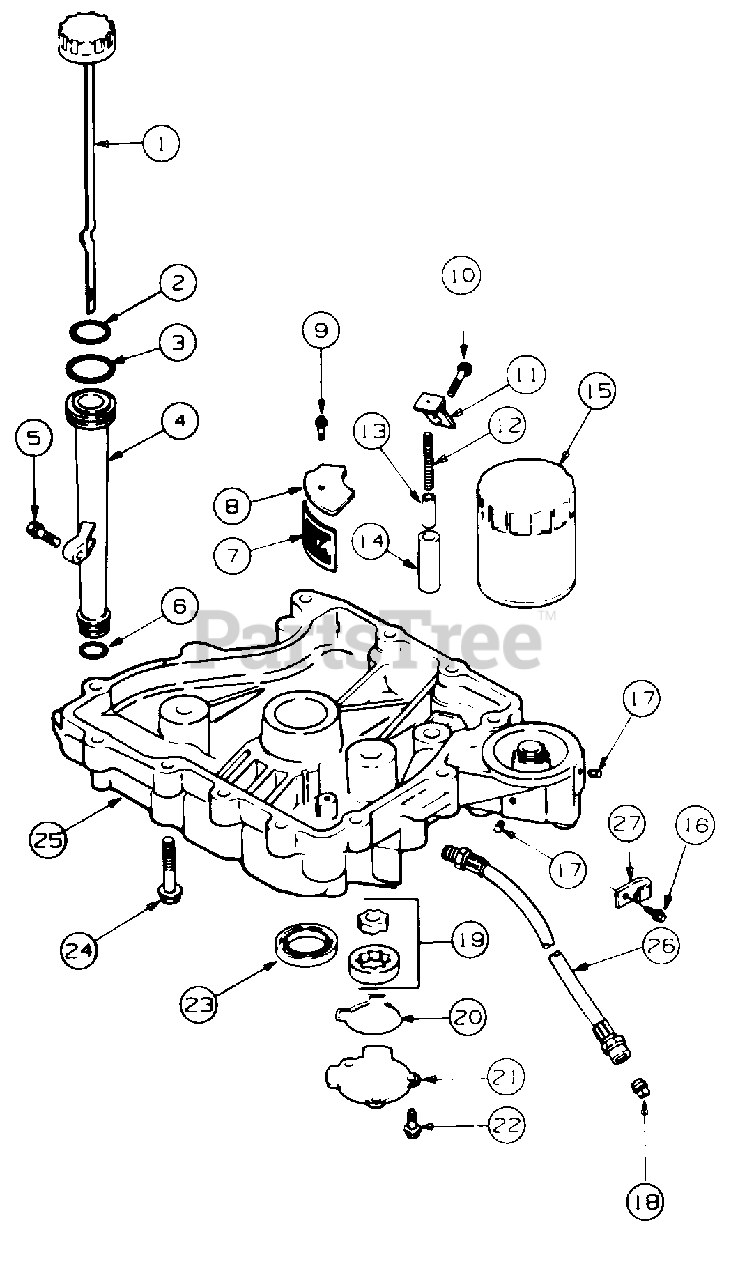

Oil Pan/Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-12-038-01

Dipstick Assy

$

$

Not available

2

Cub Cadet KH-12-153-03

O-Ring, Dipstick
(Superseded to KH-25-153-02-S)

$2.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-12-153-02

O-Ring, Upper Oil Fill Tube
(Superseded to KH-12-153-02-S)

$2.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-12-123-04

Tube, Oil Fill
(Superseded to KH-32-755-04-S)

$

$

Not available

5

Cub Cadet KH-SM-0545020

Screw, Oil Fill Tube, M5 X .08 X 20

$

$

Not available

6

Cub Cadet KH-12-153-01

O-Ring, Lower Oil Fill Tube
(Superseded to KH-12-153-01-S)

$4.99

$

In Stock, Qty 16

0

7

Cub Cadet KH-12-162-07

Screen, Oil Pickup

$

$

Currently unavailable

8

Cub Cadet KH-12-096-03

Cover, Oil Pickup Screen

$

$

Not available

9

Cub Cadet KH-SM-545016

Screw, Screen Cover
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

10

Cub Cadet KH-M-1039025

Screw, Oil Pump Relief Valve Bracket, M10 X 1.5 X 25

$

$

Not available

11

Cub Cadet KH-12-126-02

Bracket, Oil Pump Relief Valve

$

$

Not available

12

Cub Cadet KH-12-089-03

Spring, Oil Pump Relief Valve

$

$

Not available

13

Cub Cadet KH-12-462-01

Piston, Oil Pump Relief Valve

$

$

Not available

14

Cub Cadet KH-12-208-01

Body, Oil Pump Relief Valve
(Superseded to KH-25-462-09)

$

$

Not available

15

Cub Cadet KH-52-050-02

Filter, Oil
(Superseded to KH-52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0603

Screw, Hex Wash Hd Tapp, 5/16-18 X .50 Lg

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-X-75-1

Plug, Sq Hd Solid, 1/8 NPTF

$

$

Not available

18

Cub Cadet KH-X-75-10

Plug, Sq Hd Solid, 3/8 NPTF
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, only 3 left!

0

19

Cub Cadet KH-12-393-01

Pump, Oil Assy

$

$

Not available

20

Cub Cadet KH-12-032-04

O-Ring, Oil Pump Cover

$

$

Not available

21

Cub Cadet KH-12-096-02

Cover, Oil Pump
(Superseded to KH-12-096-21)

$

$

Not available

22

Cub Cadet KH-SM-545016

Screw, Oil Pump Cover, M5 X 0.8 X 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

23

Cub Cadet KH-12-032-03

Seal, Oil
(Superseded to KH-12-032-03-S)

Note: (PTO end)

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet KH-SM-839045

Screw, Oil Pan, M8 X 1.25 X 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

25

Cub Cadet KH-12-199-21

Pan, Oil

$

$

Not available

26

Cub Cadet 727-3091

Hose, Oil Drain

$

$

Not available

27

Cub Cadet 726-3008

Clip, Drain Hose

$4.99

$

Usually ships in 3-6 days

0
