4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Ignition/Electrical Parts Diagram

Walk-Behind Mower Pro Performer

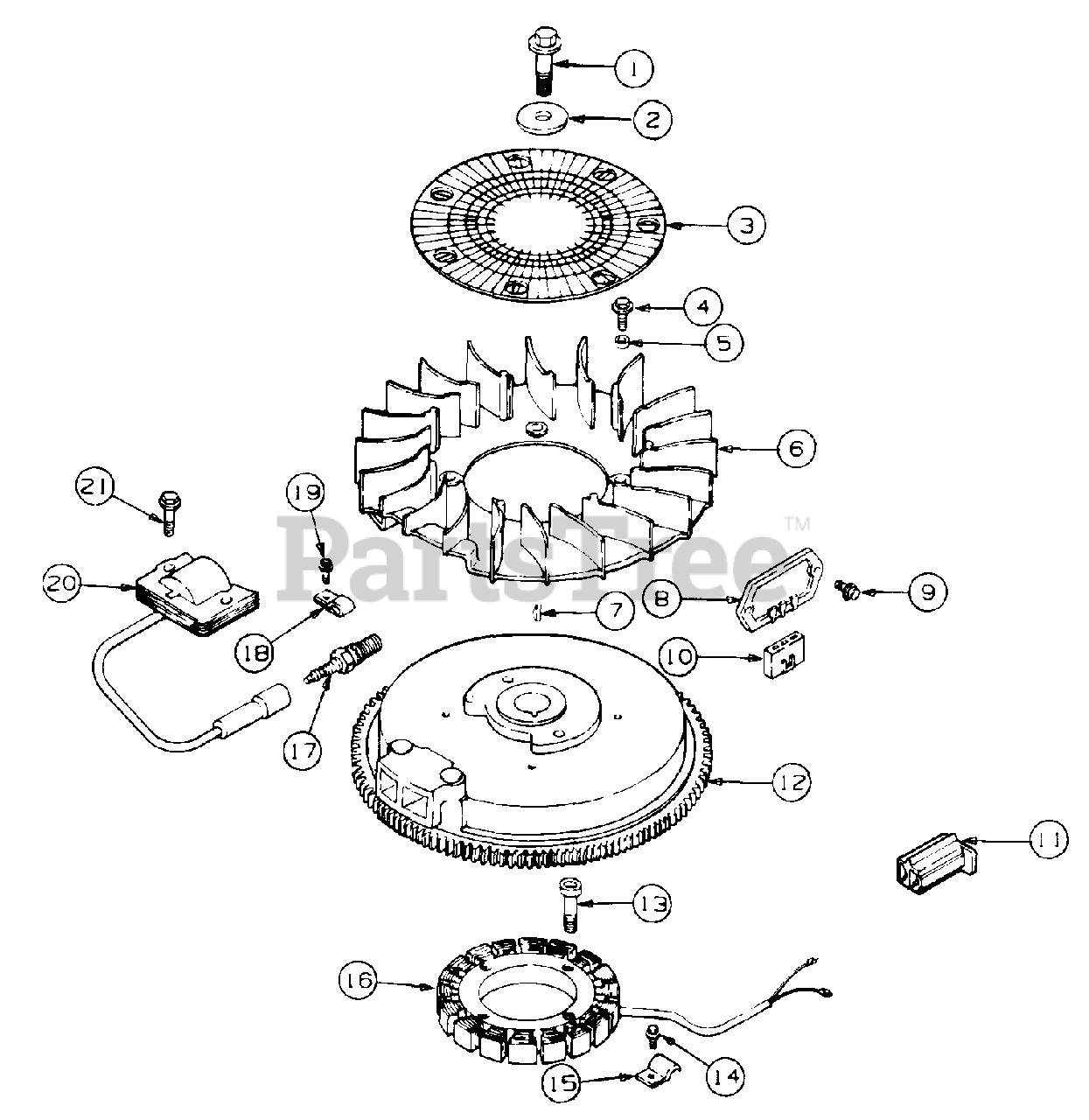

Ignition/Electrical Parts Diagram

  • Title
1

Cub Cadet KH-12-086-14

Screw, Flywheel Mounting
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

2

Cub Cadet KH-12-468-03

Washer, Flywheel Screw

$

$

Not available

3

Cub Cadet KH-12-162-03

Screen, Grass

$

$

Not available

4

Cub Cadet KH-M-0639016

Screw, Fan Mounting
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, Qty 6

0

5

Cub Cadet KH-12-112-01

Spacer, Fan
(Superseded to KH-25-086-47)

$

$

Not available

6

Cub Cadet KH-12-157-02

Fan
(Superseded to KH-12-157-03-S)

$

$

Not available

$

$

Not available

8

Cub Cadet KH-12-403-01

Rectifier, Unregulated
(Superseded to KH-12-755-111-S)

$127.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-0639016

Screw, Rectifier Mounting
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, Qty 6

0

10

Cub Cadet KH-236602

Connector (3 contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-41-155-03

Connector (2 contact)

$

$

Not available

12

Cub Cadet KH-12-025-16

Flywheel Assy
(Superseded to KH-12-025-16-S)

$328.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-M-0548025

Screw, Stator Mounting
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-M-0545010

Screw, Wire Clip

$

$

Not available

15

Cub Cadet KH-12-154-02

Clip, Stator Wire

$

$

Not available

16

Cub Cadet KH-24-085-01

Stator
(Superseded to KH-237878)

$

$

Not available

17

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-X-728-1

Clip, Kill Lead

$

$

Not available

19

Cub Cadet KH-M-0545010

Screw, Lead Clip

$

$

Not available

20

Cub Cadet KH-12-584-02

Module, Ignition
(Superseded to KH-12-584-05)

$

$

Not available

21

Cub Cadet KH-SM-0545020

Screw, Ignition Module, M5 X 0.8 X 20

$

$

Not available

Cub Cadet KH-12-518-01

Lead, Ground to Kill, White

Note: (18 gauge - 19" fully insulated push on tabs)

$

$

Not available

Cub Cadet KH-25-518-05

Lead, Rectifier to Connector, Black

Note: (14 gauge -5" uninsulated push on tabs)

$

$

Not available
