4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Fuel System Parts Diagram

Walk-Behind Mower Pro Performer

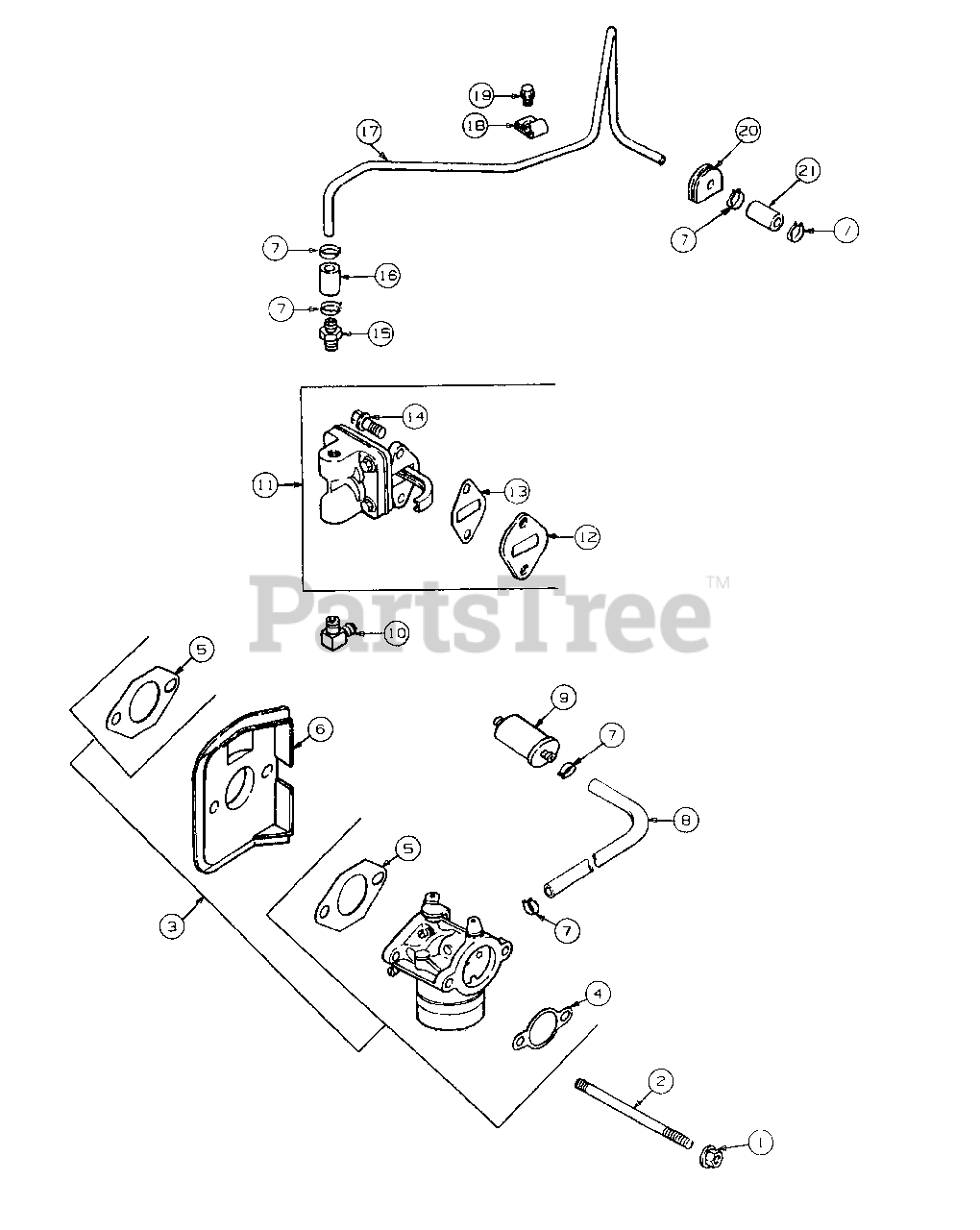

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-SM-0641060

Nut, Carburetor, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet KH-M-0629122

Stud, Carburetor, M6 X 1.0 X 110

$

$

Not available

3

Cub Cadet KH-12-853-41

Kit, Carburetor
(Superseded to KH-12-853-139-S)

Note: (Includes Ref No. 4 & 5)

$263.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-041-02

Gasket, Air Cleaner

$2.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 16

0

6

Cub Cadet KH-12-265-01

Deflector, Heat
(Superseded to KH-12-265-08-S)

$9.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-X-426-9

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-25-353-02

Line, Fuel, 3"

$

$

Not available

9

Cub Cadet KH-25-050-03

Filter, Fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-155-02

Connector, 90°

$

$

Not available

11

Cub Cadet KH-12-559-01

Kit, Fuel Pump
(Superseded to KH-12-559-02-S)

Note: (Includes Ref No. 12, 13 & 14)

$48.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-12-112-05

Spacer, Fuel Pump

$

$

Not available

13

Cub Cadet KH-25-041-09

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

In Stock, only 1 left!

0

14

Cub Cadet KH-M-0645020

Screw, Fuel Pump Mtg
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-X-380-1

Connector, Straight
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-12-353-10

Line, Fuel, 2-1/4"

$

$

Not available

17

Cub Cadet KH-12-123-19

Line, Fuel

$

$

Not available

18

Cub Cadet KH-12-154-01

Clamp, Fuel Line

$

$

Not available

19

Cub Cadet KH-M-0545010

Screw, Fuel Line Connecting

$

$

Not available

20

Cub Cadet KH-12-313-01

Grommet

$

$

Not available

21

Cub Cadet KH-12-353-01

Line, Fuel, 1-1/4"
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0
