4815 F (556C465M100) - Cub Cadet Walk-Behind Mower Pro Performer Cylinder Head, Valve, and Breather Parts Diagram

Walk-Behind Mower Pro Performer

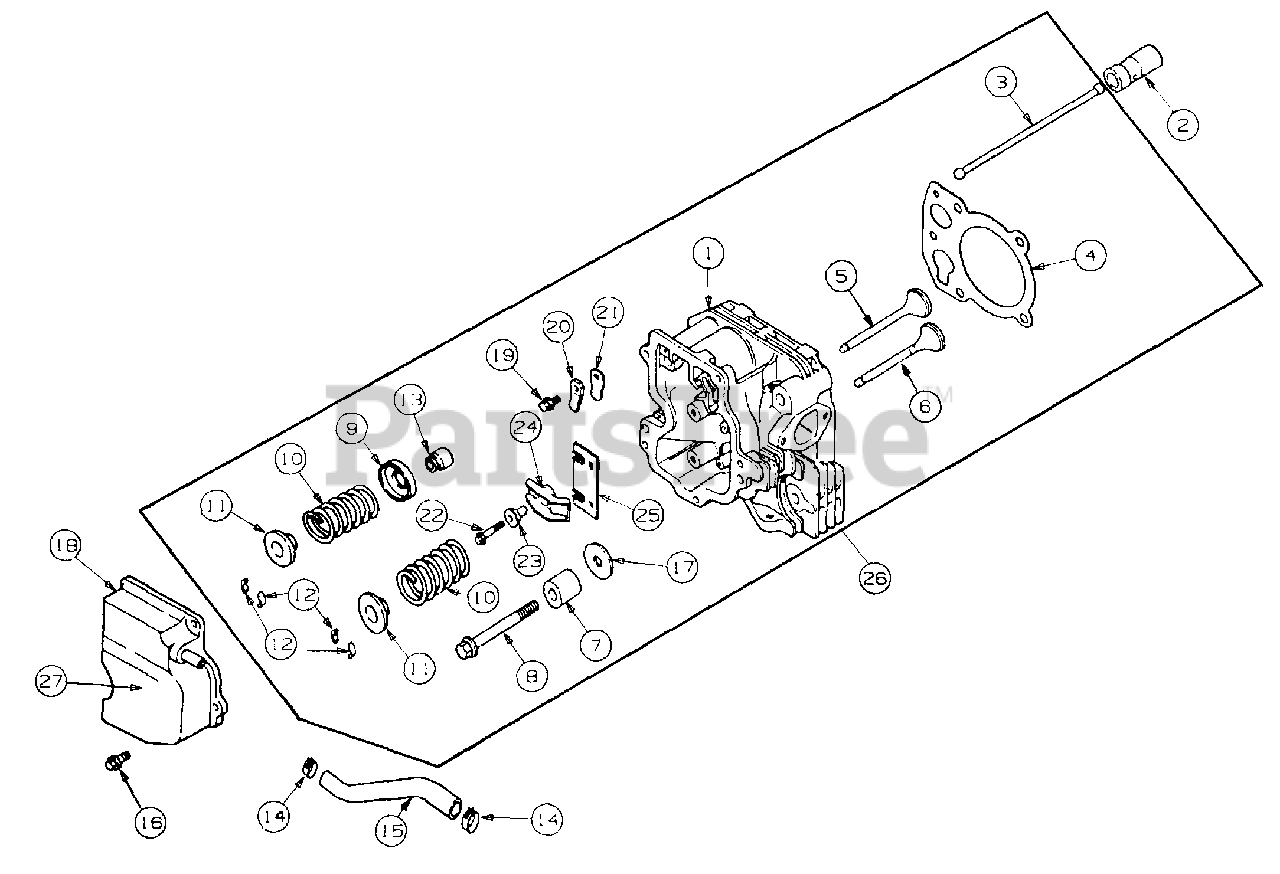

Cylinder Head, Valve, and Breather Parts Diagram

  • Title

1

Cub Cadet KH-12-318-09

Cylinder Head
(Superseded to KH-12-318-19)

$

$

Not available

2

Cub Cadet KH-12-351-01

Lift, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-12-411-01

Rod, Push
(Superseded to KH-12-411-04-S)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-041-10

Gasket, Cylinder Head

$

$

Not available

5

Cub Cadet KH-12-017-01

Valve, Intake (Std)

$

$

Not available

Cub Cadet KH-12-017-02

Valve, Intake (.25)

$

$

Not available

6

Cub Cadet KH-12-016-01

Valve, Exhaust (Std)

$

$

Not available

Cub Cadet KH-12-016-02

Valve, Exhaust (.25)

$

$

Not available

7

Cub Cadet KH-12-112-13

Spacer, Head Bolt Exhaust Port

$

$

Not available

8

Cub Cadet KH-12-086-15

Screw, Cyl Head, M10 X 1.5 X 81
(Superseded to KH-20-086-02-S)

$3.99

$

In Stock, Qty 12

0

9

Cub Cadet KH-235011

Retainer, Spring
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-089-01

Spring, Intake Valve
(Superseded to KH-12-089-34-S)

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 3 left!

0

12

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 8

0

13

Cub Cadet KH-24-032-05

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

15

Cub Cadet KH-12-326-03

Hose, Breather

$

$

Not available

16

Cub Cadet KH-M-0645020

Screw, Valve Cover, M6 X 1.0 X 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-12-468-05

Washer

$

$

Not available

18

Cub Cadet KH-12-096-07

Cover, Valve w/Nipple
(Superseded to KH-12-755-102-S)

$86.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-M-545010

Screw, Breather Reed Ret, M5 X 0.8 X 10
(Superseded to KH-M-0545010)

$

$

Not available

20

Cub Cadet KH-12-018-01

Retainer, Breather Reed
(Superseded to KH-66-018-04-S)

$4.99

$

In Stock, only 4 left!

0

21

Cub Cadet KH-12-402-02

Reed, Breather

$

$

Not available

22

Cub Cadet KH-M-640034

Screw, Rocker Arm, M6 X 1.0 X 34
(Superseded to KH-M-0640034)

$

$

Not available

23

Cub Cadet KH-24-194-01

Pivot, Rocker Arm
(Superseded to KH-12-755-74)

$

$

Not available

24

Cub Cadet KH-24-186-03

Arm, Rocker

$

$

Currently unavailable

25

Cub Cadet KH-12-146-13

Plate, Guide
(Superseded to KH-12-755-74)

$

$

Not available

26

Cub Cadet KH-12-755-60

Kit, Cylinder Head
(Superseded to KH-12-755-81)

Note: (Includes Ref No. 1, 3 thru 13, 17 & 19 thru 25)

$

$

Not available

27

Cub Cadet KH-12-113-70

Graphic, OHV Engine

$

$

Not available
