4814 R (556C463M100) - Cub Cadet Walk-Behind Mower (SN: 495637 & Above) Fuel System Parts Diagram

Walk-Behind Mower

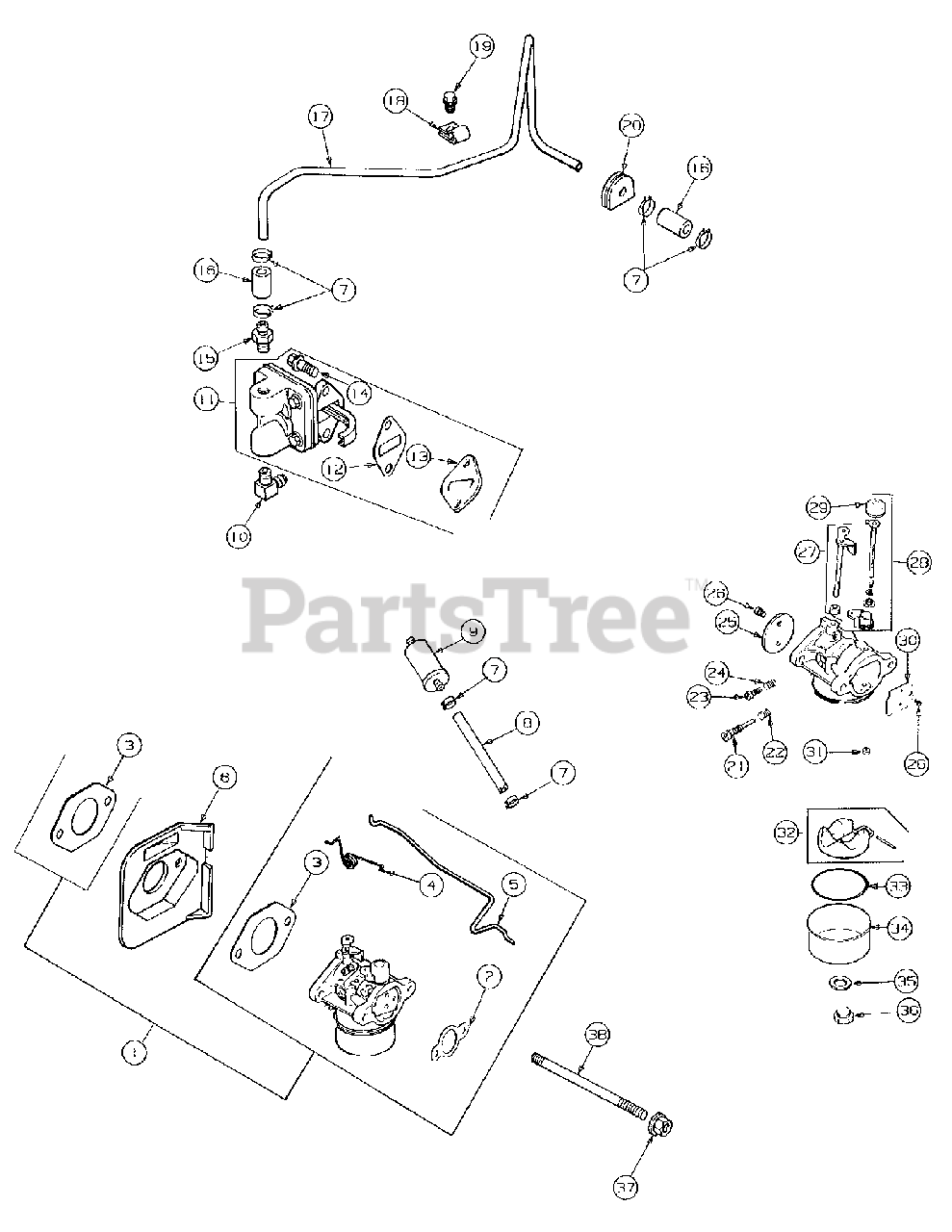

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-12-853-20

Kit, Carburetor
(Superseded to KH-12-853-139-S)

Note: (Incl. Ref No 2-5)

$269.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-12-041-02

Gasket, Air Cleaner

$2.99

$

In Stock, Qty 5

0

3

Cub Cadet KH-12-041-01

Gasket, Carburetor

$2.49

$

In Stock, Qty 14

0

4

Cub Cadet KH-12-089-23

Spring, Choke Return

$

$

Not available

5

Cub Cadet KH-12-078-07

Linkage,Choke

$

$

Currently unavailable

6

Cub Cadet KH-12-265-01

Deflector, Heat
(Superseded to KH-12-265-08-S)

$9.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-X-426-9

Clamp, Fuel Line
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-25-353-02

Line, Fuel 3''

$

$

Not available

9

Cub Cadet KH-25-050-03

Filter, Fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-155-02

Connector, 90 Deg

$

$

Not available

11

Cub Cadet KH-12-559-01

Kit, Fuel Pump
(Superseded to KH-12-559-02-S)

Note: (Incl.Ref No. 12, 13 & 14)

$48.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-25-041-09

Gasket, Fuel Pump
(Superseded to KH-25-041-10-S)

$3.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-12-112-05

Spacer, Fuel Pump

$

$

Not available

14

Cub Cadet KH-SM-0645020

Screw, Fuel Pump Mtg
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-X-380-1

Connector, Straight
(Superseded to KH-25-326-03-S)

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-12-353-01

Line, Fuel, 1-1/4''
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-12-123-01

Line, Fuel

$

$

Not available

18

Cub Cadet KH-12-154-01

Clamp, Fuel Line

$

$

Not available

19

KH-M-545-010

Screw, Fuel Line Connecting

$

$

Not available

20

Cub Cadet KH-12-313-01

Grommet

$

$

Not available

21

Cub Cadet KH-12-368-03

Needle Idle Fuel Adj.

$

$

Not available

22

Cub Cadet KH-12-0589-09

Spring, Idle Fuel

$

$

Currently unavailable

23

Cub Cadet KH-12-086-04

Screw, Idle Speed Adj.

$

$

Not available

24

Cub Cadet KH-12-089-09

Spring, Idle Speed

$

$

Not available

25

Cub Cadet KH-12-146-03

Plate, Throttle

$

$

Not available

26

Cub Cadet KH-25-086-27

Screw, Throttle & Choke Plate

$

$

Not available

27

Cub Cadet KH-12-144-09

Shaft, Throttle w/Lever & Seal

$

$

Not available

28

Cub Cadet KH-12-757-11

Kit, Choke Shaft Repair

$

$

Not available

29

Cub Cadet KH-12-173-06

Cap, Choke Lever

$

$

Not available

30

Cub Cadet KH-12-146-10

Plate,Choke

$

$

Not available

31

Cub Cadet KH-12-337-07

Jet,Main

$

$

Not available

32

Cub Cadet KH-12-757-02

Kit, Float

$

$

Not available

33

Cub Cadet KH-12-041-05

Gasket, Bowl

$

$

Not available

34

Cub Cadet KH-12-104-01

Bowl, Fuel

$

$

Not available

35

Cub Cadet KH-12-041-06

Gasket, Bowl Ret Screw
(Superseded to KH-25-041-03)

$

$

Not available

36

Cub Cadet KH-12-086-05

Screw, Fuel Bowl

$

$

Not available

37

Cub Cadet KH-SM-0641060

Nut, Carburetor, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 8

0

38

Cub Cadet KH-M-0629122

Stud, Carburetor,M6 x 1.0 x 110

$

$

Not available

Cub Cadet KH-12-755-36

Kit, High Altitude

Note: Not shown

$

$

Not available

Cub Cadet KH-12-757-01

Kit, Carburetor Repair

Note: Not shown

$

$

Not available
