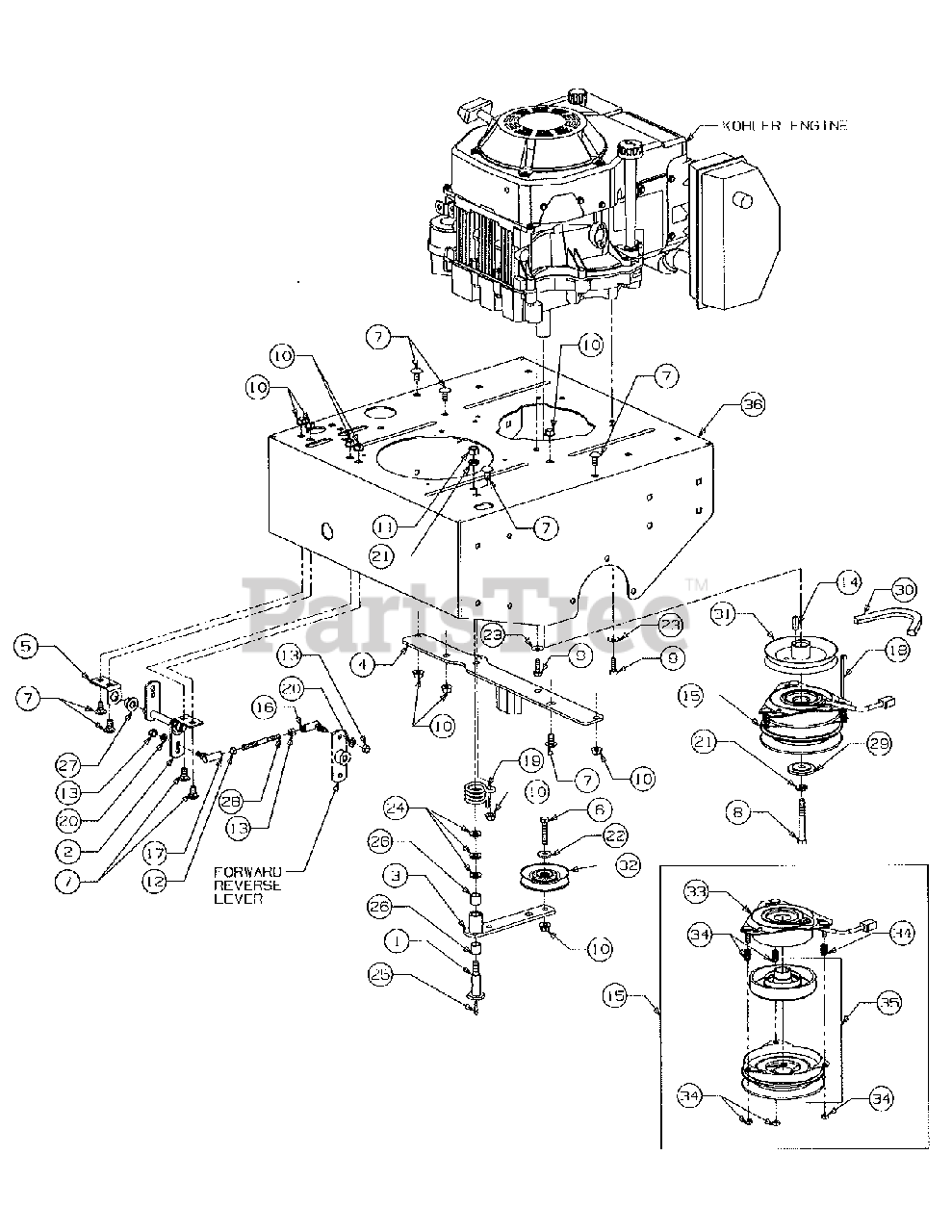

4814 R (555C463M100) - Cub Cadet Walk-Behind Mower (SN: 495637 & Above) Engine Deck Assembly Parts Diagram

Walk-Behind Mower

Engine Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 738-3108

Bolt, Shoulder
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

2

Cub Cadet 603-0155

Lever, F/R Control

$

$

Not available

3

Cub Cadet 603-0209

Arm, Ass'y Idler

Note: (Incl.2 of Ref No. 26)

$

$

Not available

4

Cub Cadet 603-0292

Retainer, PTO Clutch

$

$

Not available

5

Cub Cadet 703-2425

Bracket,Lever Angle

$

$

Not available

6

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-15 x 1.75 Lg Gr5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 x .75 Lg Gr5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3205

Screw, Hex Cap,M10 x 1.5 x 80mm Lg

$

$

Not available

9

Cub Cadet 710-3206A

Screw, Hex Cap, M8 x 1.25 x 25mm Lg

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3019

Nut, Hex, 7/16-14 Gr5

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-3045

Nut, Hex Jam, 5/16-24 LH Thread
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-3057

Nut,Hex, 5/16-24 Gr5
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

14

Cub Cadet 714-0128

Key Square, 1/4 x 1.0 Lg

$4.99

$

In Stock, Qty 6

0

15

Cub Cadet 717-3389

Clutch Ass'y PTO
(Superseded to 917-3389)

$642.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 723-3011

Ball Joint, 5/16-24
(Superseded to 923-3011)

$37.99

$

In Stock, only 1 left!

0

17

Cub Cadet 723-3012

Ball Joint, 5/16-24 LH Thread
(Superseded to 923-3012)

$42.99

$

In Stock, only 1 left!

0

18

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

20

Cub Cadet 736-0119

Washer, Lock 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0171

Washer, Lock 7/16

$4.49

$

In Stock, Qty 5

0

22

Cub Cadet 736-0206

Washer Special, .378 x 1.00 x .125 Thk
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060 Thk

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-3015

Washer, FLat, .469 x .872 x .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

25

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

26

Cub Cadet 741-0305

Bearing Sleeve

$

$

Not available

27

Cub Cadet 741-0324

Bearing, Hex FLange
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

28

Cub Cadet 747-3170

Rod Control

$

$

Not available

29

Cub Cadet 750-3106

Spacer, Clutch

$35.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 754-0244

Belt, Transmission 1/2 x 40.0 Lg
(Superseded to 954-0244)

$39.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 756-3060

Pulley, Engine
(Superseded to 756-3060A)

$97.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 756-3068

Pulley, V-Idler

$

$

Not available

33

Cub Cadet 759-3694

Field Ass'y
(Superseded to 959-3694)

$303.99

$

In Stock, only 1 left!

0

34

Cub Cadet 759-3697

Mounting Accessories

Note: Hex Nuts & Springs

$

$

Not available

35

Cub Cadet 759-3739

Kit, Armature and Rotor
(Superseded to 959-3739)

$

$

Not available

36

Cub Cadet 759-3767

Deck w/Graphics, Engine Mtg

$

$

Not available

Cub Cadet 777-1585A

Graphic Warning

Note: not shown

$

$

Not available
