4814 R (555C463M100) - Cub Cadet Walk-Behind Mower (SN: 495637 & Above) Deck Spindle Assembly Parts Diagram

Walk-Behind Mower

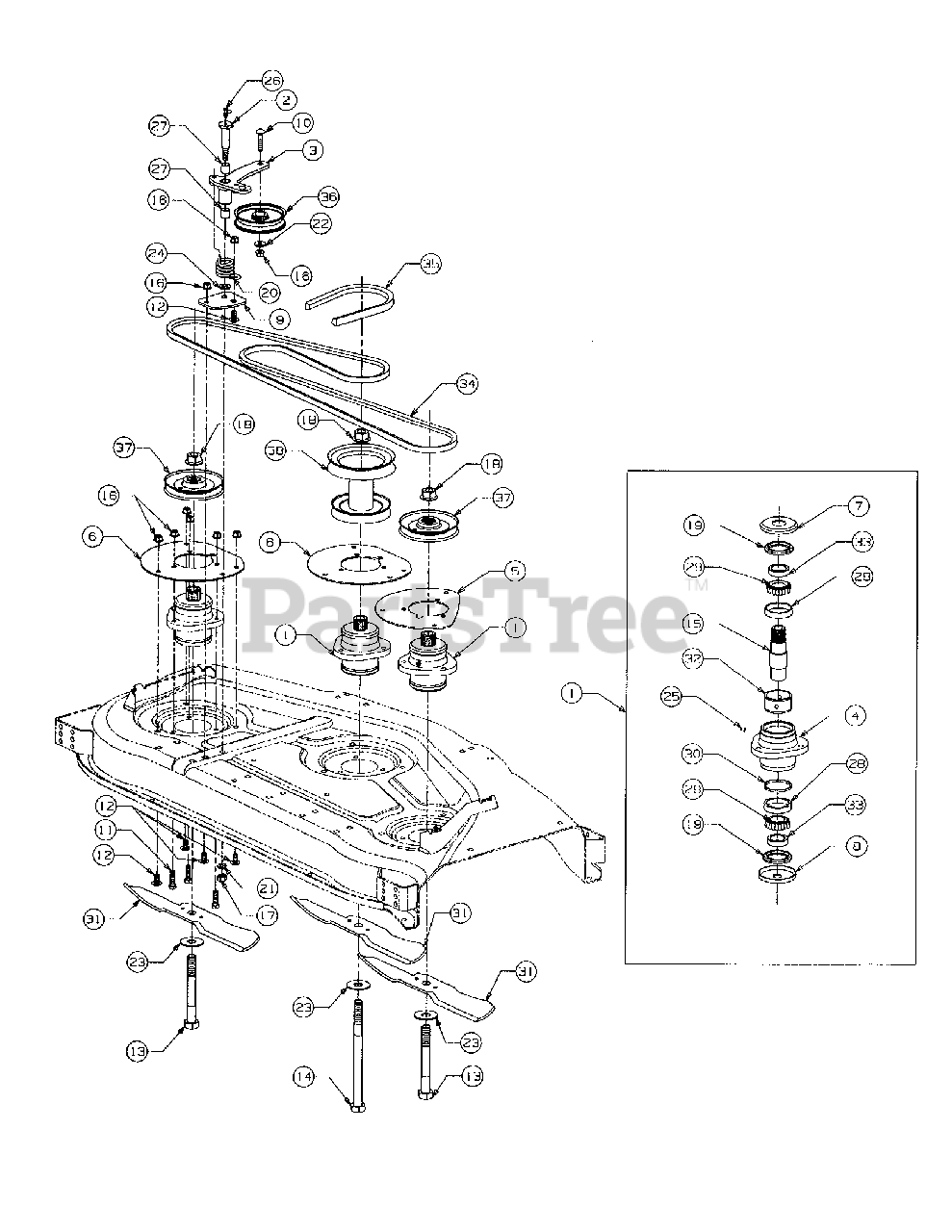

Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0043

Spindle Assembly, Complete

$

$

Not available

2

Cub Cadet 738-3102

Bolt, Shoulder

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet 603-0105

Arm, Assembly Idler

Note: (Incl. Ref No. 27 Qty 2)

Variations

Cub Cadet 603-0105-0498

ARM ASSEMBLY, IDLER - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 619-3022

Housing, Spindle

$

$

Not available

5

Cub Cadet 703-2178

Plate, RH Cover
(Superseded to 703-2178-0637)

Variations

Cub Cadet 703-2178-0637

COVER PLATE (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-2179

Plate, Cover

$

$

Not available

7

Cub Cadet 703-2184

Cup, Top Spindle

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2185

Cup, Bottom Spindle
(Superseded to 703-2185-0637)

Variations

Cub Cadet 703-2185-0637

Spindle Cup, Bottom - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-2475

Plate, Idler Mtg

$

$

Not available

10

Cub Cadet 710-0560

Bolt, Carriage 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-3005

Screw, Hex Cap 3/8-16 x 1.25 Gr 5

$3.99

$

In Stock, Qty 10

0

12

Cub Cadet 710-3178

Bolt, Sht Nk Carriage, 3/8-16 x .75 Gr 5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3252

Bolt, Hex Hd Blade, 3/4-16 x 6.0

$

$

Not available

14

Cub Cadet 710-3253

Bolt, Hex Hd Blade, 3/4-16 x 9.50

$

$

Not available

15

Cub Cadet 711-3342

Shaft, Blade Spindle

$

$

Not available

16

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3019

Nut, Hex 7/16-14 Gr 5

$6.99

$

In Stock, only 1 left!

0

18

Cub Cadet 712-3078

Nut, Hex Flange 3/4-16

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet 721-3038

Seal, Oil
(Superseded to 921-0385)

$27.99

$

In Stock, only 2 left!

0

20

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

21

Cub Cadet 736-0171

Washer, Lock 7/16

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 736-0206

Washer, Spec .378 x 1.0 x .125 Thk
(Superseded to 936-0206)

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-3014

Washer, Flat .781 x 2.0 x .105 Thk

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 736-3015

Washer, Flat .469 x .875 x .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

26

Cub Cadet 737-3004

Fitting, Lube 90Deg, 1/4-28 Tapper Thd

$11.99

$

In Stock, Qty 6

0

27

Cub Cadet 741-3063

Bearing, Sleeve

$17.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 741-3050

Cup, Bearing
(Superseded to 941-3050)

$23.99

$

In Stock, only 2 left!

0

29

Cub Cadet 741-3051

Cone, Bearing
(Superseded to 941-3051)

$48.99

$

In Stock, only 2 left!

0

30

Cub Cadet 741-3052

Spacer, Bearing
(Superseded to 941-3052)

$

$

Not available

31

Cub Cadet 742-3019

Blade, Mower, 16.5
(Superseded to 759-3825)

$35.99

$

In Stock, only 3 left!

0

31

Cub Cadet 759-3677

Blade, Mower, Hard Coated 16.5
(Superseded to 759-3842)

$59.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 742-3025

Blade, Mower, Hi-Lift 16.5
(Superseded to 759-3826)

$46.99

$

In Stock, Qty 9

0

32

Cub Cadet 750-3073

Spacer, Bearing Cup

$

$

Not available

33

Cub Cadet 750-3082

Ring, Seal

$

$

Not available

34

Cub Cadet 754-3053

Belt, Spindle A-Sect X 107.3
(Superseded to 954-3053)

$54.99

$

In Stock, Qty 8

0

35

Cub Cadet 754-3066

Belt, PTO, B-Sect x 62.04
(Superseded to 954-3066)

$61.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 756-3005

Pulley, Flat Idler

$45.99

$

In Stock, Qty 20+

0

37

Cub Cadet 756-3058

V-Pulley, 4.65 OD

$

$

Not available

38

Cub Cadet 756-3059

Pulley, Deck 5.07 OD & 5.75 OD
(Superseded to 956-3059)

$

$

Not available
