4814 R (555C463M100) - Cub Cadet Walk-Behind Mower (SN: 495637 & Above) Blower Housing & Baffles Parts Diagram

Walk-Behind Mower

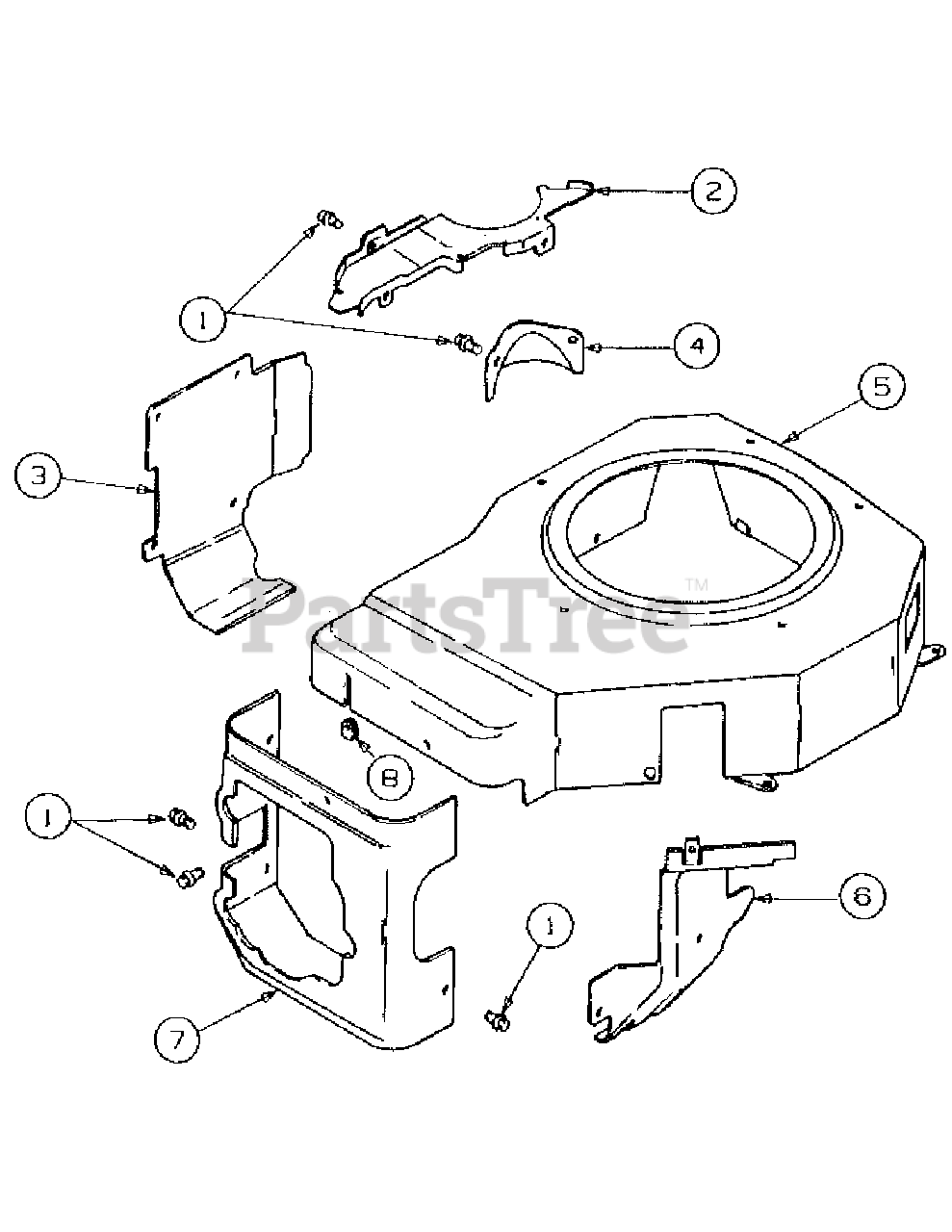

Blower Housing & Baffles Parts Diagram

  • Title
1

Cub Cadet KH-M-545010

Screw, Mounting, M5 x 0.8 x 10
(Superseded to KH-M-0545010)

$

$

Not available

2

Cub Cadet KH-12-146-07

Plate, Blower Housing

$

$

Not available

3

Cub Cadet KH-12-063-01

Baffle, Cylinder Barrel
(Superseded to KH-12-063-19-S)

$

$

Not available

4

Cub Cadet KH-12-096-05

Cover, Starter

$

$

Not available

5

Cub Cadet KH-12-027-03

Housing, Blower

$

$

Not available

6

Cub Cadet KH-12-063-05

Baffle, Carburetor

$

$

Not available

7

Cub Cadet KH-12-063-03

Baffle Cylinder Head
(Superseded to KH-12-063-08)

$

$

Not available

8

Cub Cadet KH-12-313-03

Grommet, Blower Housing

$

$

Not available

Cub Cadet KH-12-113-31

Decal, Horsepower

Note: not shown

$

$

Not available
