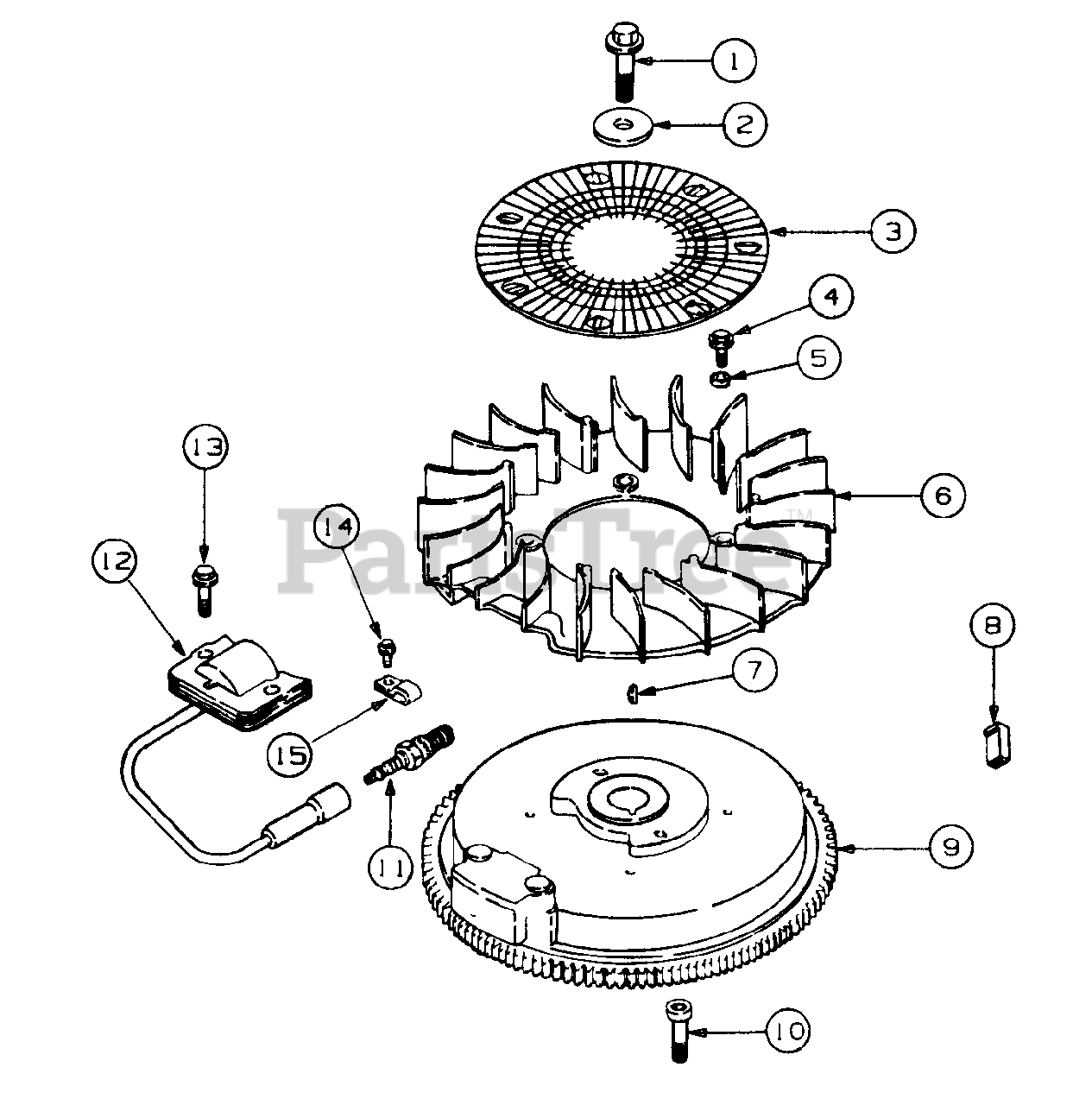

4814 R (555C462M100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Ignition/Electrical Parts Diagram

Walk-Behind Mower

Ignition/Electrical Parts Diagram

  • Title

1

Cub Cadet KH-12-086-14

Screw, Flywheel Mounting
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

2

Cub Cadet KH-12-468-03

Washer, Flywheel Screw

$

$

Not available

3

Cub Cadet KH-12-162-03

Screen, Grass

$

$

Not available

4

Cub Cadet KH-M-0639016

Screw, Fan Mounting
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, Qty 6

0

5

Cub Cadet KH-12-112-01

Spacer, Fan
(Superseded to KH-25-086-47)

$

$

Not available

6

Cub Cadet KH-12-157-02

Fan
(Superseded to KH-12-157-03-S)

$

$

Not available

7

Cub Cadet KH-X-42-15

Key

$

$

Not available

8

Cub Cadet KH-277563

Connector

$

$

Not available

9

Cub Cadet KH-12-025-17

Flywheel Assy

$

$

Currently unavailable

10

Cub Cadet KH-X-67-98

Screw, Hex Wash Hd
(Superseded to KH-25-086-110-S)

$3.49

$

Usually ships in 2-5 days

0

11

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

12

Cub Cadet KH-12-584-02

Module, Ignition
(Superseded to KH-12-584-05)

$

$

Not available

13

Cub Cadet KH-SM-0545020

Screw, Ignition Module, M5 X 0.8 X 20

$

$

Not available

14

Cub Cadet KH-M-545010

Screw, Lead Clip
(Superseded to KH-M-0545010)

$

$

Not available

15

Cub Cadet KH-X-728-1

Clip, Lead

$

$

Not available

Cub Cadet KH-12-518-01

Lead, Ground to Kill, White

Note: (18 gauge - 19" fully insulated & uninsulated push on tabs)

$

$

Not available
