4814 R (555C462M100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Cylinder Head, Valve, And Breather Parts Diagram

Walk-Behind Mower

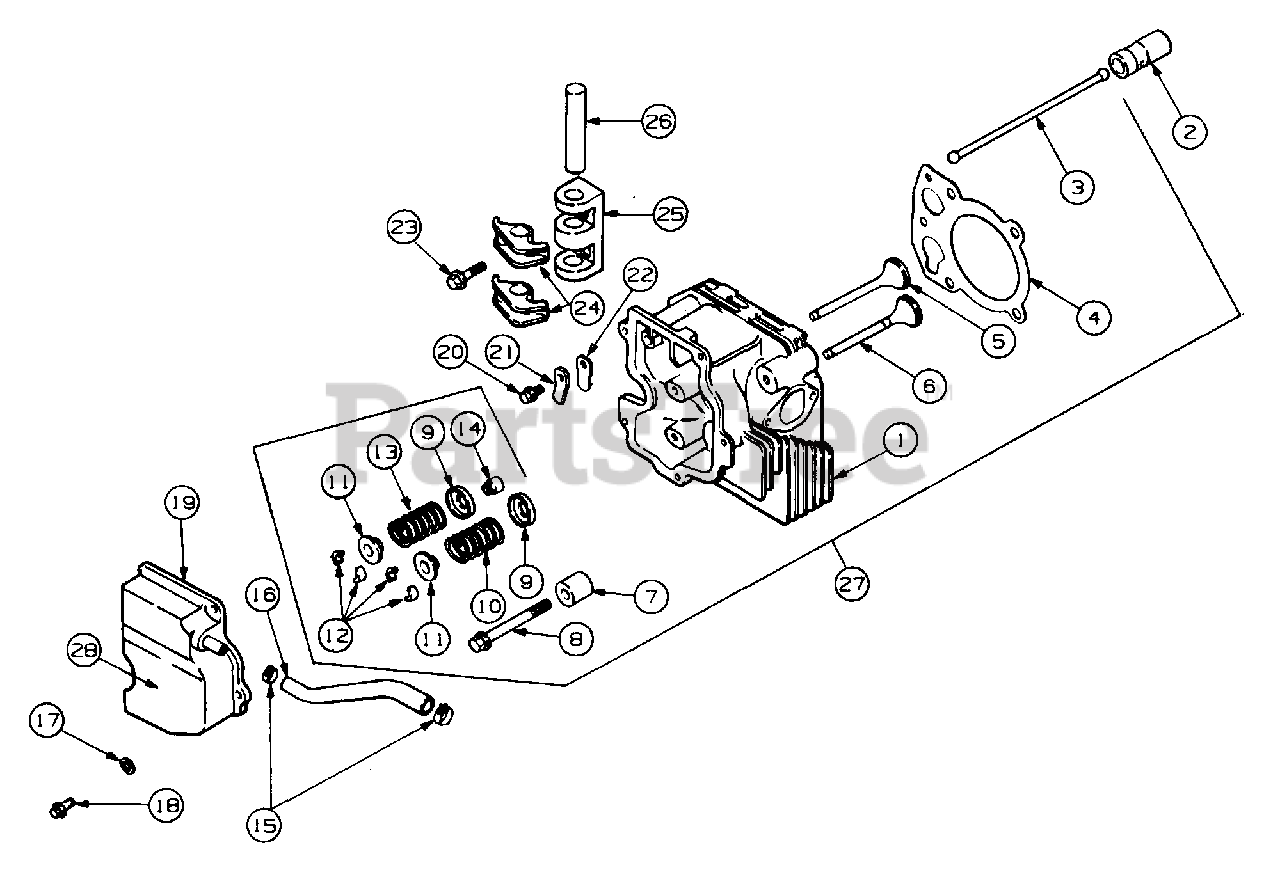

Cylinder Head, Valve, And Breather Parts Diagram

  • Title
1

Cub Cadet KH-12-318-01

Cylinder Head
(Superseded to KH-12-755-81)

$

$

Not available

2

Cub Cadet KH-12-351-01

Lift, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-12-411-01

Rod, Push
(Superseded to KH-12-411-04-S)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-12-041-08

Gasket, Cylinder Head
(Superseded to KH-12-041-08-S)

$20.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-12-017-01

Valve, Intake (Std)

$

$

Not available

Cub Cadet KH-12-017-02

Valve, Intake (.25)

$

$

Not available

6

Cub Cadet KH-12-016-01

Valve Exhaust (Std)

$

$

Not available

Cub Cadet KH-12-016-02

Valve Exhaust (.25)

$

$

Not available

7

Cub Cadet KH-12-112-13

Spacer, Head Bolt Exhaust Port

$

$

Not available

8

Cub Cadet KH-12-036-15

Screw, Cyl Head, M10 X 1.5 X 81

$

$

Currently unavailable

9

Cub Cadet KH-52-018-01

Retainer, Spring
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-12-089-15

Spring, Exhaust Valve

$

$

Not available

11

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 3 left!

0

12

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 7

0

13

Cub Cadet KH-12-089-01

Spring, Intake Valve
(Superseded to KH-12-089-34-S)

$10.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-12-032-02

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

16

Cub Cadet KH-12-326-03

Hose, Breather

$

$

Not available

$

$

Not available

18

Cub Cadet KH-M-0645020

Screw, Valve Cover, M6 X 1.0 X 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

19

Cub Cadet KH-12-096-07

Cover, Valve w/Nipple
(Superseded to KH-12-755-102-S)

$86.99

$

Usually ships in 2-5 days

0

20

KH-M-s45010

Screw, Breather Reed Ret, M5 X 0.8 X 10

$

$

Not available

21

Cub Cadet KH-12-018-01

Retainer, Breather Reed
(Superseded to KH-66-018-04-S)

$4.99

$

In Stock, only 4 left!

0

22

Cub Cadet KH-12-402-01

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet KH-SM-0642025

Screw, Rocker Bridge, M6 X 1.0 X 25
(Superseded to KH-M-642025-S)

$2.49

$

In Stock, only 1 left!

0

24

$

$

Not available

25

Cub Cadet KH-12-126-05

Bridge, Rocker Arm

$

$

Not available

26

Cub Cadet KH-12-144-03

Shaft, Rocker Arm

$

$

Not available

27

Cub Cadet KH-12-755-02

Kit, Cylinder Head (Includes Ref No. 1, 3 thru 14 & 23 thru 26)
(Superseded to KH-12-755-81)

$

$

Not available

28

Cub Cadet 777-1700

Graphic, OHV Engine

$

$

Currently unavailable
