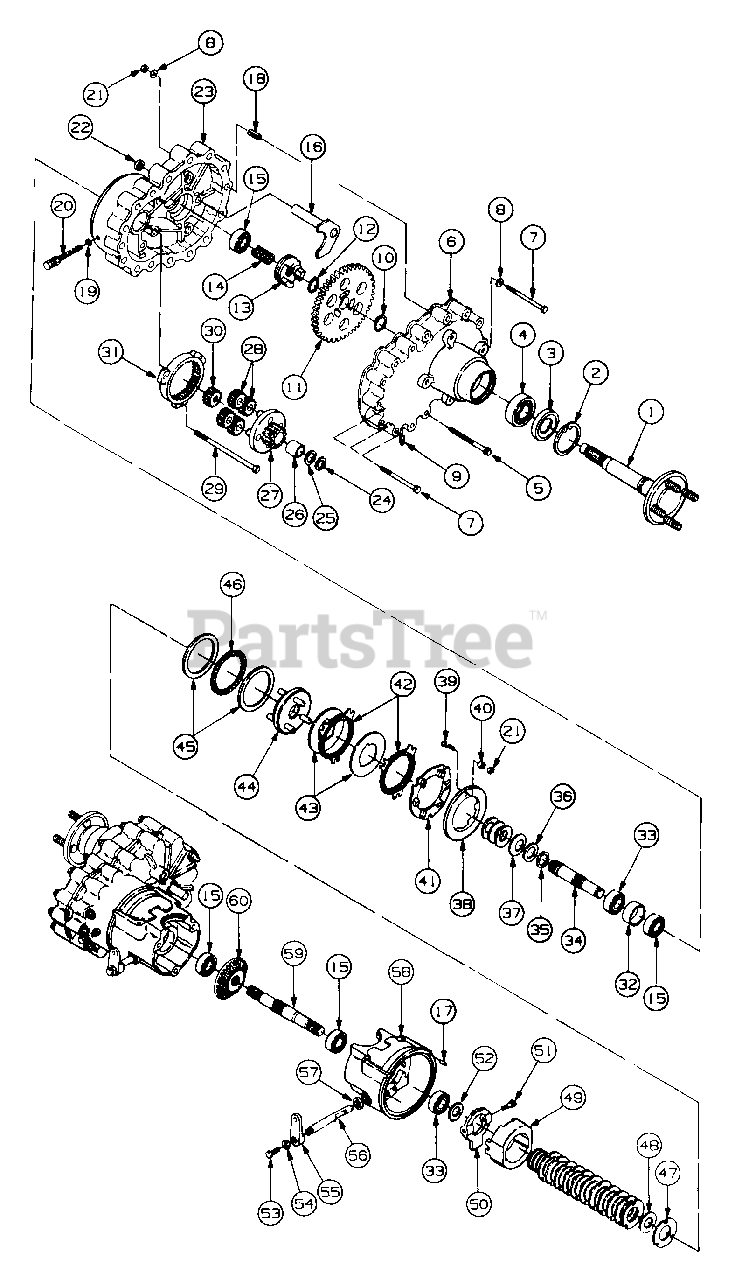

4814 R (554C462M100) - Cub Cadet Walk-Behind Mower (SN: 457900 - 460859) Transmission Parts Diagram

Walk-Behind Mower

Transmission Parts Diagram

  • Title

1

Cub Cadet 618-3063

Axle Assy

$

$

Not available

2

Cub Cadet 716-3015

Ring, Inverted Retainer

$11.99

$

In Stock, only 3 left!

0

3

Cub Cadet 721-3020

Seal, Oil
(Superseded to 921-3020A)

$12.99

$

In Stock, Qty 20+

0

4

Cub Cadet 741-3033A

Bearing
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

5

Cub Cadet 710-1206

Screw, Hex Wash Hd Tapp 1/4-20 x 2.31 Lg

$7.49

$

In Stock, Qty 6

0

6

Cub Cadet 619-3018

Housing, RH Outer Reduction
(Superseded to 619-3018B)

$

$

Not available

Cub Cadet 619-3020

Housing, LH Outer Reduction
(Superseded to 619-3020B)

Note: (Not shown)

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz tube

$70.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-1058

Screw, Hex Cap, 1/4-20 x 4.0 Lg

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0463

Washer, Flat, .25 x.62

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet 737-3053

Plug, Magnetic, 1/2-14 NPTF

$

$

Not available

10

Cub Cadet 716-3018

Ring, External Retainer

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 717-3365

Gear, Axle Bull

$

$

Not available

12

Cub Cadet 716-3023

Ring, Retainer, 7/8 Shaft

$

$

Not available

13

Cub Cadet 718-3034

Collar, Drive

$

$

Not available

14

Cub Cadet 732-3092

Spring, Compression, 1.095 OD x 1.75 Lg

$

$

Not available

15

Cub Cadet 741-0919

Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

16

Cub Cadet 611-3002

Shaft Assy, Neutral

$

$

Currently unavailable

17

Cub Cadet 715-3044

Pin, Dowel, 3/16 Dia x.87 Lg

$

$

Not available

18

Cub Cadet 715-3038

Pin, Slotted Spring, 7/16 x 1.0 Lg

$

$

Not available

19

Cub Cadet 721-3050

O-Ring, .239 ID x .064 Thk

$3.49

$

In Stock, only 3 left!

0

20

Cub Cadet 618-3101

Bolt, Brake Adjuster

Note: (Includes Ref No. 19)

$

$

Not available

21

Cub Cadet 712-3055

Nut, Hex Top Lock, 114-20 GR5
(Superseded to 912-0291)

$

$

Not available

22

Cub Cadet 721-3043

Seal, Oil

$17.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 619-3021

Housing, RH Inner Reduction

$

$

Not available

Cub Cadet 619-3017

Housing, LH Inner Reduction

Note: (Not shown)

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz tube

$70.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 716-3075

Ring, Retainer

$

$

Not available

25

Cub Cadet 736-3113

Washer, Flat, .696 x 1.12 x .030 Thk

Note: (Shim to allow.05 end play)

$

$

Not available

26

Cub Cadet 741-3041

Bearing, Sleeve

$

$

Not available

27

Cub Cadet 618-3061

Carrier Assy
(Superseded to 918-3061A)

Note: (Includes Ref No. 26)

$

$

Not available

28

Cub Cadet 717-3380

Gear, Planet

$

$

Not available

29

Cub Cadet 710-3248

Bolt, Hex Patch Lock, 3/8-16 x 8.5 Lg GR5

Note: (Used on RH half only)

$19.99

$

In Stock, only 3 left!

0

Cub Cadet 710-3247

Bolt, Hex Patch Lock, 3/8-16 x 6.25 Lg GR5

Note: (Not shown) (Used on LH half only)

$

$

Not available

30

Cub Cadet 717-3379

Gear, Sun

$

$

Not available

31

Cub Cadet 717-3377

Gear, Ring

$

$

Not available

32

Cub Cadet 750-3075

Spacer, Bearing

$

$

Not available

33

Cub Cadet 741-3040

Bearing, Angular Contact
(Superseded to 941-3040)

$

$

Not available

34

Cub Cadet 711-3334

Shaft, Output

$

$

Not available

35

Cub Cadet 736-0454

Washer, Flat, .915 x 1.37 x AR .010 Thk
(Superseded to 936-0454)

Note: (Shim for spring height of .330/.340)

$

$

Not available

36

Cub Cadet 736-0265

Washer, Flat, .88 x 1.50 x AR .030 Thk

Note: (Shim for spring height of .330/.340)

$

$

Not available

37

Cub Cadet 736-3109

Washer, Spring, .882 x 1.77 x .049 Thk
(Superseded to 936-3109)

$

$

Not available

38

Cub Cadet 761-3035

Ramp, RH Brake

$

$

Not available

Cub Cadet 761-3026

Ramp, LH Brake

Note: (Not shown)

$

$

Not available

39

Cub Cadet 710-0206

Screw, Hex Cap, 1/4-20 x .88 Lg

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 750-0555

Spacer,.254 ID x.50 OD x .390 Lg

$

$

Not available

41

Cub Cadet 761-3034

Plate, RH Brake Adjustment

$

$

Not available

Cub Cadet 761-3029

Plate, LH Brake Adjustment

Note: (Not shown)

$

$

Not available

42

Cub Cadet 761-3021

Disc, Friction

$

$

Not available

43

Cub Cadet 761-3022

Disc, Brake

$

$

Not available

44

Cub Cadet 618-3062

Hub Assy, Drive

$

$

Not available

45

Cub Cadet 736-3110

Washer, Thrust, 3.0 x 3.75 x .125 Thk

$

$

Not available

46

Cub Cadet 741-3042

Bearing, Thrust, 3.0 x 3.75 x .078 THk

$

$

Not available

47

Cub Cadet 703-2188

Disk, Friction
(Superseded to 903-2188)

$

$

Not available

48

Cub Cadet 718-3022

Plate, Clutch

$

$

Not available

49

Cub Cadet 718-3019

Hub, Brake

$

$

Not available

50

Cub Cadet 718-3013

Arm, Brake Actuator
(Superseded to 718-3051)

$77.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-3246

Bolt, Shoulder

$

$

Not available

52

Cub Cadet 736-0351

Washer, Flat, .760 x 1.50 x .036 Thk

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0270

Washer, Belleville, .265 x .75 x .062 Thk

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 718-3027

Arm, Clutch/Brake

$

$

Not available

56

Cub Cadet 711-3337

Shaft, Clutch/Brake Actuator

$

$

Not available

57

Cub Cadet 721-3044

Seal, Oil
(Superseded to 721-0213)

$10.99

$

In Stock, Qty 15

0

58

Cub Cadet 619-3015

Housing, RH Clutch/Brake

$

$

Not available

Cub Cadet 619-3019

Housing, LH Clutch/Brake

Note: (Not shown)

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz tube

$70.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 711-3335

Shaft, Drive

$

$

Not available

60

Cub Cadet 717-3368

Gear, Bevel, 32T

$

$

Not available
